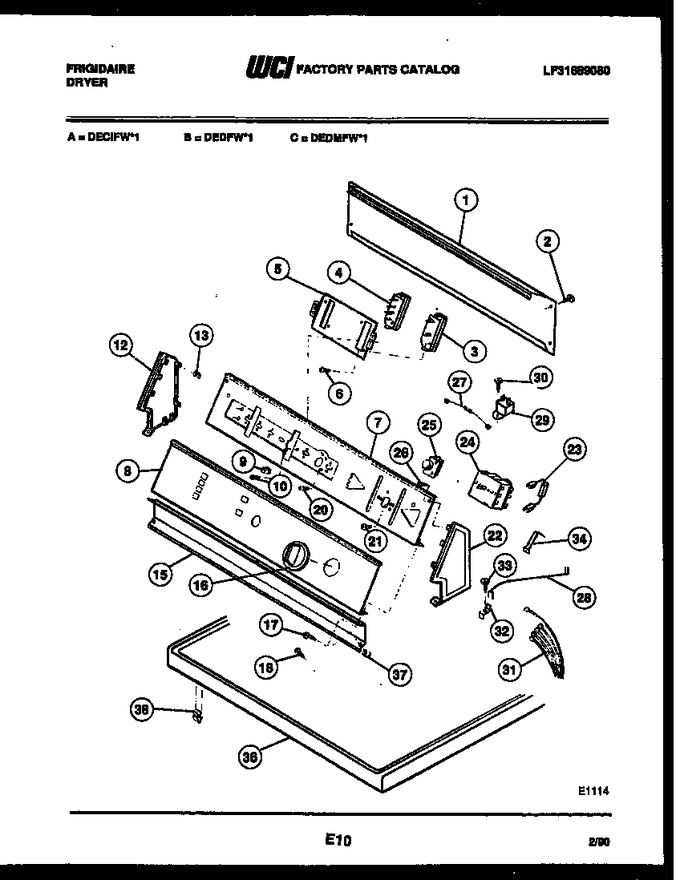

02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts
05 - Motor And Blower Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201322 | Back Cover |
|
- | |||||
| 2 | 3015671 | Screw (4) |
|
- | |||||
| 7 | 3201326 | Control Mounting Bracket |
|
- | |||||
| 8 | 3201329 | Escutcheon |
|
- | |||||
| 12 | 3205874 | End Cap - L.h. |
|
- | |||||
| 13 | 08014350 | Clip, End Cap (8) |
|
- | |||||
| 15 | 3206253 | Trimplate, Lower |
|
- | |||||
| 16 | 08015693 | Timer Knob And Indicator Knob |
|
- | |||||
| 17 | 08010782 | Screw (3) |
|
- | |||||
| 18 | 3205820 | Screw (2) |
|
- | |||||
| 20 | 08001544 | Screw |
|
- | |||||
| 21 | 3161188 | Screw (2) |
|
- | |||||
| 22 | 3205876 | End Cap - R.h. |
|
- | |||||
| 23 | 3281110 | Resistor |
|
- | |||||
| 24 | 3201382 | Timer |
|
- | |||||
| 25 | F135006-000 | Push To Start Switch |
|
- | |||||
| 26 | 08010789 | Screw |
|
- | |||||
| 27 | 3205877 | Resistor |
|
$ 51.14 | |||||
| 28 | 3201385 | Ground Wire |
|
- | |||||
| 31 | 3206009 | Harness |
|
- | |||||
| 32 | F079171-000 | Terminal |
|
- | |||||
| 33 | 08001689 | Screw |
|
- | |||||
| 34 | 08014349 | Ground Strap |
|
- | |||||
| 36 | 3205823 | Panel Top-white |
|
- | |||||
| 37 | 3281192 | Clip (2) |
|
- | |||||
| 38 | 3205821 | Spring Catch (2) |
|
Immediately | $ 35.44 | ||||
| 31A | 3281103 | Wire, Tie Harness (3) (non-illustrated) |
|
- |
