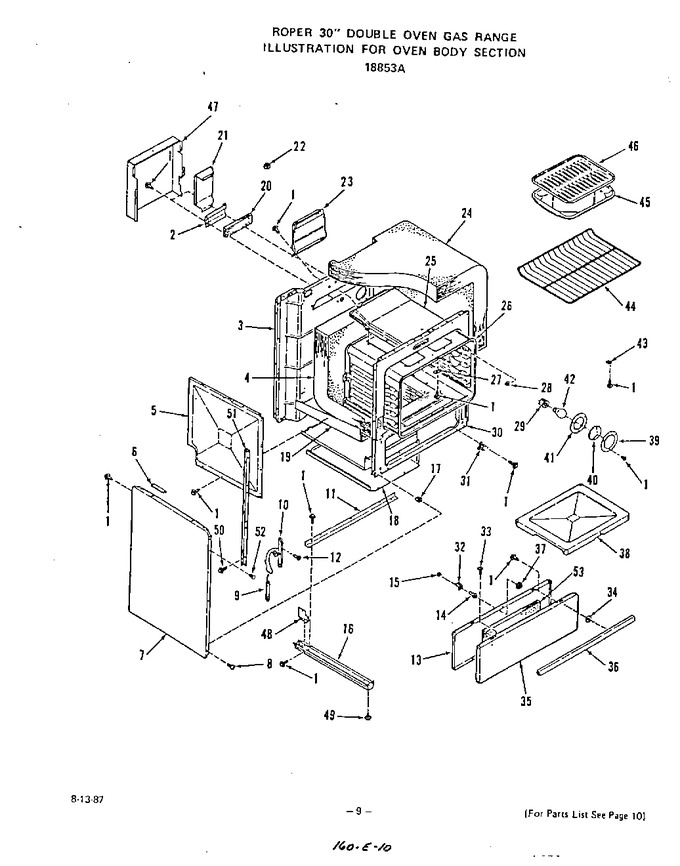

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 2 | 327809 | Wire Shield |
|
- | |||||
| 3 | 327294 | Main Back |
|
- | |||||
| 4 | 329146 | Insulation-oven Back & Bottom (1 Piece) |
|
- | |||||
| 5 | 331447 | Retainer-insulation (lt. Or Rt.) |
|
- | |||||
| 6 | 326914 | Spacer-main Top (2 Req) |
|
- | |||||
| 7 | 326055 | White |
|
- | |||||
| 7 | 326058 | Golden Wheat |
|
- | |||||
| 7 | 326059 | Almond |
|
- | |||||
| 7 | 327939 | Platinum |
|
- | |||||
| 7 | 327940 | Toast |
|
- | |||||
| 8 | 314124 | Screw 8abx5/8`` |
|
- | |||||
| 9 | 326965 | Spring-oven Door (lt. Or Rt.) |
|
- | |||||
| 10 | 326012 | Right |
|
- | |||||
| 10 | 326013 | Left |
|
- | |||||
| 11 | 327026 | Strap-main Back & Base |
|
- | |||||
| 12 | 331704 | Screw |
|
- | |||||
| 13 | 335065 | Lining-storage Drawer |
|
- | |||||
| 14 | 299784 | Strike |
|
- | |||||
| 15 | 335061 | Catch-strike |
|
- | |||||
| 16 | 327020 | Base W/leg Levelers (lt. Or Rt.) |
|
- | |||||
| 17 | 330031 | Expansion Nut Spacer (4 Req) (Replaces: 312605) |
|
Immediately | $ 14.48 | ||||
| 18 | 328491 | Storage Compartment |
|
- | |||||
| 19 | 331144 | Lower Insulation Retainer |
|
- | |||||
| 20 | 330166 | Insulation |
|
- | |||||
| 21 | 327808 | Wire Shield |
|
- | |||||
| 22 | 324257 | Bushing |
|
- | |||||
| 23 | 331564 | Flue Deflector |
|
- | |||||
| 24 | 329147 | Insulation-oven Top & Sides (1 Piece) |
|
- | |||||
| 25 | 327781 | Flue Box |
|
- | |||||
| 26 | 331568 | Oven Body |
|
- | |||||
| 27 | 304835 | Cover |
|
- | |||||
| 28 | 321539 | Clip-thermostat Bulb (2 Req) |
|
- | |||||
| 29 | 87883 | Holder-oven Light Bulb |
|
- | |||||
| 30 | 335072 | Front Frame |
|
- | |||||
| 31 | 335058 | Hinge |
|
- | |||||
| 32 | 335059 | Bracket-catch |
|
- | |||||
| 33 | 316849 | Screw-10-32x1/2`` |
|
- | |||||
| 34 | 302343 | Spacer |
|
- | |||||
| 35 | 327942 | Toast |
|
- | |||||
| 35 | 326291 | Almond |
|
- | |||||
| 35 | 327941 | Platinum |
|
- | |||||
| 35 | 326290 | Golden Wheat |
|
- | |||||
| 35 | 326287 | White |
|
- | |||||
| 36 | 292240 | Handle-storage Door |
|
- | |||||
| 37 | 239764 | Keps Nut 8-32 |
|
- | |||||
| 38 | 331563 | Oven Bottom |
|
- | |||||
| 39 | 229372 | Retainer-oven Light Lens |
|
- | |||||
| 40 | 114989 | Lens-oven Light |
|
- | |||||
| 41 | 229371 | Gasket-lens |
|
- | |||||
| 42 | DA96-01243C | Oven Light Bulb (Replaces: 111257) |
|
$ 144.00 | |||||
| 43 | 237762 | Cover Plate-thermostat Bulb |
|
- | |||||
| 44 | 326069 | Oven Rack (2 Req) |
|
- | |||||
| 45 | 331592 | Broiler Pan |
|
- | |||||
| 46 | 326297 | Broiler Pan Grid |
|
- | |||||
| 47 | 328487 | Shield-flue Deflector |
|
- | |||||
| 48 | 327022 | Left |
|
- | |||||
| 48 | 327024 | Right |
|
- | |||||
| 49 | 326125 | Leg Leveler (4 Req) |
|
- | |||||
| 50 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 51 | 327035 | Support-body Side (lt. Or Rt.) |
|
- | |||||
| 52 | 281160 | Accordian Rivet (lt. Or Rt.) |
|
- | |||||
| 53 | 303097 | Insulation |
|
- |
