SELECT A DIAGRAM

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


07 - Door

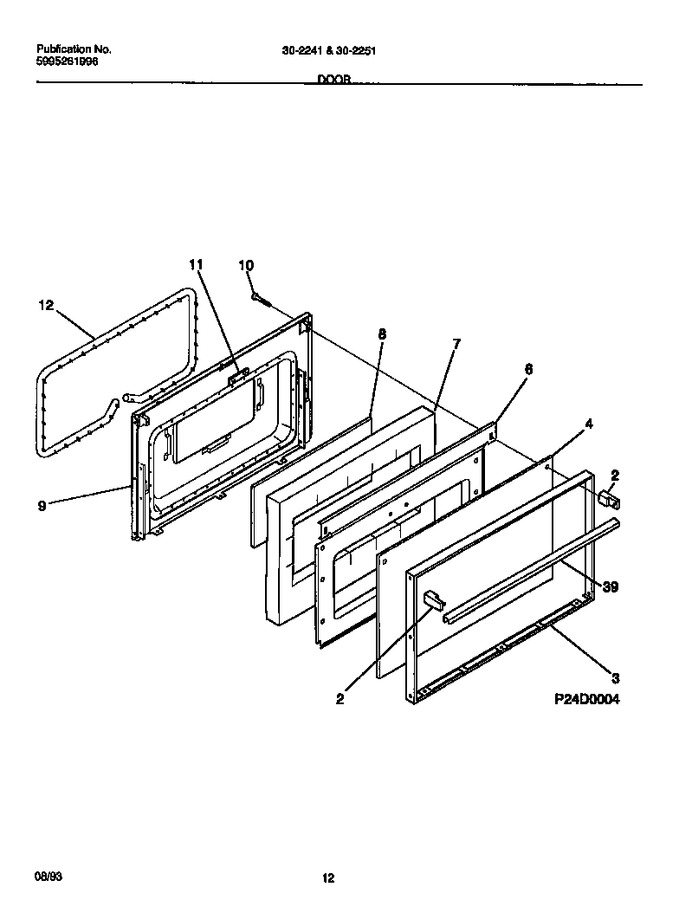

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3016755		End Cap, Black, (2)		Appelez-nous	-
3	316067802		Trim,oven Door ,black		Appelez-nous	-
4	3051152		Glass-oven Door, Black, Outer		Appelez-nous	-
6	5303210608		Shield-insulation, Black		Appelez-nous	-
7	5303210607		Insulation, Oven Door		Appelez-nous	-
8	316050303		Glass-oven Door, Inner		Appelez-nous	-
9	316066603		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
11	5303015373		Cover-door Liner		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	5303273127		Handle-door, Black, Oven		Appelez-nous	-
39A	316071600		Plate Warning/ Caution (ni)		Appelez-nous	-
39B	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1 (ni)		Appelez-nous	-
39C	5303269859		Screw, 8, 18 X 1/2, Black (ni)		Appelez-nous	-
39D	5303285179		Screw, Oven Door, Wafer Head, 8, 32(t) X 1/2 (ni)				$ 13.46
39E	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62

    View Diagram in Separate Window       Print Part List
