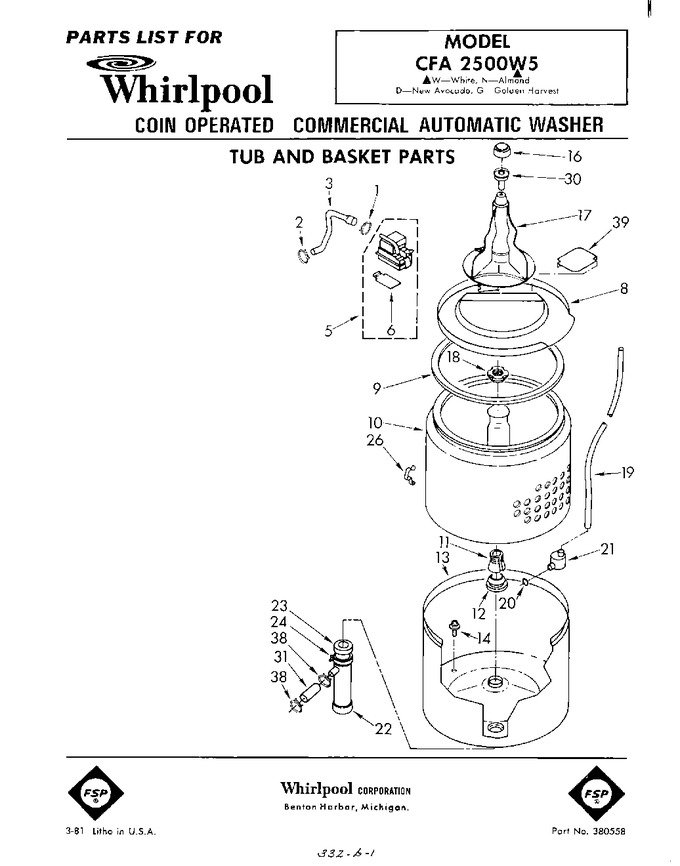

01 - Tub And Basket


02 - Top And Console


03 - Drive


04 - Water Pump


05 - Cabinet


06 - Gearcase


07 - Basket Drive


08 - Miscellaneous , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP596669		Clamp, Hose   (Replaces: 272847)			Immediately	$ 7.56
2	WP596669		Clamp, Hose   (Replaces: 272846)			Immediately	$ 7.56
3	356349		Hose, Water Inlet		Appelez-nous	-
5	366072		Inlet, Water		Appelez-nous	-
6	355584		Flapper		Appelez-nous	-
8	381971		Ring, Tub (includes Illus. 39)		Appelez-nous	-
9	359757		Seal, Tub Ring		Appelez-nous	-
10	358389		Basket		Appelez-nous	-
11	96384		Block, Drive				$ 32.89
12	W10814296		Gasket, Centerpost   (Replaces: 96690)			Immediately	$ 8.26
13	359590		Tub Assembly		Appelez-nous	-
14	WP358237		Screw & Washer, Tub (4)   (Replaces: 370571)			Immediately	$ 7.97
16	357787		Agitator Cap		Appelez-nous	-
17	363633		Agitator				$ 68.97
18	WP21366		Locknut   (Replaces: 21366)			Immediately	$ 8.00
19	WP353244		Hose, Pressure Switch   (Replaces: 355221)			Immediately	$ 53.94
20	351830		Seal				$ 5.84
21	360804		Air Dome Assembly		Appelez-nous	-
22	84091		Manifold Assembly		Appelez-nous	-
23	93553		Hose, Tub Outlet		Appelez-nous	-
24	9421321		Clip, Hose		Appelez-nous	-
26	359763		Clip, Tub Ring (4)		Appelez-nous	-
30	359192		Screw & Seal Assembly		Appelez-nous	-
31	DE81-06162A		Hose   (Replaces: 92231)				$ 78.75
38	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
39	357773		Harness, Timer		Appelez-nous	-
39	355852		Plate, Snubber		Appelez-nous	-
39	358732		Harness, Console		Appelez-nous	-
39	372065		Instructions, Installation		Appelez-nous	-
39	358132		Harness, Cabinet		Appelez-nous	-
