02 - Cabinet Parts


03 - Door Parts


04 - Door Parts


05 - Motor And Drive Parts

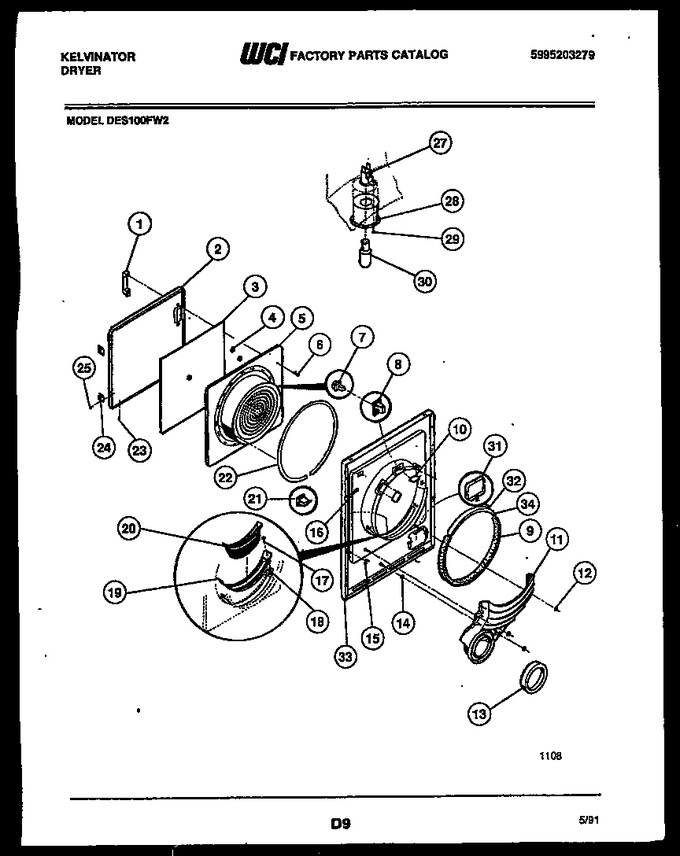

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303281053		Handle		Appelez-nous	-
2	3201203		Outer Door-white		Appelez-nous	-
3	5303281067		Heat Shield		Appelez-nous	-
4	3281058		Spacer (2)		Appelez-nous	-
5	3201206		Inner Door-white		Appelez-nous	-
6	5303281051		Screw				$ 4.52
7	5303207102		Door Strike			Immediately	$ 19.85
8	5366021400		Door-catch   (Replaces: 5303281055)			Immediately	$ 55.99
9	5303281049		Seal				$ 38.12
10	5303912549		Glide (3)		Appelez-nous	-
11	5308015173		Air Duct		Appelez-nous	-
12	3281089		Nut (3)		Appelez-nous	-
13	134417000		Seal   (Replaces: 5303281013)			Immediately	$ 9.22
14	3201209		Washer		Appelez-nous	-
15	5303281074		Clip Guide (4)				$ 18.27
16	3281045		Clip (4)		Appelez-nous	-
17	3281178		Screw (2)		Appelez-nous	-
18	3281061		Clip (2)				$ 2.73
19	5303281060		Lint Trap Frame		Appelez-nous	-
20	5303281059		Lint Trap		Appelez-nous	-
21	08006623		Door-switch		Appelez-nous	-
22	5303201210		Door Gasket				$ 45.68
23	3281176		Screw (2)		Appelez-nous	-
24	5303281050		Door Hinge (2)				$ 20.58
25	3281176		Screw (8)		Appelez-nous	-
27	5308015210		Receptacle				$ 61.40
28	5308015259		Light Holder				$ 54.32
29	5303281035		Screw		Appelez-nous	-
30	5308027430		Lamp				$ 18.85
31	3201212		Access Door-white		Appelez-nous	-
32	3281066		Screw		Appelez-nous	-
33	5303269965		Front Panel-white		Appelez-nous	-
34	3201264		Spacer				$ 7.77
4A	3201205		Spacer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
