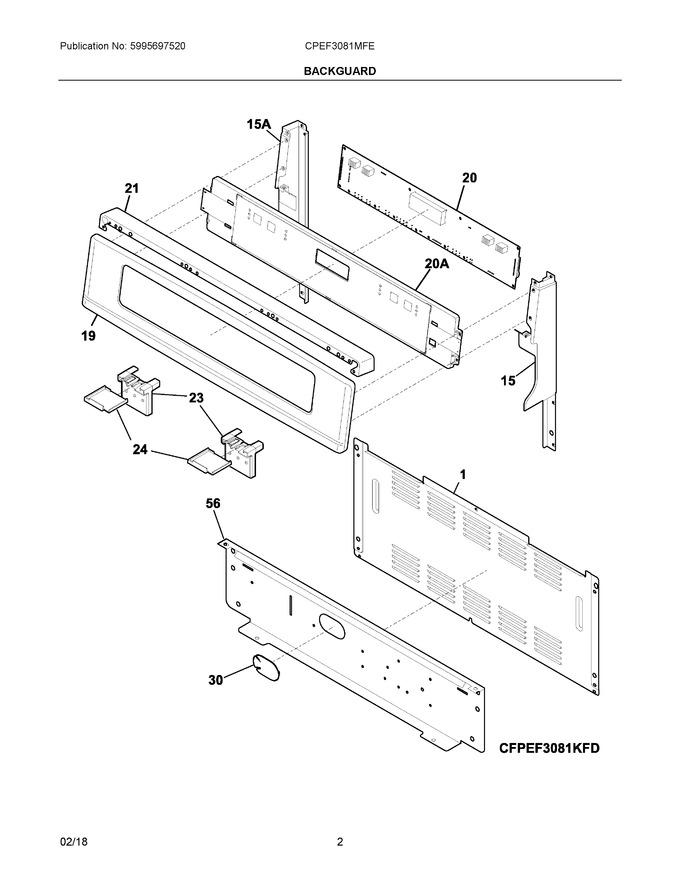

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield, Rear Wall				$ 70.04
15	316546702		Cap, Backguard, Black, Rh End				$ 52.55
19	316572402		Panel, Backguard, Br Alum				$ 339.36
20	316562016		Controller, Electronic, Es1000				$ 340.55
21	316546605		Cap, Backguard, Black, Top   (Replaces: 316546601)				$ 66.91
23	316573600		Bracket, Support, Bottom				$ 18.38
24	316574200		Bracket, Support, Top, Membrane				$ 17.64
30	316577600		Plug, Button, Oval, Harness				$ 14.89
56	316234045		Shield, Backguard, Black, Inner   (Replaces: 316234013)				$ 66.74
15A	316546703		Cap, Backguard, Black, Lh End				$ 64.47
20A	316549118		Membrane, Touch Control, Silver, Assembly				$ 524.79
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
