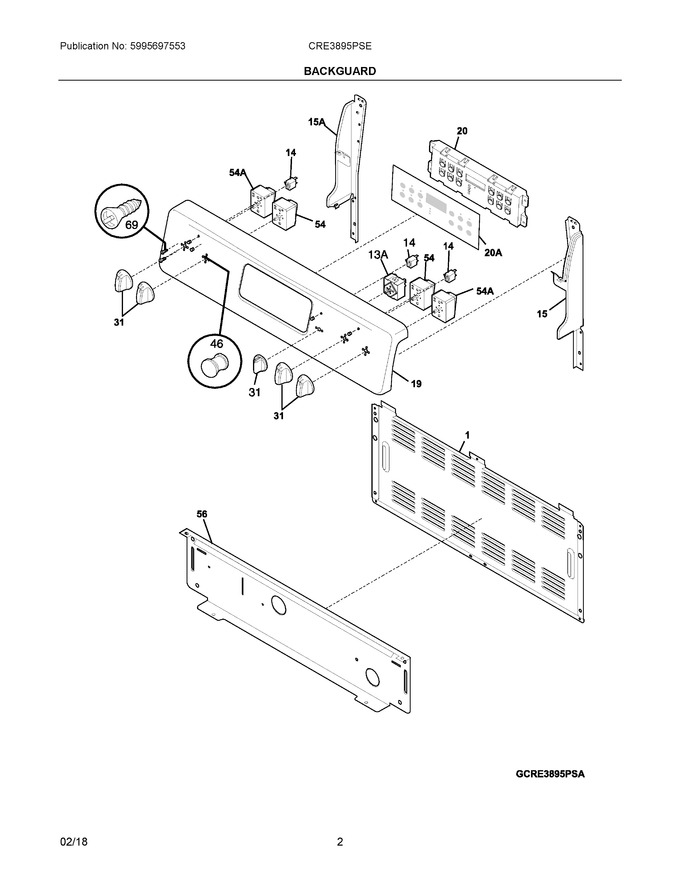

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 57.64
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15	316411405		Support, Backguard, Black, Rh				$ 83.95
19	316471540		Panel-backguard, Black		Appelez-nous	-
20	5304510064		Clock, Es330i			Immediately	$ 336.49
31	316223002		Knob, Control, Black			Immediately	$ 57.64
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
56	316234045		Shield, Backguard, Black, Inner   (Replaces: 316234013)				$ 66.74
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg   (Replaces: 73201-2580)				$ 3.12
13A	5304508926		Switch, Infinite, Warmer			Immediately	$ 84.18
15A	316411404		Support, Backguard, Black, Lh				$ 83.95
20A	316419345		Overlay, Clock, Black, Es330		Appelez-nous	-
54A	316238201		Switch, Infinite Radian, Dual			Immediately	$ 89.00
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
