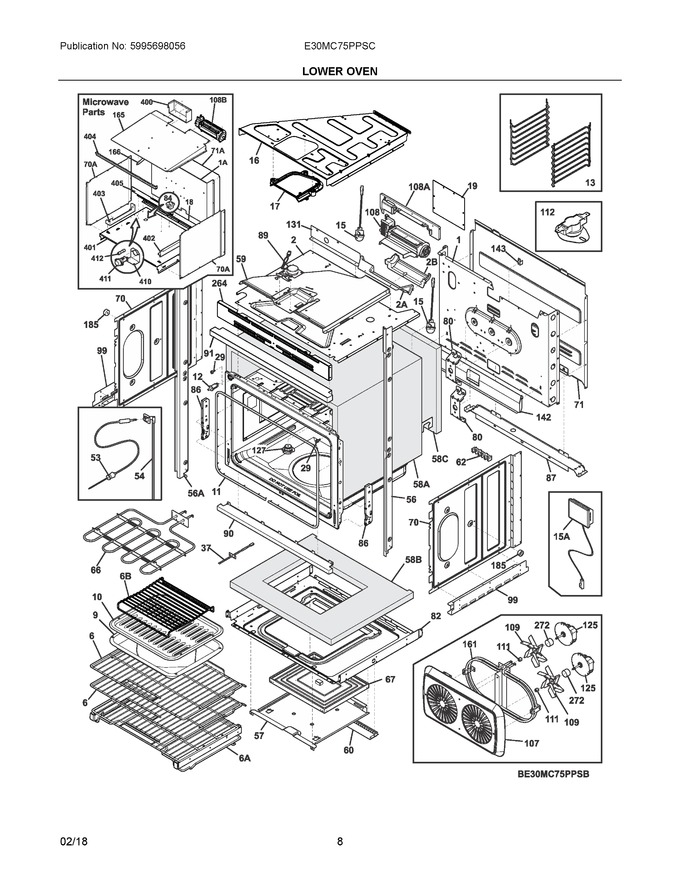

E30MC75PPSC | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	139017305	Panel, Main Back, Lower Oven	Appelez-nous	-
2	139028101	Shield, Insulation, Top, Lower Oven	Appelez-nous	-
6	808713913	Rack Assembly, Ladder, Cobalt, W/handle (Replaces: 808713914)			$ 143.87
9	316081901	Pan, Broiler, Cobalt Blue			$ 74.32
10	316082001	Insert, Broiler Pan, Cobalt Blue			$ 53.09
11	807545504	Seal, Oven Door, Gray			$ 37.16
12	808136601	Switch, Light, Door (Replaces: 318394802)		Immediately	$ 44.04
13	808713901	Ladder Assembly, Kit, Nickel, W/2 Ladders			$ 150.97
15	5304528790	Lamp Assembly, Round, Halogen, W/lens, W/bulb (Replaces: 139009000)		Immediately	$ 20.56
16	139024201	Duct, Cooling, Xflow	Appelez-nous	-
17	139038501	Duct, Suction Bypass, 2 Channel	Appelez-nous	-
18	5304503645	Shield, Fan	Appelez-nous	-
19	5304503412	Plate, Duct, Xflow	Appelez-nous	-
29	316517601	Bumper, Main Front, Cobalt Blue	Appelez-nous	-
37	5304504897	Sensor, Oven Temp Probe		Immediately	$ 48.13
53	5304503737	Probe, Meat Temp, Black			$ 99.33
54	139017203	Receptacle Assy, Meat Probe		Immediately	$ 153.09
56	808804403	Trim, Side, Black, Rh			$ 184.99
57	807988901	Panel, Service, Bake Element	Appelez-nous	-
59	139015700	Duct, Cooling, Lower Oven	Appelez-nous	-
60	807285601	Shield, Heat, Oven Bottom	Appelez-nous	-
62	5304409888	Terminal Block		Immediately	$ 26.69
66	5304521861	Element, Broil, 8 Pass, 4000w (Replaces: 139000900)		Immediately	$ 90.25
67	318601604	Element, Hidden Bake, 2000w (Replaces: 808650402)		Immediately	$ 260.38
70	139000601	Shield, Insulation, Sides, (2) (Replaces: 139000600)			$ 72.05
71	139020000	Shield, Rear Wire, Main Back			$ 99.23
80	139021101	Bracket, Support, Chassis/fan			$ 14.89
82	807988802	Shield, Insulation, Lower			$ 111.99
84	5304514360	Outlet, Electrical, Miniature, Black, W/harness	Appelez-nous	-
86	139026900	Receptacle, Hinge, Dual Spring			$ 32.61
87	139020100	Bracket, Cable Mtg.	Appelez-nous	-
89	139021302	Motor, Latch Assy., 2 Pole			$ 147.56
90	318903514	Trim, Oven Bottom, Stainless			$ 319.27
91	808804805	Trim, Decorative, Stainless, Middle			$ 255.15
99	318256201	Bracket, Side, Bottom, (2)			$ 56.70
107	139001502	Cover, Dual Fan, Cobalt, Convection			$ 80.00
108	139038301	Blower Assembly, Cooling, Cross Flow, W/baffle			$ 188.21
109	318398302	Blade, Fan, Convection (Replaces: 139009100)		Immediately	$ 29.11
111	316136600	Nut, Fan Retainer		Immediately	$ 19.13
112	5304494446	Switch, Thermal Cutoff, 145c			$ 43.24
125	139008502	Motor, Convection Fan			$ 139.48
127	5304538693	Tube Assembly, Vent, W/catalyst (Replaces: 139042600)		Immediately	$ 10.03
131	139022400	Cover, Center Rear, Cross Flow	Appelez-nous	-
142	139018000	Shield, Air Deflector, Main Back	Appelez-nous	-
143	318172904	Support, Wire	Appelez-nous	-
161	5304522063	Element, Convection, Dual, 2500w (Replaces: 139006600)			$ 132.71
165	318381740	Shield, Heat, Base	Appelez-nous	-
166	318577001	Deflector, Divider	Appelez-nous	-
185	318531800	Spacer, Oven Shield, (2)			$ 12.76
264	807804602	Trim, Vent, Black, Center			$ 172.94
272	139021700	Tube, Convection Fan			$ 17.72
400	318576901	Box, Cooling Duct	Appelez-nous	-
401	5304503654	Plate, Support, Microwave	Appelez-nous	-
402	318406714	Bracket, Attachment	Appelez-nous	-
403	318407603	Bracket, Attachment	Appelez-nous	-
404	5304503653	Trim, Top Vent, Black			$ 106.32
405	5304502990	Panel, Back Filler	Appelez-nous	-
410	318933901	Bracket, Fuse	Appelez-nous	-
411	318647300	Holder, Fuse		Immediately	$ 217.73
412	318647300	Fuse, 20 Amp		Immediately	$ 217.73
108A	139023900	Bracket, Fan Mtg., Cross Flow			$ 31.90
108B	318073038	Motor, Blower			$ 256.57
15A	139001800	Lamp Assembly, Halogen, 26" Harness, W/g9 40w Bulb			$ 124.22
1A	318259215	Back, Main, Upper Oven	Appelez-nous	-
2A	139015900	Shield, Fan, Cross Flow	Appelez-nous	-
2B	139038901	Housing, Fan, Air Diverter			$ 31.19
56A	808804404	Trim, Side, Black, Lh			$ 194.72
58A	139001700	Insulation, Oven Wrapper, Top & Sides	Appelez-nous	-
58B	807989001	Insulation, Oven Bottom			$ 102.78
58C	139021400	Insulation, Oven Back	Appelez-nous	-
6A	808713906	Glide Rack, Assembly, Cobalt, W/handle			$ 232.47
6B	318219500	Rack, Broiler Pan	Appelez-nous	-
70A	807119201	Panel, Side, (2)	Appelez-nous	-
71A	807119501	Panel, Back, Microwave	Appelez-nous	-
NI	316021109	Screw, 8-18 X 0.5, Chrome		Immediately	$ 27.50
NI	316021109	Screw, 8-18 X 0.5, Black (Replaces: 316021110)		Immediately	$ 27.50
NI	5304506955	Box & Wires Assy (Replaces: 318394443)			$ 174.43
NI	5304470882	Screw, Anti-tip, 8 - 5/8, Black, (2)			$ 13.46
NI	5304503650	Harness, Wiring, Main	Appelez-nous	-
NI	5303289910	Screw, Truss Sqdr, 8a X 1", 62*			$ 5.67
NI	807597603	Screw, Self Tapping, 8-18 X 11/32, (4)			$ 9.22
NI	318165800	Spacer, Glass, Foam			$ 17.72
NI	5304517285	Harness Assembly, Filter, Electrical, W/capacitors (Replaces: 5304500988)			$ 38.68
NI	5304503413	Harness, Wiring, Mdl Ads	Appelez-nous	-
NI	316021109	Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105)		Immediately	$ 27.50
NIA	316418900	Screw, Sims Lp, #8-32 X 5/16", Black			$ 14.18
NIA	5303288566	Screw, Tr Hd Sqd Ab, 8-18 X 0.25, (8)			$ 2.12
NIA	5304453707	Screw, 8-32 X 3/8 (Replaces: 5303311333)		Immediately	$ 15.92
NIA	318946500	Bulb, Halogen, G9, 25w, 120v		Immediately	$ 60.44
NIA	139022101	Insualtion, Noise Dampening	Appelez-nous	-
NIA	318579001	Bracket, Wire			$ 11.08
NIA	316001017	Screw, Ground Wire (Replaces: 316001003)			$ 3.03
NIA	318231870	Wiring Harness, Bake Element			$ 83.42
NIAA	318946400	Bulb, Halogen, G9, 40w, 120v		Immediately	$ 49.32
NIB	316205500	Nut, Hex Flange, 3/8 10-32			$ 11.34
NIB	5303288566	Screw, 8 X 1/4, (4) (Replaces: 5303323130)			$ 2.12
NIBA	316021119	Screw, Ab Nickel, 8-18 X 11/16	Appelez-nous	-
