SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Burner


04 - Body


05 - Door/drawer


06 - Wiring Diagram


07 - Wiring Diagram

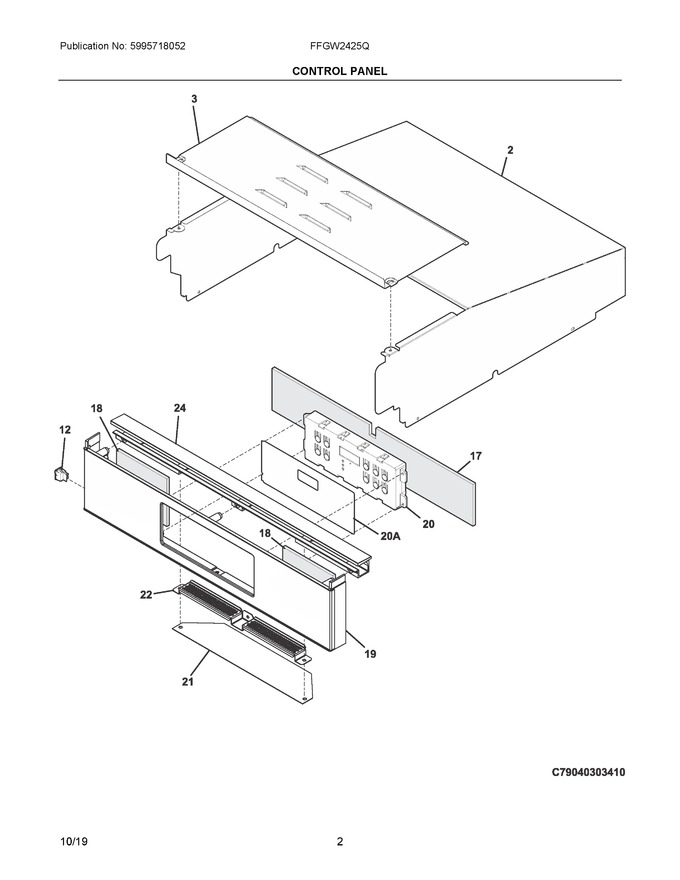

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	139029900		Cover, Wrapper, Top		Appelez-nous	-
3	139030902		Cover, Oven Top, Front		Appelez-nous	-
12	5304527841		Switch, Rocker, Black   (Replaces: 5304512726)			Immediately	$ 11.38
17	5304498101		Insualtion, Control Panel		Appelez-nous	-
18	808181801		Insulation, Control Panel, (2)		Appelez-nous	-
19	5304504311		Control Panel, Assembly, White/black, W/overlay		Appelez-nous	-
20	316557149		Clock/timer, Electronic, Es300/305		Appelez-nous	-
21	5304504256		Shield, Control, Upper		Appelez-nous	-
22	808752302		Trim, Vent Cover, Black, Top		Appelez-nous	-
24	139099502		Trim, Vent, Black, Control Panel		Appelez-nous	-
20A	316419137		Overlay, Clock, White, Es300			Immediately	$ 31.34
NI	5304504225		Screw, Plastite, 48 #7-18x12.7, (4)		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
