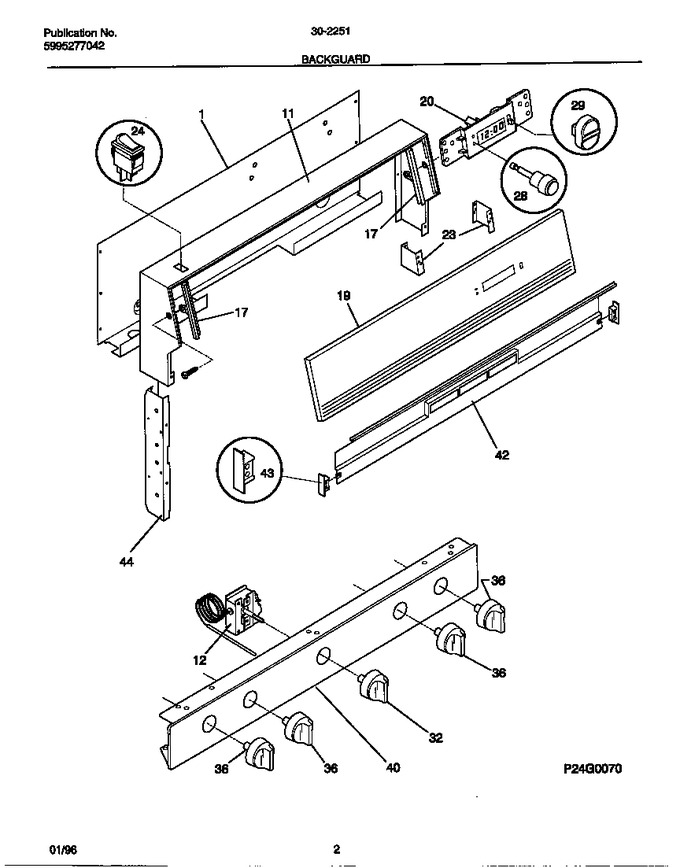

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316052803		Shield - Backguard, Rear Wall		Appelez-nous	-
11	316056600		Trim-wrapper		Appelez-nous	-
17	5303283987		Trim-glass Retainer, (2)		Appelez-nous	-
19	5303281645		Panel-control, Glass		Appelez-nous	-
20	5303272309		Clock/timer, Electronic		Appelez-nous	-
23	5303281646		Bracket-clock Mtg, (2)		Appelez-nous	-
24	5308015487		Switch, Oven Light, Rocker Type				$ 61.43
28	5303272306		Push Button, Clock Set, Black		Appelez-nous	-
29	5303272305		Button-selector, Clock/timer, Black				$ 38.80
32	5303281617		Knob-thermostat		Appelez-nous	-
36	3204869		Knob-top Valve, (4)		Appelez-nous	-
40	5303271189		Panel-manifold		Appelez-nous	-
42	5303281630		Trim-vent		Appelez-nous	-
43	5303283983		End Cap,backguard,(2)		Appelez-nous	-
44	5303283981		Bracket-backguard, (2)		Appelez-nous	-
*29040	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*29041	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*29042	5303295821		Harness-wiring, Backguard		Appelez-nous	-
12A	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
12B	5303291898		Insulator-thermostat (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
