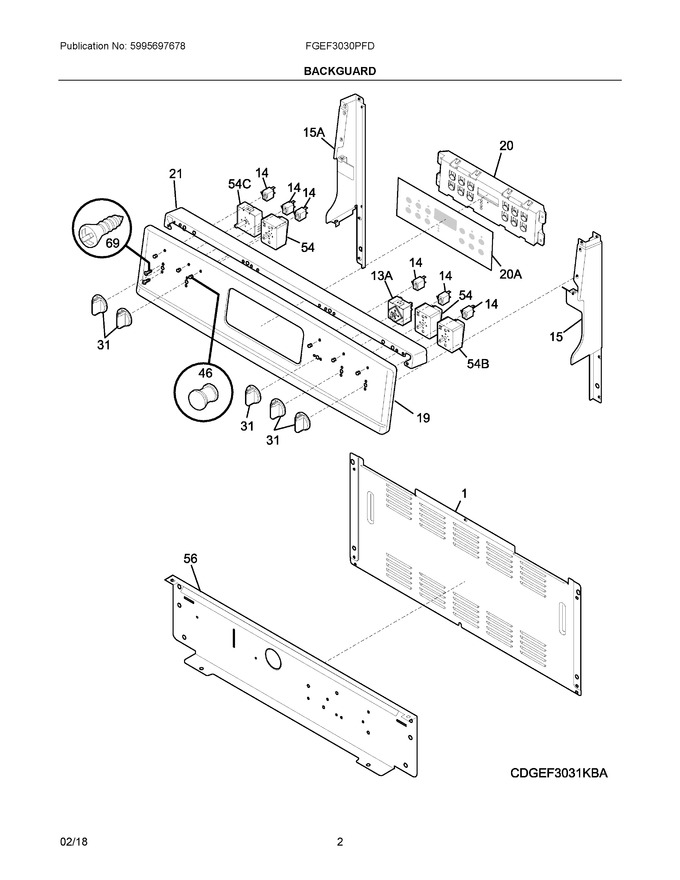

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316557600 | Shield, Rear Wall |
|
$ 70.04 | |||||
| 14 | 316022500 | Light/lamp, Indicator, Black, 125 V |
|
Immediately | $ 53.57 | ||||
| 15 | 316546710 | Cap, Backguard, Black, Rh End |
|
$ 98.52 | |||||
| 19 | 316572436 | Panel, Backguard, Stainless |
|
$ 260.35 | |||||
| 20 | 5304514213 | Clock Electronic, Es330 |
|
- | |||||
| 21 | 316546605 | Cap, Backguard, Black, Top |
|
$ 66.91 | |||||
| 31 | 316564402 | Knob, Control, Black, (5) |
|
$ 46.24 | |||||
| 46 | 316557300 | Lens-light/lamp, Indicator, Clear |
|
Immediately | $ 16.77 | ||||
| 54 | 316436000 | Switch, Control, Small Element (Replaces: 5304506424) |
|
Immediately | $ 80.34 | ||||
| 56 | 316234045 | Shield, Backguard, Black, Inner |
|
$ 66.74 | |||||
| 69 | 5303288565 | Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg (Replaces: 73201-2580) |
|
$ 3.12 | |||||
| 13A | 5304508926 | Switch, Infinite, Warmer |
|
Immediately | $ 84.18 | ||||
| 15A | 316546711 | Cap, Backguard, Black, Lh End |
|
$ 43.20 | |||||
| 20A | 316419339 | Overlay, Clock, Black, Es330 |
|
$ 48.20 | |||||
| 54B | 316436001 | Switch, Control, Large Element (Replaces: 5304506425) |
|
Immediately | $ 51.68 | ||||
| 54C | 316238201 | Switch, Infinite Radian, Dual |
|
Immediately | $ 89.00 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 |
