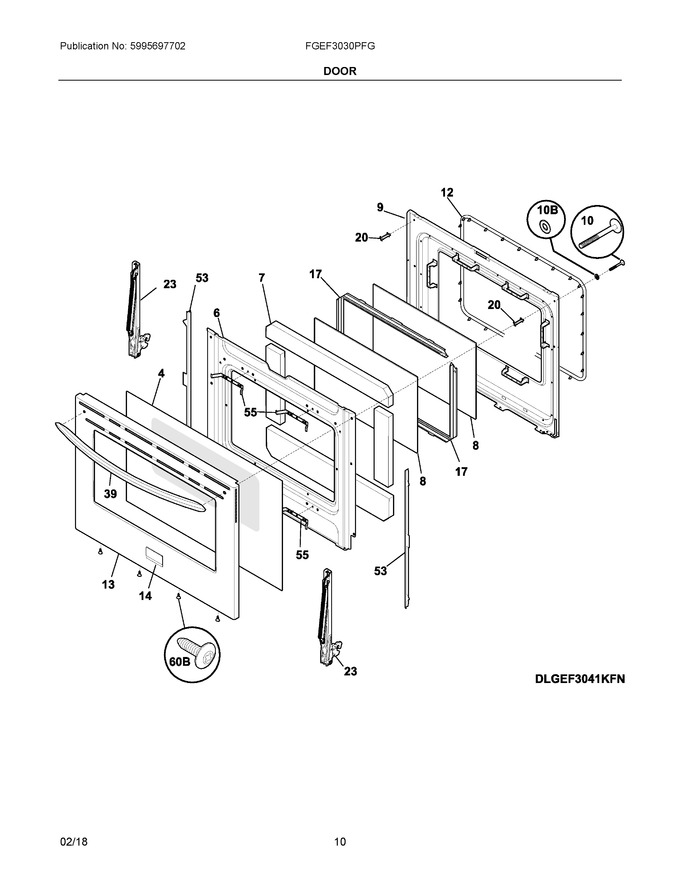

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452758		Glass, Oven Door, Black, W/foil   (Replaces: 316452719)			Immediately	$ 213.87
6	316406328		Shield-wool   (Replaces: 316406312)				$ 87.21
7	316405600		Insulation, Oven Door				$ 76.55
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 116.95
9	5304529999		Liner, Oven Door   (Replaces: 316423707)				$ 147.12
10	316433303		Screw, Handle Mtg., 10-24 X 1.75", (2)   (Replaces: 316439500)			Immediately	$ 31.17
12	316405000		Seal, Oven Door			Immediately	$ 179.17
13	316407922		Panel, Oven Door, Stainless, Outer				$ 100.38
14	316572700		Nameplate				$ 81.50
17	5304504811		Spacer, Glass			Immediately	$ 25.02
20	316284100		Spacer, Door Handle, (2)				$ 14.89
23	316575909		Hinge, Oven Door, Black			Immediately	$ 98.60
39	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554008)			Immediately	$ 168.44
53	5304532042		Shield, Door Filler, Black, (2)   (Replaces: 316408201)				$ 25.79
55	316408300		Bracket, Glass Support, (4)				$ 21.23
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316483102		Label, Anti-tip				$ 3.56
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
