SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

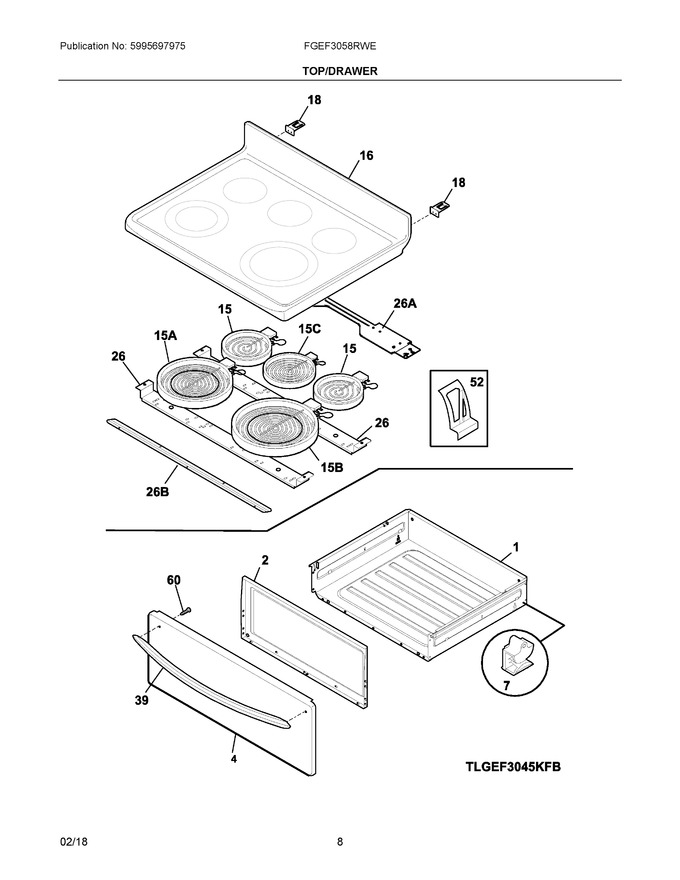

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 110.61
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 28.83
4	316403519		Panel, Drawer Front, White				$ 72.45
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 9.86
15	316538904		Lamp, Oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	807038639		Maintop, White, W/black Glass				$ 420.58
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
26	5304500986		Channel, Element Support, (2)				$ 41.68
39	316554001		Handle, Door/drawer, White				$ 182.02
52	316461700		Clip, Element Mtg				$ 12.05
60	5304507924		Screw, Handle Mtg., #10-24 X 2, (2)   (Replaces: 316439505)			Immediately	$ 16.48
15A	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
15A	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316282000)			Immediately	$ 90.14
15B	316282101		Element, Dual, 9/12", Surface, 1700/2700w, Dual Radiant			Immediately	$ 283.03
15C	5304521951		Element, Surface, Warmer   (Replaces: 5304509306)			Immediately	$ 64.46
26A	316498200		Bracket-support, Chassis, Aluminum				$ 52.33
26B	316607600		Bracket, Chassis Support, Front				$ 52.33
NI	5304511542		Harness, Surface Element				$ 80.09
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.28

    View Diagram in Separate Window       Print Part List
