SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Main Top


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram

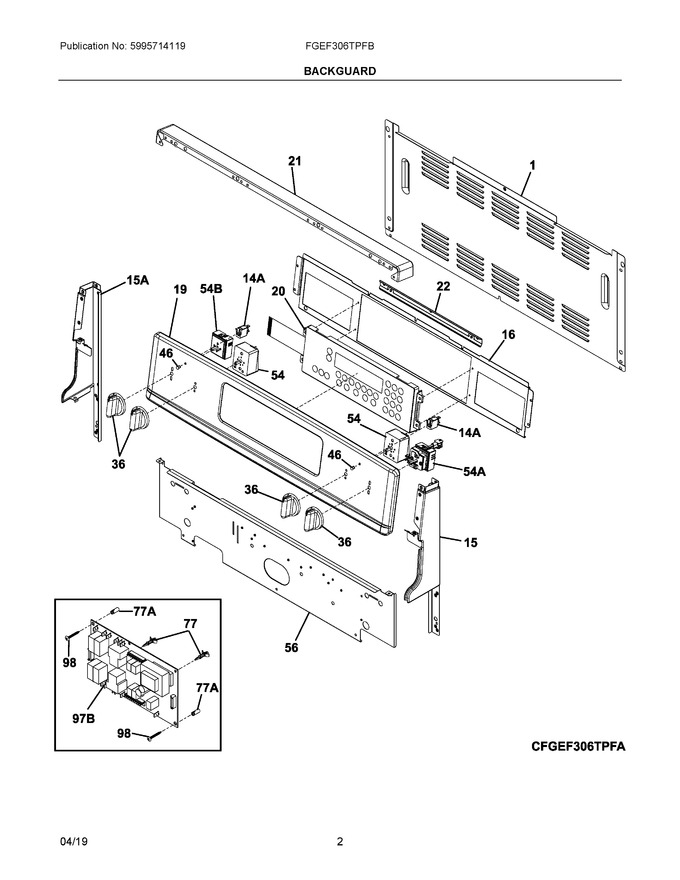

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield, Rear Wall				$ 70.04
15	807437109		End Cap, Backguard, Black, Rh				$ 31.66
16	318949700		Bracket, Timer Support		Appelez-nous	-
19	316572447		Panel, Backguard, Stainless				$ 256.86
20	139092900		Controller, Electronic, Black, W/membrane				$ 373.70
21	316546605		Cap, Backguard, Black, Top				$ 66.91
22	318573700		Bracket, Control Panel		Appelez-nous	-
36	316564407		Knob, Control, Stainless, (5)				$ 121.35
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
56	807246403		Shield, Backguard, Black, Inner		Appelez-nous	-
77	316247900		Spacer, Power Board				$ 44.65
98	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
14A	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15A	807437110		End Cap, Backguard, Black, Lh				$ 29.48
54A	5304490134		Switch, Infinite, Triple				$ 117.66
54B	316238201		Switch, Infinite Radian, Dual			Immediately	$ 89.00
77A	316114100		Spacer				$ 60.96
97B	316443939		Board, Relay, Dual Oven				$ 360.50
NI	318578352		Harness, Wiring, Communication				$ 172.15
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
