Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303010202 Screw Special Order $ 5.15

2 3201240 Burner Tube Assy Appelez-nous -
3 5303281136 Burner Assembly Appelez-nous -
4 5303281132 Screw (2) Appelez-nous -
5 5303281132 Screw (2) Appelez-nous -
6 3205701 Screw (2) Appelez-nous -
7 5303281138 Air Shutter (2) Appelez-nous -
8 5303281148 Nut (2) Appelez-nous -
9 5303281147 Valve - Gas Appelez-nous -
10 5303281137 Harness Appelez-nous -
11 5303212837 Union Male Connection Appelez-nous -
12 5303207407 Angle Valve Appelez-nous -
13 5303281132 Screw (3) Appelez-nous -
14 5303281145 Bracket Appelez-nous -
15 3281126 Clip Appelez-nous -
16 5303010202 Screw (1) Special Order $ 5.15

17 3281134 Screw (1) Appelez-nous -
18 08015271 Pipe Appelez-nous -
19 5303010202 Screw(2) Special Order $ 5.15

20 5303281150 Screw Appelez-nous -
21 3201209 Washer Appelez-nous -
22 5303937186 Ignitor   (Replaces: 5303281151) Special Order $ 80.61

23 5303281149 Bracket-ignitor Special Order $ 30.61

24 5303281135 Sensor In-Stock Immediately $ 102.06

25 5303281035 Screw Appelez-nous -
26 08015677 Orifice-nat Gas Appelez-nous -
27 08015194 Union - Hex Nut Appelez-nous -
28 5300622602 Coil-secondary Appelez-nous -
29 5308015680 Coil-booster Appelez-nous -
26A 5300171852 L.p. Gas Kit (non-illustrated) Special Order $ 103.43


    View Diagram in Separate Window     Print Icon   Print Part List

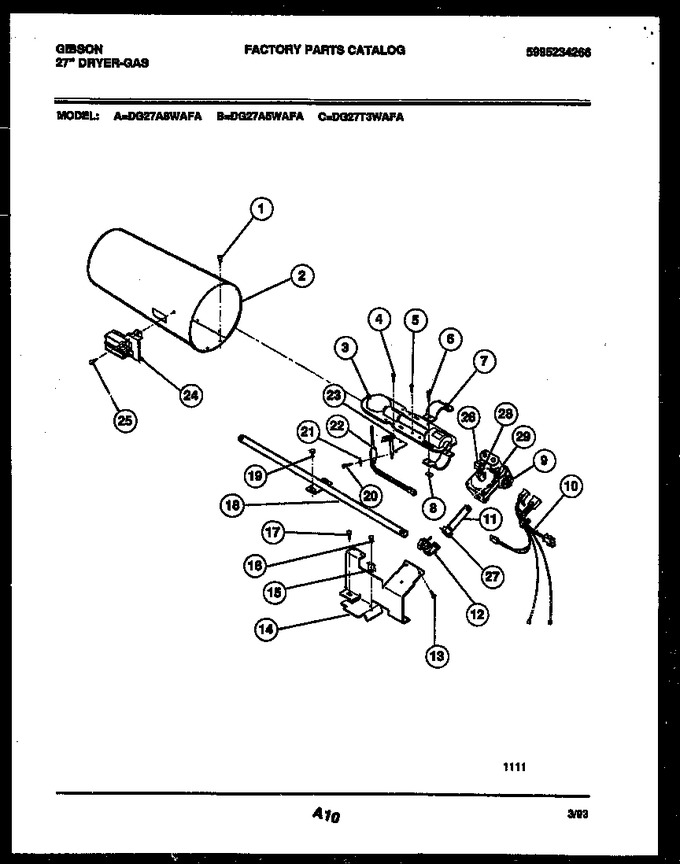

Diagram for DG27A5WAFA
