SELECT A DIAGRAM
02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts
05 - Motor And Blower Parts
06 - Burner, Igniter And Valve
SELECT A DIAGRAM
New Model Search:

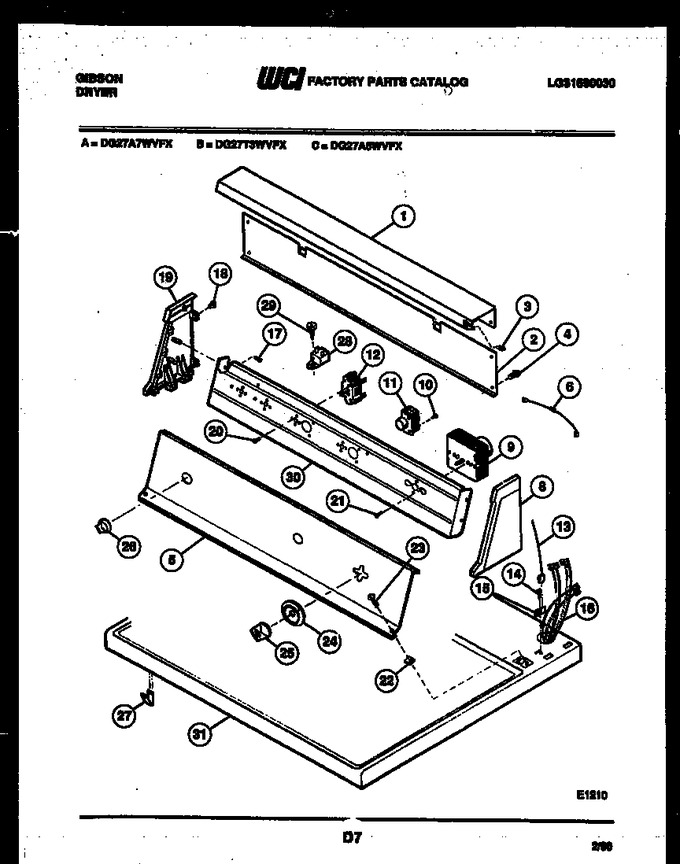

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201681 | Cover |
|
- | |||||
| 2 | 3201349 | Back Cover |
|
- | |||||
| 3 | 08010825 | Clip (3) |
|
- | |||||
| 4 | 3015671 | Screw (5) |
|
- | |||||
| 5 | 5303209163 | Trimplate |
|
- | |||||
| 6 | F065111-001 | Resistor |
|
- | |||||
| 8 | 5303209165 | End Cap & Trm Assy Rh |
|
- | |||||
| 9 | 3201336 | Timer |
|
- | |||||
| 10 | 08010804 | Screw (2) |
|
- | |||||
| 11 | 01132293 | Switch-push To Start |
|
- | |||||
| 13 | 3201340 | Ground Wire |
|
- | |||||
| 14 | 08001689 | Screw |
|
- | |||||
| 15 | 3161198 | Terminal |
|
- | |||||
| 16 | 3206006 | Harness |
|
- | |||||
| 17 | F137858-00 | Screw (4) |
|
- | |||||
| 18 | F139577-000 | Clip (4) |
|
- | |||||
| 19 | 5303209166 | End Cap & Trim Assy Lh |
|
- | |||||
| 21 | 3161188 | Screw (2) |
|
- | |||||
| 22 | 5300503065 | Clip (2) |
|
$ 6.09 | |||||
| 23 | 3205820 | Screw (2) |
|
- | |||||
| 24 | 08015702 | Pointer |
|
- | |||||
| 25 | Q000199072 | Timer-knob |
|
- | |||||
| 27 | 3205821 | Spring-clip (2) |
|
Immediately | $ 35.44 | ||||
| 28 | F133242-000 | Buzzer |
|
- | |||||
| 29 | 08010804 | Screw |
|
- | |||||
| 30 | 3205822 | Bracket-control Mtg |
|
- | |||||
| 31 | 3205824 | Top Panel-wheat |
|
- | |||||
| 31 | 3205825 | Top Panel Almond |
|
- | |||||
| 31 | 3205823 | Top Panel White |
|
- | |||||
| 16A | 3281103 | Wire Tie (3) (non-illustrated) |
|
- | |||||
| 28A | 3201616 | Harness, Buzzer (non-illustrated) |
|
- |
