SELECT A DIAGRAM
02 - Main Top
03 - Power Lock
04 - Burner
05 - Body
06 - Oven Door
07 - Lower Oven Control

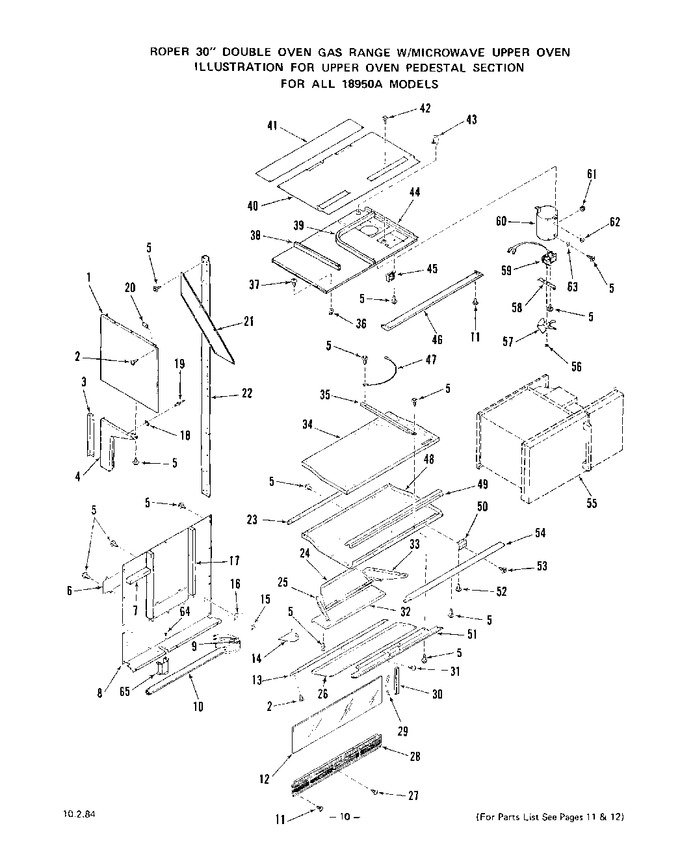

08 - Upper Oven Pedestal
09 - Rotisserie , Griddle
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 324032 | Almond-right |
|
- | |||||
| 1 | 324022 | White-left |
|
- | |||||
| 1 | 324031 | Golden Wheat-right |
|
- | |||||
| 1 | 324030 | Avocado-right |
|
- | |||||
| 1 | 324029 | Coffee-right |
|
- | |||||
| 1 | 324028 | White-right |
|
- | |||||
| 1 | 324026 | Almond-left |
|
- | |||||
| 1 | 324025 | Golden Wheat-left |
|
- | |||||
| 1 | 324024 | Avocado-left |
|
- | |||||
| 1 | 324023 | Coffee-left |
|
- | |||||
| 2 | 327621 | Screw 6-20x3/8`` |
|
- | |||||
| 3 | 320119 | Support-pedestal (lt. Or Rt.) |
|
- | |||||
| 4 | 320024 | White-left |
|
- | |||||
| 4 | 320025 | Coffee-left |
|
- | |||||
| 4 | 320026 | Avocado-left |
|
- | |||||
| 4 | 320027 | Golden Wheat-left |
|
- | |||||
| 4 | 320028 | Almond-left |
|
- | |||||
| 4 | 320030 | White-right |
|
- | |||||
| 4 | 320031 | Coffee-right |
|
- | |||||
| 4 | 320032 | Avocado-right |
|
- | |||||
| 4 | 320033 | Golden Wheat-right |
|
- | |||||
| 4 | 320034 | Almond-right |
|
- | |||||
| 5 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 6 | 322992 | Cover Plate |
|
- | |||||
| 7 | 323860 | Foam Strip |
|
- | |||||
| 8 | 320215 | Wire Cover |
|
- | |||||
| 9 | 323866 | Left |
|
- | |||||
| 9 | 323867 | Right |
|
- | |||||
| 10 | 71734 | Fluorescent Lamp (20 W - 24``) |
|
- | |||||
| 11 | 329382 | Screw 6-20x3/8`` |
|
- | |||||
| 12 | 324747 | Lamp Glass |
|
- | |||||
| 13 | 320131 | Almond |
|
- | |||||
| 13 | 320129 | Avocado |
|
- | |||||
| 13 | 320130 | Golden Wheat |
|
- | |||||
| 13 | 320128 | Coffee |
|
- | |||||
| 13 | 320127 | White |
|
- | |||||
| 14 | 322935 | Right |
|
- | |||||
| 14 | 322933 | Left |
|
- | |||||
| 15 | 324746 | Bracket-fluorescent Lamp (rt. Or Lt.) |
|
- | |||||
| 16 | 321107 | Shield-wire |
|
Immediately | $ 41.96 | ||||
| 17 | 320696 | Foam Strip - Rt Or Lt |
|
- | |||||
| 18 | 285523 | Retainer |
|
- | |||||
| 19 | 101523 | Pop Rivet |
|
- | |||||
| 20 | 320196 | Spacer-body Side (lt. Or Rt.) |
|
- | |||||
| 21 | 324791 | Brace - Cabinet Side (lt Or Rt) |
|
- | |||||
| 22 | 319987 | Support-upper Oven (lt. Or Rt.) |
|
- | |||||
| 23 | 320117 | Stiffener - Back |
|
- | |||||
| 24 | 322937 | Baffle - Vent |
|
- | |||||
| 25 | 322951 | Vent Side-lt. |
|
- | |||||
| 26 | 321663 | Golden Wheat |
|
- | |||||
| 26 | 321664 | Almond |
|
- | |||||
| 26 | 321660 | White |
|
- | |||||
| 26 | 321661 | Coffee |
|
- | |||||
| 26 | 321662 | Avocado |
|
- | |||||
| 27 | 108788 | Screw 6-32 X 1/2`` |
|
- | |||||
| 28 | 319839 | Lower Retainer-lamp Glass |
|
- | |||||
| 29 | 286327 | Spring - Lamp Glass End Trim (lt Or Rt) |
|
- | |||||
| 30 | 299979 | End Trim - Lamp Glass (lt Or Rt) |
|
- | |||||
| 31 | 299766 | Screw 6-32 X 1/2`` |
|
- | |||||
| 32 | 320263 | Bottom-vent |
|
- | |||||
| 33 | 320259 | Vent Side-rt. |
|
- | |||||
| 34 | 320211 | Insulation - Cabinet Bottom |
|
- | |||||
| 35 | 320202 | Guide - Module (rt Or Lt) |
|
- | |||||
| 36 | 324728 | Screw Grommet (3 Req) |
|
- | |||||
| 37 | 316849 | Screw 10-32x7/16`` |
|
- | |||||
| 38 | 325030 | Foam Strip |
|
- | |||||
| 39 | 325029 | Foam Strip |
|
- | |||||
| 40 | 321676 | Almond |
|
- | |||||
| 40 | 320240 | White |
|
- | |||||
| 40 | 321673 | Coffee |
|
- | |||||
| 40 | 321674 | Avocado |
|
- | |||||
| 40 | 321675 | Golden Wheat |
|
- | |||||
| 41 | 321672 | Almond |
|
- | |||||
| 41 | 321671 | Golden Wheat |
|
- | |||||
| 41 | 321670 | Avocado |
|
- | |||||
| 41 | 321669 | Coffee |
|
- | |||||
| 41 | 320476 | White |
|
- | |||||
| 42 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 43 | 109180 | Convenience Outlet |
|
- | |||||
| 44 | 320243 | Oven Top |
|
- | |||||
| 45 | 98186 | Ballast |
|
- | |||||
| 46 | 320213 | Trim - Top |
|
- | |||||
| 47 | 321044 | Stop - Module |
|
- | |||||
| 48 | 320210 | Bottom-oven Cabinet |
|
- | |||||
| 49 | 321410 | Support |
|
- | |||||
| 50 | 324709 | Bracket - Hold Down (2 Req) |
|
- | |||||
| 51 | 323821 | Coffee |
|
- | |||||
| 51 | 323820 | White |
|
- | |||||
| 51 | 323822 | Avocado |
|
- | |||||
| 51 | 323824 | Almond |
|
- | |||||
| 51 | 323823 | Golden Wheat |
|
- | |||||
| 52 | 102376 | Screw 10-32 X 1/2`` |
|
- | |||||
| 53 | 104520 | Screw 10-32 X 17/32`` |
|
- | |||||
| 54 | 320399 | Stiffener - Front |
|
- | |||||
| 56 | 320703 | ``e`` Ring |
|
- | |||||
| 57 | 311173 | Fan Blade |
|
- | |||||
| 58 | 320374 | Support - Blower |
|
- | |||||
| 59 | 320397 | Motor - Blower |
|
- | |||||
| 60 | 320412 | Duct-fan |
|
- | |||||
| 61 | 285726 | Hex Nut 10-32 |
|
- | |||||
| 62 | 232365 | Bushing |
|
- | |||||
| 63 | 283763 | Retainer |
|
- | |||||
| 64 | 70588 | Clip |
|
- | |||||
| 65 | 325646 | Circuit Board |
|
- | |||||
| 65 | 286889 | Wire Shield-backguard |
|
- | |||||
| 65 | 325882 | Switch-gas Valve |
|
- | |||||
| 65 | 326546 | Main |
|
- |
