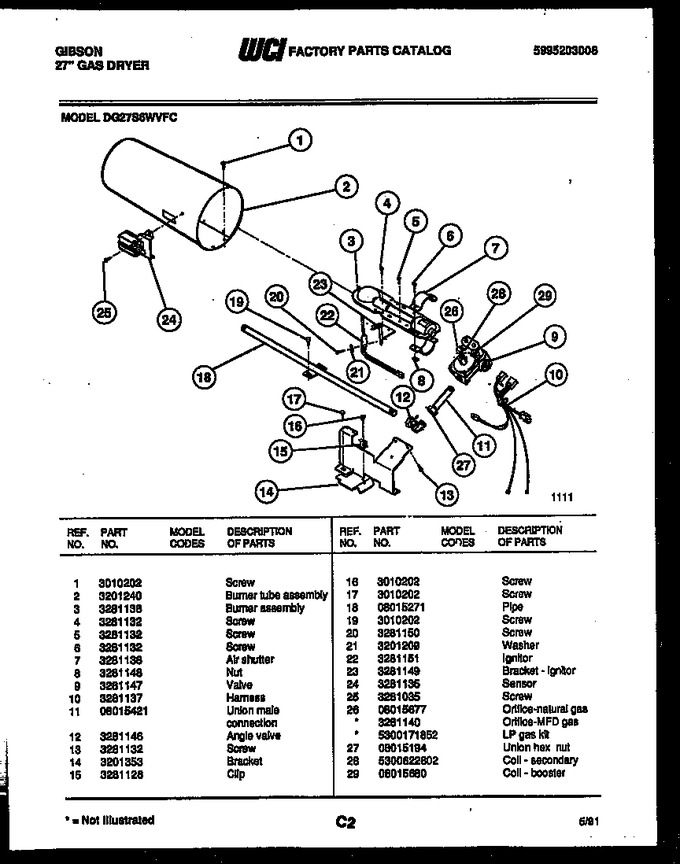

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3010202		Screw		Appelez-nous	-
2	3201240		Burner Tube		Appelez-nous	-
3	3281136		Burner		Appelez-nous	-
4	3281132		Screw		Appelez-nous	-
5	3281132		Screw		Appelez-nous	-
6	3281132		Screw		Appelez-nous	-
7	3281138		Air Shutter		Appelez-nous	-
8	3281148		Nut		Appelez-nous	-
9	3281147		Valve		Appelez-nous	-
10	3281137		Harness		Appelez-nous	-
11	08015421		Connection-union		Appelez-nous	-
12	3281146		Angle Valve		Appelez-nous	-
13	3281132		Screw		Appelez-nous	-
14	3201353		Bracket		Appelez-nous	-
15	3281126		Clip		Appelez-nous	-
16	3010202		Screw		Appelez-nous	-
17	3010202		Screw		Appelez-nous	-
18	08015271		Pipe		Appelez-nous	-
19	3010202		Screw		Appelez-nous	-
20	3281150		Screw		Appelez-nous	-
21	3201209		Washer		Appelez-nous	-
22	3281151		Igniter		Appelez-nous	-
23	3281149		Bracket-ignitor		Appelez-nous	-
24	3281135		Sensor		Appelez-nous	-
25	3281035		Screw		Appelez-nous	-
26	08015677		Orfice (nat. Gas)		Appelez-nous	-
27	08015194		Nut-hex Union		Appelez-nous	-
28	5300622602		Coil-secondary		Appelez-nous	-
29	08015680		Coil, Booster		Appelez-nous	-
NI	3281140		Orfice (mfd Gas) (non-illustrated)		Appelez-nous	-
NI	5300171852		L.p. Gas Kit (non-illustrated)				$ 103.43
