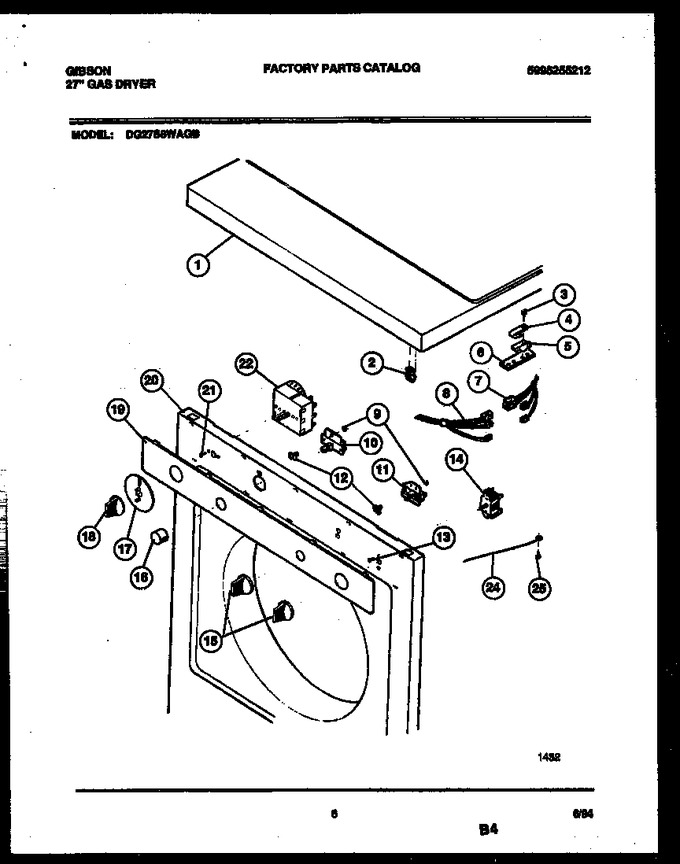

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303275565 | Panel-top-white |
|
- | |||||
| 1 | 5303275567 | Panel-top-almond |
|
- | |||||
| 2 | 5303281170 | Spring Catch |
|
- | |||||
| 3 | 3161175 | Screw |
|
- | |||||
| 4 | 5303281163 | Clip |
|
- | |||||
| 5 | 5303281164 | Fastener |
|
- | |||||
| 6 | 5303281165 | Spacer |
|
- | |||||
| 7 | 131160000 | Harness-main |
|
- | |||||
| 8 | 131012300 | Harness-component |
|
- | |||||
| 9 | 3281089 | Nut |
|
- | |||||
| 10 | 5303203292 | Switch-start |
|
- | |||||
| 11 | 5303207848 | Buzzer |
|
- | |||||
| 12 | 3281092 | Quickey Bolt |
|
- | |||||
| 13 | 3281101 | Screw |
|
- | |||||
| 14 | 5303281100 | Switch-selector |
|
$ 123.43 | |||||
| 15 | 5300633724 | Knob |
|
- | |||||
| 16 | 3201220 | Pushbutton |
|
- | |||||
| 17 | 5308027433 | Dial |
|
- | |||||
| 18 | 5303291854 | Knob |
|
- | |||||
| 19 | 131049600 | Panel-control |
|
- | |||||
| 20 | 5303937113 | Panel-front-almond |
|
- | |||||
| 20 | 131003409 | Panel-front-white |
|
- | |||||
| 21 | 5303281096 | Screw |
|
- | |||||
| 22 | 5308027438 | Timer |
|
- | |||||
| 24 | 08015277 | Ground Wire |
|
- | |||||
| 25 | 5303281035 | Screw |
|
- |
