SELECT A DIAGRAM

02 - Cabinet And Component Parts


03 - Door Parts


04 - Console And Control Parts


05 - Motor And Blower Parts


06 - Burner, Igniter And Valve

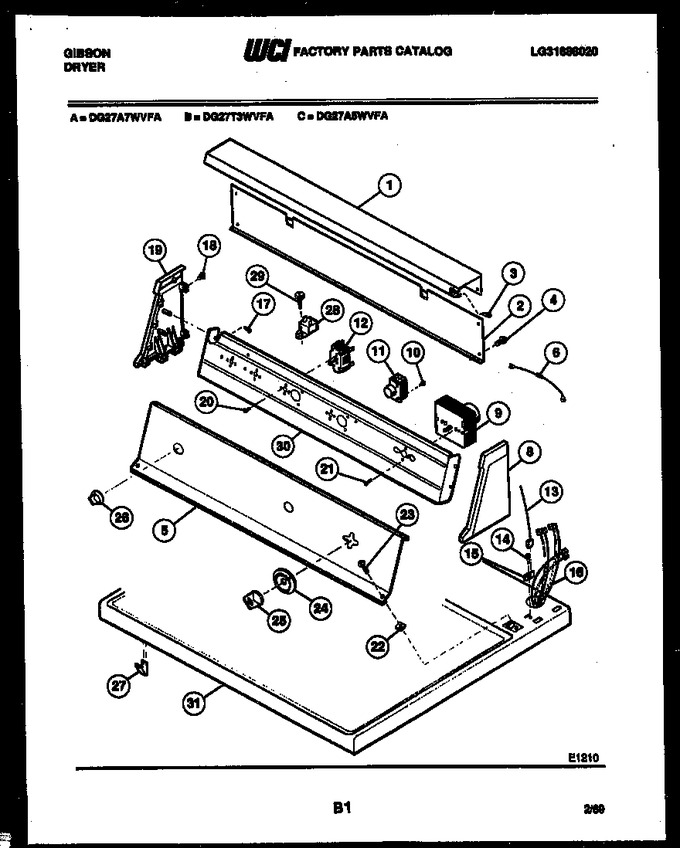

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3201681		Cover		Appelez-nous	-
2	3201349		Back Cover		Appelez-nous	-
3	08010825		Clip (3)		Appelez-nous	-
4	3015671		Screw (5)		Appelez-nous	-
5	3201684		Trimplate		Appelez-nous	-
8	F139720-000		End Cap & Trim Assy Rh		Appelez-nous	-
9	3201614		Timer		Appelez-nous	-
10	08010804		Screw (2)		Appelez-nous	-
11	01132293		Switch-push To Start		Appelez-nous	-
13	3201340		Ground Wire		Appelez-nous	-
14	08001689		Screw		Appelez-nous	-
15	3161198		Terminal		Appelez-nous	-
16	3201344		Harness		Appelez-nous	-
17	F137858-00		Screw (4)		Appelez-nous	-
18	F139577-000		Clip (4)		Appelez-nous	-
19	F139720-100		End Cap & Trim Assy Lh		Appelez-nous	-
21	3161188		Screw (2)		Appelez-nous	-
22	08001912		Clip (2)		Appelez-nous	-
23	F140203-000		Screw (2)		Appelez-nous	-
24	08015702		Pointer		Appelez-nous	-
25	Q000199072		Timer-knob		Appelez-nous	-
27	3281170		Spring-clip (2)		Appelez-nous	-
30	3201352		Bracket-control Mtg		Appelez-nous	-
31	3201345		Top Panel White		Appelez-nous	-
31	3201347		Top Panel-almond		Appelez-nous	-
16A	3281103		Wire Tie (3) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
