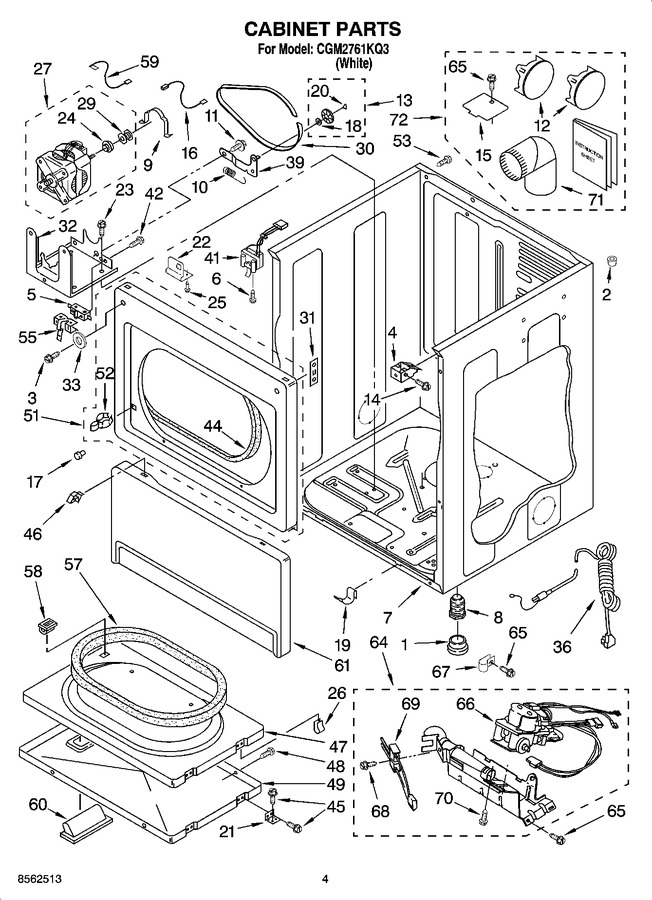

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts And Optional Parts (not Included)
04 - 3401797 Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 7.04 | |||||
| 2 | 356674 | Cone-wedge |
|
$ 33.19 | |||||
| 3 | WP3373329 | Screw, 10-16 X 1/2 (Replaces: 3393258) |
|
$ 6.91 | |||||
| 4 | 3391846 | Clip, Front Panel (2) |
|
$ 19.04 | |||||
| 5 | 279782 | Switch, Broken Belt (Replaces: 3394881) |
|
Immediately | $ 49.00 | ||||
| 6 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 6.93 | |||||
| 7 | W11417441 | Cabinet (Replaces: 8310656) |
|
$ 377.29 | |||||
| 8 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 | ||||
| 8 | 49621 | Foot, Dryer (plastic) (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.05 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 22.11 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 7.22 | |||||
| 12 | W10470674 | Plug, Multivent (Replaces: 697750) |
|
Immediately | $ 68.99 | ||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 29.26 | ||||
| 14 | 681615 | Screw, 10-16 X 1 (Replaces: 3391915) |
|
$ 12.49 | |||||
| 15 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 8.06 | |||||
| 16 | 3394081 | Wire, Belt Switch |
|
$ 37.57 | |||||
| 17 | 693152 | Bumper |
|
$ 9.86 | |||||
| 18 | WP233520 | Washer, Thurst (Replaces: 233520) |
|
Immediately | $ 7.16 | ||||
| 19 | WP297092 | Clip (2) (Replaces: 297092) |
|
Immediately | $ 7.42 | ||||
| 20 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 7.92 | ||||
| 21 | W11175815 | Hinge And Pin (2) (Replaces: 3389247) |
|
$ 73.27 | |||||
| 22 | 3353948 | Bracket, Lock |
|
$ 12.34 | |||||
| 23 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 3390663) |
|
Immediately | $ 7.07 | ||||
| 24 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 119.21 | ||||
| 25 | 63554 | Rivet (2) |
|
- | |||||
| 26 | 3389249 | Nut, ``u`` (4) |
|
- | |||||
| 27 | W10841144 | Motor Assembly 60 Hz. (Replaces: 8538264) |
|
Immediately | $ 210.88 | ||||
| 29 | WP8066184 | Pulley 60 Hz (Replaces: 3389627) |
|
Immediately | $ 45.92 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 29.53 | ||||
| 31 | WP3390902 | Clip, Door Hinge (2) (Replaces: 3390902) |
|
$ 10.00 | |||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 120.23 | |||||
| 33 | W11089212 | Washer (Replaces: 3392186) |
|
$ 8.70 | |||||
| 36 | W11628810 | Cord, Power (Replaces: 3401401) |
|
$ 87.35 | |||||
| 39 | W10837240 | Bracket, Idler (Replaces: 3388674) |
|
Immediately | $ 32.20 | ||||
| 41 | WPW10237959 | Door Switch Assembly (Replaces: 3406109) |
|
Immediately | $ 50.08 | ||||
| 42 | WP98129 | Screw, 6/20 X 1 1/16 (Replaces: 98129) |
|
$ 6.80 | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 45 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 6.81 | |||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 47 | 280083 | Door, Rear (Replaces: 3392563) |
|
$ 258.32 | |||||
| 48 | WP694091 | Screw, 8-18 X 3/8 (Replaces: 694091) |
|
$ 6.47 | |||||
| 49 | W11663440 | Door, Front (Replaces: 3387872) |
|
$ 233.43 | |||||
| 51 | 3393081 | Lower Front Panel |
|
- | |||||
| 52 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 53 | W10850756 | Screw, Ground 10-16 X 1/2 (Replaces: 697776) |
|
$ 6.98 | |||||
| 55 | WP8066120 | Lever, Snap Switch (Replaces: 8066120) |
|
Immediately | $ 29.80 | ||||
| 57 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 117.54 | |||||
| 58 | 279570 | Catch, Door Assembly (Replaces: 3392538) |
|
Immediately | $ 8.00 | ||||
| 59 | 3398948 | Wire, Jumper |
|
$ 55.42 | |||||
| 60 | 3389522 | Handle, Door |
|
$ 70.11 | |||||
| 61 | WP3406797 | Panel, Toe (includes Illus. 17) (Replaces: 697215) |
|
$ 214.50 | |||||
| 64 | 3401797 | Burner Assembly 60 Hz. (refer To Pages 8 & 9 For Further Breakdown) |
|
- | |||||
| 65 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 66 | 279923 | Valve, Gas 60 Hz. (complete) (Replaces: 3401775) |
|
Immediately | $ 257.43 | ||||
| 67 | 3387561 | Clamp, Pipe |
|
- | |||||
| 68 | WPW10366705 | Screw, 8-32 X 5/8 (Replaces: 3393909) |
|
$ 6.75 | |||||
| 69 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 71.01 | ||||
| 70 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 3387057) |
|
Immediately | $ 6.47 | ||||
| 71 | 279731 | 4`` - 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (for Side & Bottom Venting) |
|
- | |||||
| 72 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) White (Replaces: 279818) |
|
Immediately | $ 68.99 |
