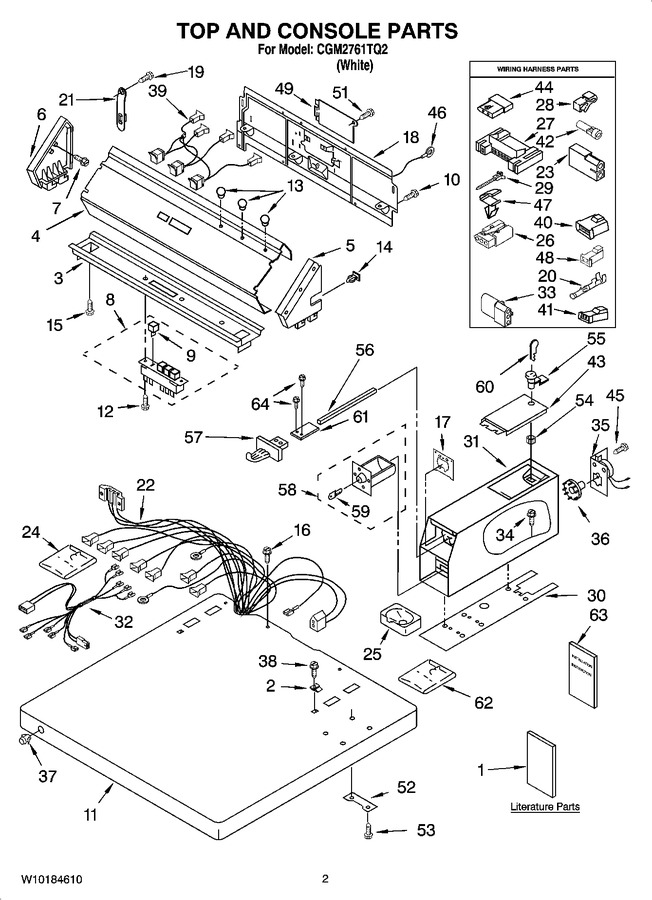

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 3401797 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10184610 | Repair Parts List |
|
- | |||||
| 1 | 8533569 | Wiring Diagram |
|
- | |||||
| 1 | W10184582 | Instructions, Installation |
|
- | |||||
| 2 | WP357213 | Nut,push-in (Replaces: 357213) |
|
$ 6.65 | |||||
| 3 | 3361029 | Bracket, Control |
|
$ 34.04 | |||||
| 4 | 8316634 | Panel, Control |
|
$ 256.07 | |||||
| 5 | 8316516 | Cap, End (r.h.) |
|
- | |||||
| 6 | 3949734 | Cap, End (l.h.) |
|
- | |||||
| 7 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: 97787) |
|
Immediately | $ 7.20 | ||||
| 8 | WPW10330137 | Switch, Pushbutton (Replaces: 8316437) |
|
Immediately | $ 305.60 | ||||
| 9 | WPW10330137 | Pushbutton (Replaces: 8316433) |
|
Immediately | $ 305.60 | ||||
| 10 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 11 | 3954665 | Top |
|
$ 145.66 | |||||
| 12 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 303921) |
|
$ 9.79 | |||||
| 13 | WP3348109 | Lens, Amber (3) (Replaces: 3348109) |
|
Immediately | $ 11.26 | ||||
| 14 | 689559 | Nut, Push-in |
|
- | |||||
| 15 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 16 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 17 | 279950 | Plate, Chute Adapter (includes Illus. 25) (Replaces: 3954761) |
|
Immediately | $ 26.00 | ||||
| 18 | W11089934 | Panel, Rear (upper) (Replaces: 3978608) |
|
$ 256.84 | |||||
| 19 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 20 | WP94614 | Terminal (Replaces: 94614) |
|
$ 6.90 | |||||
| 21 | WP8568314 | Strap, Console (Replaces: 8568314) |
|
$ 7.00 | |||||
| 22 | WP8529870 | Harness, Main (Replaces: 8529870) |
|
$ 237.41 | |||||
| 23 | 717252 | Receptacle, 2 Way |
|
- | |||||
| 24 | WP3406965 | Kit, Vertical 8-coin (includes Illus. 55-57-58 60-61-62 & 63) (Replaces: 3954807) |
|
Immediately | $ 358.66 | ||||
| 25 | WP385421 | Funnel, Coin (Replaces: 385421) |
|
Immediately | $ 66.78 | ||||
| 26 | 717315 | Receptacle, 4-way |
|
- | |||||
| 27 | 3395683 | Housing Connector |
|
Immediately | $ 46.67 | ||||
| 28 | W10113937 | Clip, Ground (Replaces: 357572) |
|
$ 9.75 | |||||
| 29 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 28.66 | |||||
| 30 | WP3954812 | Cushion, Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 31 | WPW10461200 | Case, Meter (Replaces: 3406994) |
|
Immediately | $ 344.90 | ||||
| 32 | 3401126 | Harness, Timer |
|
- | |||||
| 33 | 3936144 | Connector (3-circuit) |
|
$ 18.19 | |||||
| 34 | W11715721 | Bolt (5/16-24 X 1) (Replaces: 3349065) |
|
$ 6.41 | |||||
| 35 | W11451464 | Timer, (includes 4-pin Cam) (Replaces: W10045440) |
|
Immediately | $ 277.04 | ||||
| 36 | WP339853 | Timing Cam (12-pin (15 Min)) (Replaces: 339853) |
|
$ 6.95 | |||||
| 36 | WP339854 | Timing Cam (9 Pin (20 Min.)) (Replaces: 339854) |
|
$ 5.83 | |||||
| 36 | 51-161-6 | Timing Cam (6-pin (30 Min)) (Replaces: 343777) |
|
$ 31.07 | |||||
| 36 | WP339855 | Timing Cam (4 Pin (45 Min.)) (Replaces: 339855) |
|
$ 7.53 | |||||
| 36 | WP3387974 | Timing Cam (3-pin (60 Min)) (Replaces: 3387974) |
|
$ 7.49 | |||||
| 37 | 387371 | Lock, Plug |
|
$ 11.36 | |||||
| 37 | 358290 | Top Lock |
|
- | |||||
| 38 | 8281182 | Screw 8-18 X 1-1/4 |
|
$ 5.33 | |||||
| 39 | 8316640 | Lights, Indicator Assembly |
|
$ 60.24 | |||||
| 40 | WP3403498 | Connector, 3 Position (Replaces: 3403498) |
|
$ 6.26 | |||||
| 41 | WP3403499 | Connector, 2 Position (Replaces: 3403499) |
|
$ 5.16 | |||||
| 42 | 351297 | Plug, Harness |
|
- | |||||
| 43 | W11283272 | Door, Service (Replaces: 3351136) |
|
$ 95.29 | |||||
| 44 | 717253 | Plug, Terminal |
|
- | |||||
| 45 | 339805 | Screw, 10-32 X 3/16 |
|
$ 12.05 | |||||
| 46 | 3398893 | Ground Wire |
|
- | |||||
| 47 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.01 | |||||
| 48 | 351296 | Receptacle |
|
- | |||||
| 49 | W10819767 | Cover, Terminal Block (Replaces: 8317340) |
|
- | |||||
| 51 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 7.04 | ||||
| 52 | 3347825 | Plate-mounting (2) |
|
- | |||||
| 53 | W10841059 | Screw, 10-16 X 3/4 (Replaces: 98445) |
|
- | |||||
| 54 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 7.33 | |||||
| 55 | W11315637 | Security Lock/key & Cam Assembly (Replaces: 8316526) |
|
Immediately | $ 36.42 | ||||
| 56 | WP8576635 | Bolt, Slide Mechanism (Replaces: 8318517) |
|
Immediately | $ 67.13 | ||||
| 57 | W11126319 | Slide Mechanism (vertical 8-coin) (dollar Vend) (Replaces: 8316520) |
|
Immediately | $ 279.80 | ||||
| 57 | W11312584 | Inserts (not Shown) (blank) (Replaces: 8316264) |
|
$ 28.26 | |||||
| 57 | 8316265 | Inserts (not Shown) (25ยข) |
|
- | |||||
| 58 | W11190039 | Money Box W/lock (Replaces: 8316525) |
|
Immediately | $ 160.25 | ||||
| 61 | 3390424 | Extension (Replaces: 8316523) |
|
Immediately | $ 61.43 | ||||
| 62 | 8316524 | Kit, Decal |
|
- | |||||
| 63 | 8316532 | Installation Instructions Coin Kit |
|
- | |||||
| 64 | WP3400029 | Screw, 10-32 X 3/8 (Replaces: 3400029) |
|
Immediately | $ 6.98 |
