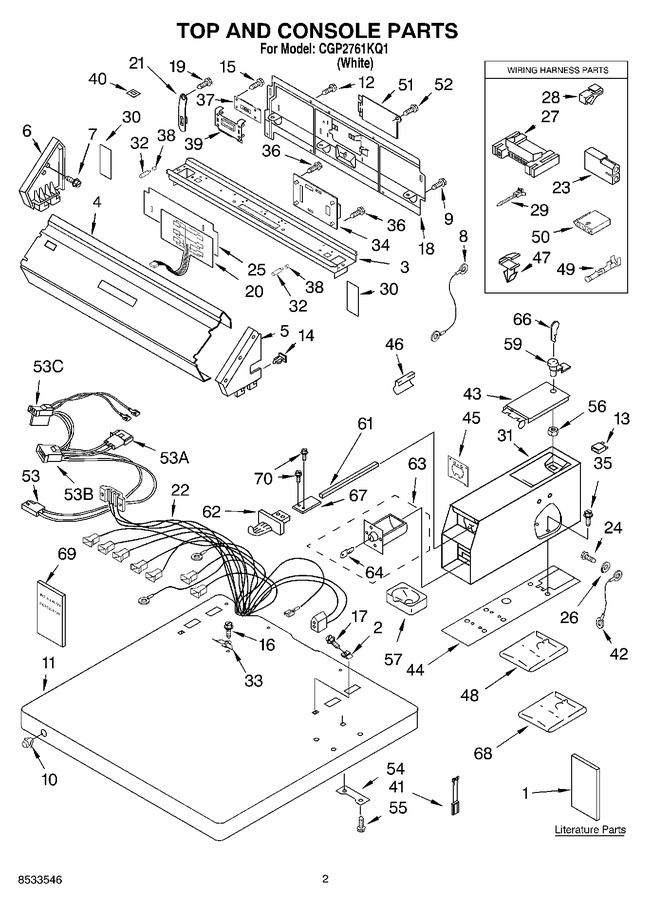

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 3401797 Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8528107 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8533546 | Literature Parts (repair Parts List) |
|
- | |||||
| 1 | LIT8527807 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8530962 | Literature Parts (wiring Diagram) |
|
- | |||||
| 2 | WP357213 | Nut,push-in (Replaces: 357213) |
|
$ 6.65 | |||||
| 3 | 3950800 | Bracket, Control |
|
- | |||||
| 4 | 8527822 | Panel, Control |
|
- | |||||
| 5 | 8316516 | Cap, End (r.h.) |
|
- | |||||
| 6 | 3949734 | Cap, End (l.h.) |
|
- | |||||
| 7 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: 97787) |
|
Immediately | $ 7.20 | ||||
| 8 | 3397996 | Wire, Ground |
|
- | |||||
| 9 | WP3390631 | Screw, 10-16 X 5/16 (Replaces: 339554) |
|
$ 7.04 | |||||
| 10 | 358290 | Top Lock |
|
- | |||||
| 10 | 387371 | Lock, Plug Also Available |
|
$ 11.36 | |||||
| 11 | 3954665 | Top |
|
$ 145.66 | |||||
| 12 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 13 | 3402784 | Switch, Diagnostic |
|
$ 8.09 | |||||
| 14 | 689559 | Nut, Push-in |
|
- | |||||
| 15 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 6.75 | |||||
| 16 | WP355214 | Screw 8-18 X 11/32 (Replaces: 3393918) |
|
Immediately | $ 7.26 | ||||
| 17 | 8281182 | Screw 8-18 X 1-1/4 |
|
$ 5.33 | |||||
| 18 | W11089934 | Panel, Rear (upper) (Replaces: 3978608) |
|
$ 256.84 | |||||
| 19 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 20 | 3407158 | Switch, Membrane |
|
$ 195.17 | |||||
| 21 | WP8568314 | Strap, Console (Replaces: 8318255) |
|
$ 7.00 | |||||
| 22 | 8529872 | Harness, Main |
|
- | |||||
| 23 | 717252 | Receptacle, 2 Way |
|
- | |||||
| 24 | 339805 | Screw, 10-32 X 1/16 |
|
$ 12.05 | |||||
| 25 | 3950773 | Backer Plate |
|
- | |||||
| 26 | W11170663 | Washer (Replaces: 3400900) |
|
$ 3.89 | |||||
| 27 | 3395683 | Housing Connector |
|
Immediately | $ 46.67 | ||||
| 28 | W10113937 | Clip, Ground (Replaces: 357572) |
|
$ 9.75 | |||||
| 29 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 28.66 | |||||
| 30 | 3950775 | Backer Plate, Side (2) |
|
- | |||||
| 31 | WPW10461200 | Case, Meter (Replaces: 3406994) |
|
Immediately | $ 344.90 | ||||
| 32 | 3950774 | Mounting Stud |
|
- | |||||
| 33 | 3355753 | Clip, Static Guard |
|
- | |||||
| 34 | 3407149 | Board, Control |
|
- | |||||
| 35 | W11715721 | Bolt (5/16-24 X 1) (Replaces: 3349065) |
|
$ 6.41 | |||||
| 36 | WPW10366705 | Screw, 8-32 X 7/8`` (Replaces: 3393909) |
|
$ 6.75 | |||||
| 37 | 3407150 | Board, Display |
|
- | |||||
| 38 | 3951768 | Cap, Mounting Stud |
|
- | |||||
| 39 | 3949599 | Lens, Display |
|
- | |||||
| 40 | 3363338 | Clip (2) |
|
- | |||||
| 41 | 3406196 | A.c. Line Filter |
|
- | |||||
| 42 | 340025 | Wire, Ground (meter Box) |
|
- | |||||
| 43 | W11283272 | Door, Service (Replaces: 3351136) |
|
$ 95.29 | |||||
| 44 | WP3954812 | Cushion, Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 45 | 279950 | Chute Adapter Plate Assembly (includes Illus. 57) (Replaces: 3954761) |
|
Immediately | $ 26.00 | ||||
| 46 | 696770 | Protector, Support |
|
- | |||||
| 47 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.01 | |||||
| 48 | WP3406965 | Kit, Vertical 8-coin (includes Illus. 59-62-63 66-67-68 & 69) (Replaces: 3954807) |
|
Immediately | $ 358.66 | ||||
| 49 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 6.90 | |||||
| 50 | 3936144 | Connector (3-circuit) |
|
$ 18.19 | |||||
| 51 | W10819767 | Cover, Terminal Block (Replaces: 8317340) |
|
- | |||||
| 52 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 7.04 | ||||
| 53 | WP3401850 | Harness, Gas (Replaces: 3401850) |
|
$ 218.68 | |||||
| 54 | 3347825 | Plate-mounting (2) |
|
- | |||||
| 55 | W10841059 | Screw, 10-16 X 3/4 (Replaces: 98445) |
|
- | |||||
| 56 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 7.33 | |||||
| 57 | WP385421 | Coin Funnel (Replaces: 385421) |
|
Immediately | $ 66.78 | ||||
| 59 | W11315637 | Security Lock/key & Cam Assembly (Replaces: 8316526) |
|
Immediately | $ 36.42 | ||||
| 61 | WP8576635 | Bolt, Slide Mechanism (Replaces: 8318517) |
|
Immediately | $ 67.13 | ||||
| 62 | 8316265 | Inserts (not Shown) (25ยข) |
|
- | |||||
| 62 | W11126319 | Slide Mechanism (vertical 8-coin) (dollar Vend) (Replaces: 8316520) |
|
Immediately | $ 279.80 | ||||
| 62 | W11312584 | Inserts (not Shown) (blank) (Replaces: 8316264) |
|
$ 28.26 | |||||
| 63 | W11190039 | Money Box W/lock (Replaces: 8316525) |
|
Immediately | $ 160.25 | ||||
| 67 | 3390424 | Extension (Replaces: 8316523) |
|
Immediately | $ 61.43 | ||||
| 68 | 8316524 | Kit, Decal |
|
- | |||||
| 69 | 8316532 | Installation Instructions Coin Kit |
|
- | |||||
| 70 | C4889201 | Line- Suct |
|
- | |||||
| 70 | 3400086 | Screw |
|
$ 12.77 | |||||
| 70 | DTS60 | Thermostat (Replaces: B0592401) |
|
Immediately | $ 12.22 | ||||
| 53A | 697779 | Plug, 3-way |
|
- | |||||
| 53B | WP3403498 | Connector, 3 Position (Replaces: 3403498) |
|
$ 6.26 | |||||
| 53C | WP3403499 | Connector, 2 Position (Replaces: 3403499) |
|
$ 5.16 |
