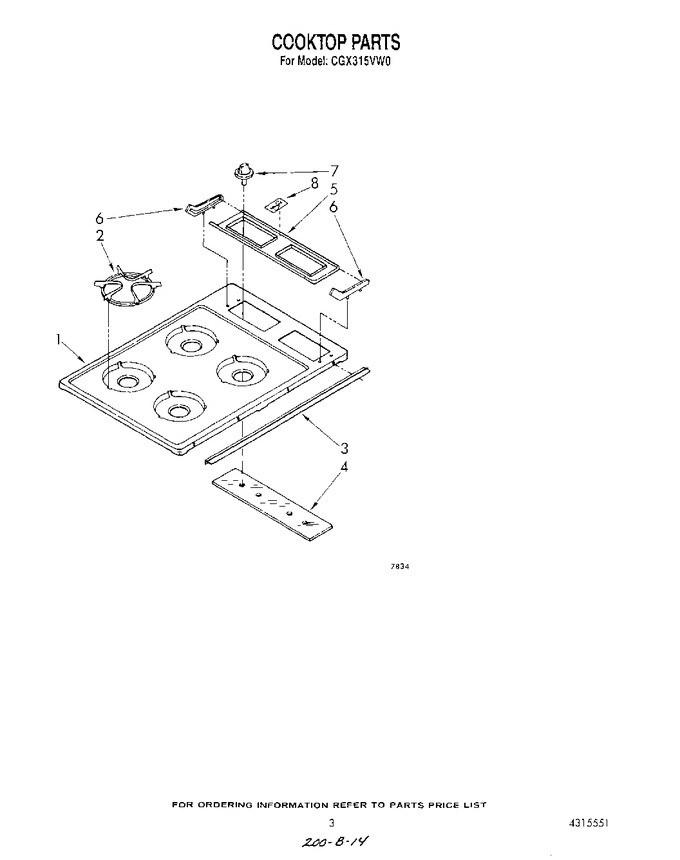

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4157534 | Cooktop (white) |
|
- | |||||
| 1 | 4157535 | Cooktop (almond) |
|
- | |||||
| 1 | 4179265 | Cooktop (black) |
|
- | |||||
| 1 | 4157842 | Cooktop (brush Chrome) |
|
- | |||||
| 2 | 4157581 | Grate (4) |
|
- | |||||
| 3 | 4157588 | Handle |
|
- | |||||
| 4 | 4315510 | Glass, Control Panel |
|
- | |||||
| 5 | 4315512 | Panel, Control |
|
- | |||||
| 6 | 4157586 | Endcap (rear) |
|
- | |||||
| 6 | 4157587 | Endcap (front) |
|
- | |||||
| 7 | 4315508 | Knob (4) |
|
- | |||||
| 8 | 4315519 | Nameplate |
|
- |
