SELECT A DIAGRAM

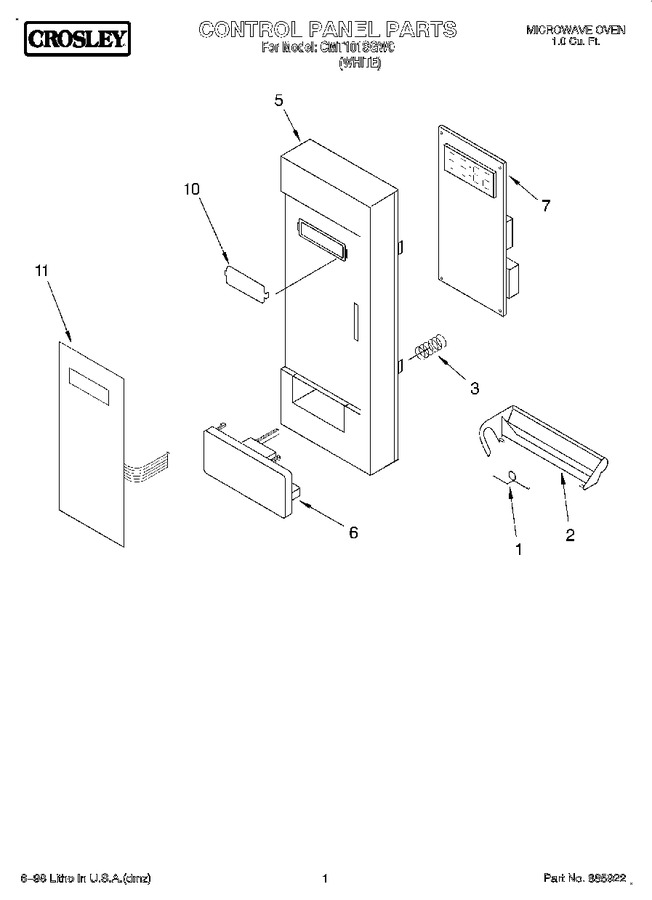

01 - Control Panel


02 - Door


03 - Cabinet, Literature


04 - Interior


05 - Magnetron And Air Flow


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4393948		Spring, Lever		Appelez-nous	-
2	4393800		Rotary, Lever		Appelez-nous	-
3	4393889		Spring, Button		Appelez-nous	-
5	4393894		Cover, Panel		Appelez-nous	-
6	4393893		Push Button		Appelez-nous	-
7	4393888		Microcomputer		Appelez-nous	-
10	4393543		Lens		Appelez-nous	-
11	4393949		Membrane		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
