Diagram for 05 - Motor, Fan Housing, Exhaust Duct
05 - Motor, Fan Housing, Exhaust Duct

Diagram for 06 - Gas Valve, Burner Assembly, Sensor
06 - Gas Valve, Burner Assembly, Sensor


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303270858 Housing, Fan Appelez-nous -
2 5303281035 Screw Appelez-nous -
3 5308015398 Thermostat - Control Special Order $ 4.25

4 5303269972 Bracket, Grounding Appelez-nous -
8 5303015671 Screw Appelez-nous -
9 5303269973 Duct, Exhaust Appelez-nous -
10 5303281079 Wheel, Blower Special Order $ 219.03

11 5303281080 Cover, Fan Appelez-nous -
12 5303212834 Clamp, Motor Special Order $ 3.78

13 5303283470 Motor & Pulley Special Order $ 414.17

16 131243700 Screw, Ground Special Order $ 3.36

17 134503600 Belt   (Replaces: 5303283471) In-Stock Immediately $ 18.79

18 5303212849 Idler Assy Special Order $ 20.69

19 131205300 Screw, Stop In-Stock Immediately $ 12.10

20 131017900 Screw Special Order $ 14.46

21 5303281076 Spacer Appelez-nous -
22 5303281085 Spring, Idler Special Order $ 13.01

23 131210401 Cradle-motor Appelez-nous -
24 5303281083 Spring Appelez-nous -
25 131205100 Screw (4) In-Stock Immediately $ 14.18

26 3281077 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

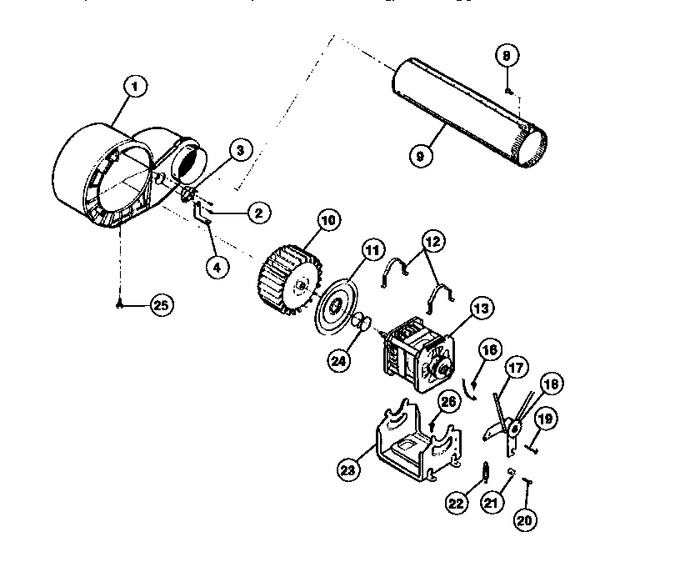

Diagram for DG400TXW0
