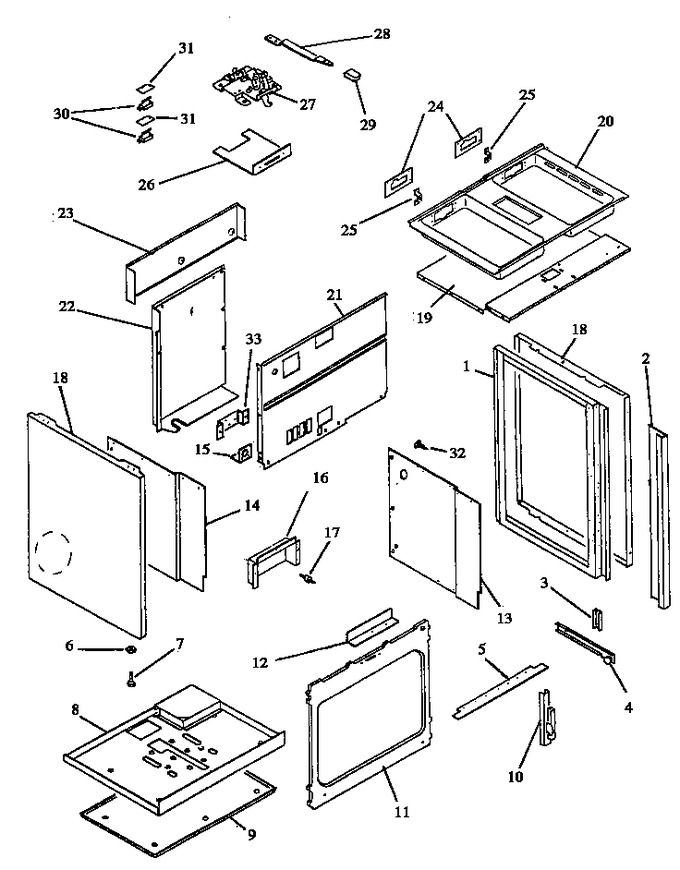

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61230CG | Frame, Side Pnl L.h. |
|
- | |||||
| 1 | 61231CG | Frame, Side Panel Rh |
|
- | |||||
| 2 | 303144B | Trim, Side Panel (blk) |
|
- | |||||
| 3 | Y0058557 | Support, Stg Dwr Trk |
|
- | |||||
| 4 | Y0058558 | Track, Drawer, L.h. |
|
- | |||||
| 4 | Y0058559 | Track, Drawer, R.h. |
|
- | |||||
| 5 | 062750G | Filler, Front Frame |
|
- | |||||
| 6 | 0076204 | Retainer Nut |
|
- | |||||
| 7 | Y0307594 | Leg, Leveling |
|
- | |||||
| 8 | Y0307240 | Retainer, Bot. Insulation |
|
- | |||||
| 9 | Y0301706 | Heat Shield, Storage Drawer |
|
- | |||||
| 10 | Y0066952 | Kit, Door Hinge (lh-hs) |
|
- | |||||
| 10 | Y0066954 | Kit, Door Hinge (rh-ss) |
|
- | |||||
| 12 | 0061443 | Heat Shield, Clock |
|
- | |||||
| 13 | Y0057443 | Retainer, Insul., Rh |
|
- | |||||
| 14 | 0057442 | Retainer, Insul., Lh |
|
- | |||||
| 15 | Y0058556 | Bracker, Conduit |
|
- | |||||
| 16 | Y0308367 | Cover, Control Board |
|
- | |||||
| 17 | Y0300662 | Support |
|
- | |||||
| 18 | Y063260B | Panel, Side Rt (blk) |
|
- | |||||
| 18 | 058542B | Panel, Side Lt (blk) |
|
- | |||||
| 19 | Y0301560 | Retainer Insulation Top X |
|
- | |||||
| 20 | 308960CG | Box, Burner |
|
- | |||||
| 21 | 0308186 | Panel, Rear |
|
- | |||||
| 22 | Y0058543 | Cover, Rear - Wire |
|
- | |||||
| 23 | Y0058544 | Shield, Rear |
|
- | |||||
| 24 | Y0300498 | Plate Mtg. Plug Block |
|
- | |||||
| 25 | Y0040965 | Plug Block Mtg Brkt Et590 595 |
|
- | |||||
| 26 | 0068101 | Bracket, Latch Mounting |
|
- | |||||
| 27 | Y0300327 | Latch, Oven Door |
|
- | |||||
| 28 | 303040B | Handle, Door Latch (blk) |
|
- | |||||
| 29 | 0302300 | Knob, Latch Handle (blk) |
|
- | |||||
| 30 | Y0042052 | Switch, Clean, Primary Interl |
|
- | |||||
| 30 | Y0065780 | Switch, Clean Circuit |
|
$ 11.77 | |||||
| 31 | Y0091523 | Insulation, Esm |
|
- | |||||
| 32 | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: Y0059445) |
|
Immediately | $ 12.65 | ||||
| 33 | Y0307664 | Brkt., Mounting |
|
- | |||||
| NI | 0302483 | Cover Plate, Latch |
|
- | |||||
| NI | Y0094296 | Screw 6x3/8 Phil Flt Hd |
|
- | |||||
| NI | Y0068091 | Bracket, Switch Mounting |
|
- | |||||
| NI | Y0058806 | Screw, 4-40 X 1.00`` |
|
- | |||||
| NI | Y0092365 | Screw 4-40x1 |
|
- | |||||
| NI | Y0078780 | Screw Latch Arm Mounting |
|
- | |||||
| NI | Y0301028 | Bracket |
|
- |
