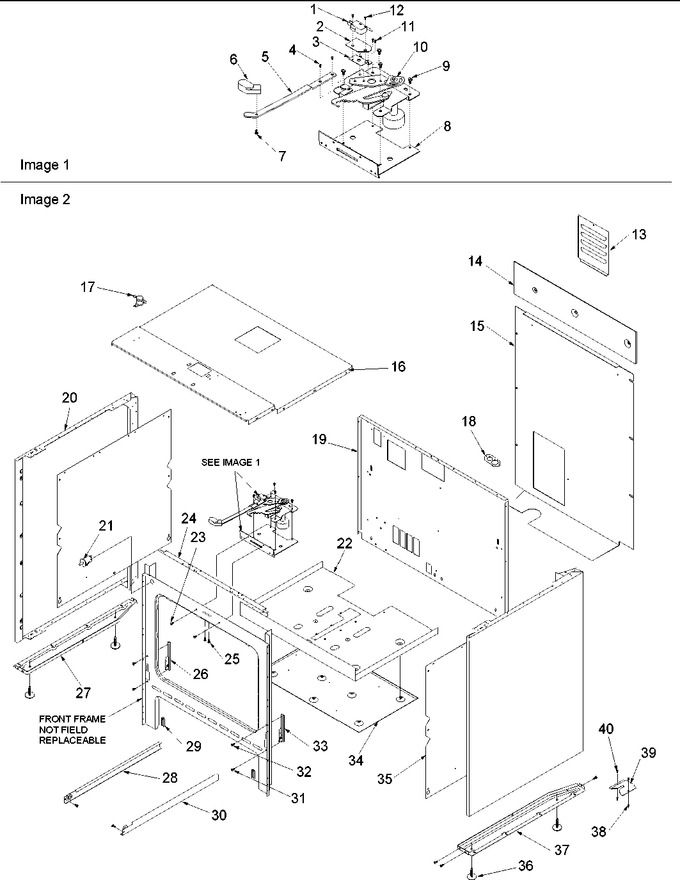

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0065780		Switch, Clean Circuit				$ 11.77
2	Y0091523		Insulation, Esm		Appelez-nous	-
3	Y0302316		Bracket, Switch		Appelez-nous	-
4	31750508		Screw, No.10-24x9/32 (ph Sems)		Appelez-nous	-
5	303040W		Handle, Door Latch (wht)		Appelez-nous	-
6	306830W		Knob, Latch Handle (wht)		Appelez-nous	-
7	31750306		Screw, No.6-32 X .375 Flat Hd Ph		Appelez-nous	-
8	Y0058918		Bracket, Latch Mtg.		Appelez-nous	-
9	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
10	0314960		Latch, Elect. Si		Appelez-nous	-
11	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
12	Y0092365		Screw 4-40x1		Appelez-nous	-
13	31800001		Plate, Access		Appelez-nous	-
14	0314785		Shield, Rear		Appelez-nous	-
15	Y0314672		Cover, Rear Wire		Appelez-nous	-
16	Y0315622		Retainer, Insulation Top		Appelez-nous	-
17	31933003		Control, Limit		Appelez-nous	-
18	Y0058556		Bracker, Conduit		Appelez-nous	-
19	31936201		Insulation Retainer (rear)		Appelez-nous	-
20	31825104W		Panel, Side (wht)		Appelez-nous	-
21	Y0314367		Switch, Oven Light		Appelez-nous	-
22	Y0315147		Insulation Retainer (bottom)		Appelez-nous	-
23	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: 31750507)			Immediately	$ 6.85
24	Y0315148		Filler, Front Frame		Appelez-nous	-
25	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
26	31715201		Hinge, Oven Door (lt)		Appelez-nous	-
27	31854501		Brace, Leveling Leg (lt)		Appelez-nous	-
28	Y0314666		Track, Storage Drawer Lt		Appelez-nous	-
29	Y0315150		Support, Stg Dwr Trk		Appelez-nous	-
30	Y0314667		Track, Storage Drawer Rt		Appelez-nous	-
31	WP4159193		Screw, No.10-32 X 5/16 Pan Ph H   (Replaces: 31750521)				$ 4.29
32	31750719		Screw, No.8-18 X .500 Ab (blk)		Appelez-nous	-
33	31715202		Hinge, Oven Door (rt)		Appelez-nous	-
34	Y0315146		Shield, Heat		Appelez-nous	-
35	Y0314680		Insulation Retainer, (side)		Appelez-nous	-
36	314187B		Leg,leveling Xxx		Appelez-nous	-
37	31854502		Brace, Leveling Leg (rt)		Appelez-nous	-
38	Y0301555		Anchor, Plastic		Appelez-nous	-
39	Y0315560		Brkt, Range Anti-tip		Appelez-nous	-
40	31750412		Screw, No.8-18x5/8 P Rd Hd (blk)		Appelez-nous	-
NI	Y0316652		Assy, Anti-tip Pack		Appelez-nous	-
