01 - Cabinet


02 - Cavity


03 - Maintop And Backguard

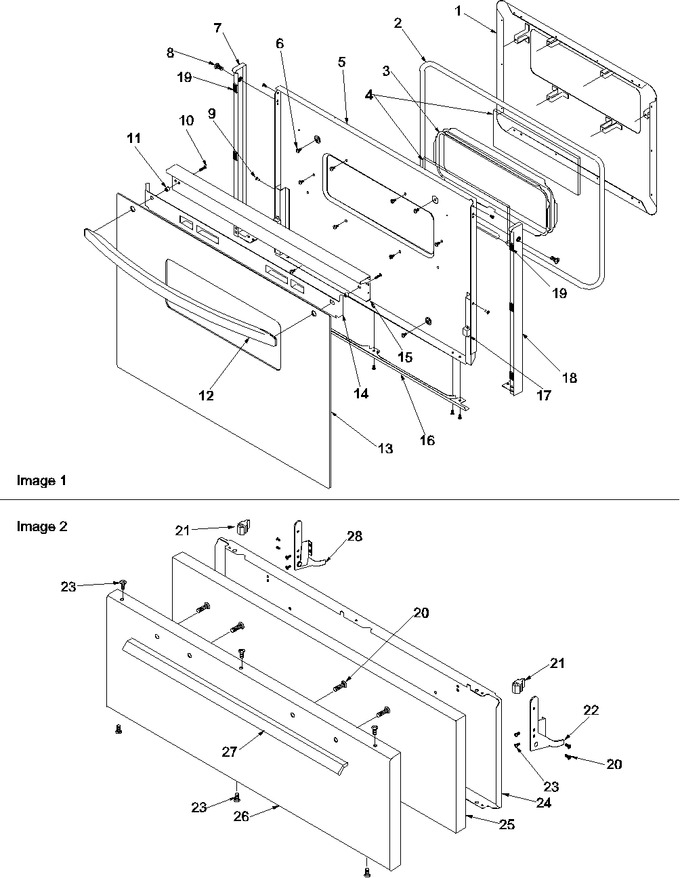

04 - Oven Door And Broiler Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316976CG		Pad, Door (enameled)		Appelez-nous	-
2	31715902		Gasket, Oven Door (67``)				$ 13.97
3	Y0316975		Frame, Window Pack		Appelez-nous	-
4	Y0316974		Glass, Double Coated		Appelez-nous	-
5	317011CG		Backer, Door (enameled)		Appelez-nous	-
6	31750706		Screw, No.8 X .375 Wafer Hd(blk)		Appelez-nous	-
7	309523W		End Cap, Door (lt-wht)		Appelez-nous	-
8	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
9	Y0302648		Rivet, Pop		Appelez-nous	-
10	31750525		Screw, 10-32 X 1.250`` Pan Hd		Appelez-nous	-
11	Y0309461		Bushing, Handle (nal)		Appelez-nous	-
12	31689503W		Handle, Oven Door (wht)		Appelez-nous	-
13	316227W		Glass, Oven Door (white)		Appelez-nous	-
14	31833201		Assy, Glass Heat Shield		Appelez-nous	-
15	31782104W		Trim, Door Top		Appelez-nous	-
16	309460W		Support, Glass (wht)		Appelez-nous	-
17	Y0309627		Bumper, Rubber		Appelez-nous	-
18	309522W		End Cap, Door (rt-wht)		Appelez-nous	-
19	0043184		Tape, Foam		Appelez-nous	-
20	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: 31750507)			Immediately	$ 6.85
21	WP71002097		Strike, Door   (Replaces: 31846001)				$ 11.12
22	31828101		Hinge, Low Broil Door R.h.		Appelez-nous	-
23	31750706		Screw, No.8 X .375 Wafer Hd(blk)		Appelez-nous	-
23	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
24	31883401CG		Liner, Door Pnl		Appelez-nous	-
25	31845401		Insulation, Broil Door		Appelez-nous	-
26	31831203W		Door, Low Broil		Appelez-nous	-
27	31819007W		Handle, Visor		Appelez-nous	-
28	31828102		Hinge, Low Broil Door L.h.		Appelez-nous	-
NI	0062614		Insulation,door-sub Backer		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
