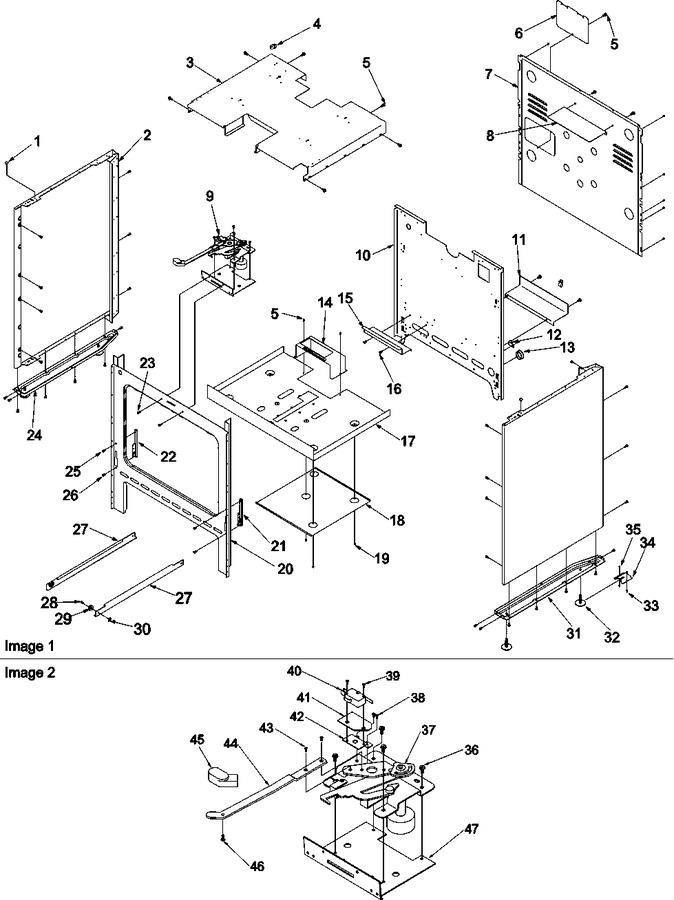

01 - Backguard And Gas Supply


02 - Cabinet


03 - Cavity


04 - Main Top


05 - Oven Door And Storage Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31717001		Spacer, Snap-in		Appelez-nous	-
2	31825102B		Panel, Side (blk)		Appelez-nous	-
3	31730801		Retainer, Top Insul		Appelez-nous	-
4	Y0091587		Cable, Clip Esm		Appelez-nous	-
5	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
6	31800001		Plate, Access		Appelez-nous	-
7	Y0315888		Cover, Rear		Appelez-nous	-
8	31791301		Shield, Krc Heat		Appelez-nous	-
9	Y00000000		See Note Assy, Manual Latch-gas(see Image 2)		Appelez-nous	-
10	31733101		Retainer, Rear Insul		Appelez-nous	-
11	Y0306827		Cover, Electrical		Appelez-nous	-
12	Y0074685		Wire Clamp, Insulated		Appelez-nous	-
13	308655B		Bushing, Snap (blk)		Appelez-nous	-
14	Y0302498		Cover, Ig/bake Burner		Appelez-nous	-
15	31782401		Wire Raceway		Appelez-nous	-
16	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
17	31719301		Retainer, Bot Insul		Appelez-nous	-
18	0059596		Shield		Appelez-nous	-
19	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
20	Y00000000		See Note Front Frame-short(not Field Replaceable)		Appelez-nous	-
21	Y0317068		Kit, Door Hinge(rh-ss)		Appelez-nous	-
22	31715201		Hinge, Oven Door (lt)		Appelez-nous	-
23	31750719		Screw, No.8-18 X .500 Ab (blk)		Appelez-nous	-
24	31854501		Brace, Leveling Leg (lt)		Appelez-nous	-
25	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: 31750507)			Immediately	$ 6.85
26	WP4159193		Screw, No.10-32 X 5/16 Pan Ph H   (Replaces: 31750521)				$ 4.29
27	31733201		Track, Mounting		Appelez-nous	-
28	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
29	31733401		Roller, Drawer				$ 5.75
30	M0282009		Nut   (Replaces: 31750128)				$ 12.06
31	31854502		Brace, Leveling Leg (rt)		Appelez-nous	-
32	314187B		Leg,leveling Xxx		Appelez-nous	-
33	Y0301555		Anchor, Plastic		Appelez-nous	-
34	Y0315560		Brkt, Range Anti-tip		Appelez-nous	-
35	31750412		Screw, No.8-18x5/8 P Rd Hd (blk)		Appelez-nous	-
36	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
37	31720201		Latch, Oven Door (gas)		Appelez-nous	-
38	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
39	Y0092365		Screw 4-40x1		Appelez-nous	-
40	Y0304579		Latch Switch Hi Temp		Appelez-nous	-
41	Y0091523		Insulation, Esm		Appelez-nous	-
42	Y0302316		Bracket, Switch		Appelez-nous	-
43	31750508		Screw, No.10-24x9/32 (ph Sems)		Appelez-nous	-
44	303040B		Handle, Door Latch (blk)		Appelez-nous	-
45	0302300		Knob, Latch Handle (blk)		Appelez-nous	-
46	Y0041769		Screw 6 32x5/16 Ph Fh		Appelez-nous	-
47	31848301		Bracket, Latch Mounting		Appelez-nous	-
NI	Y0316652		Assy, Anti-tip Pack		Appelez-nous	-
NI	Y0306654		Power Cord		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
