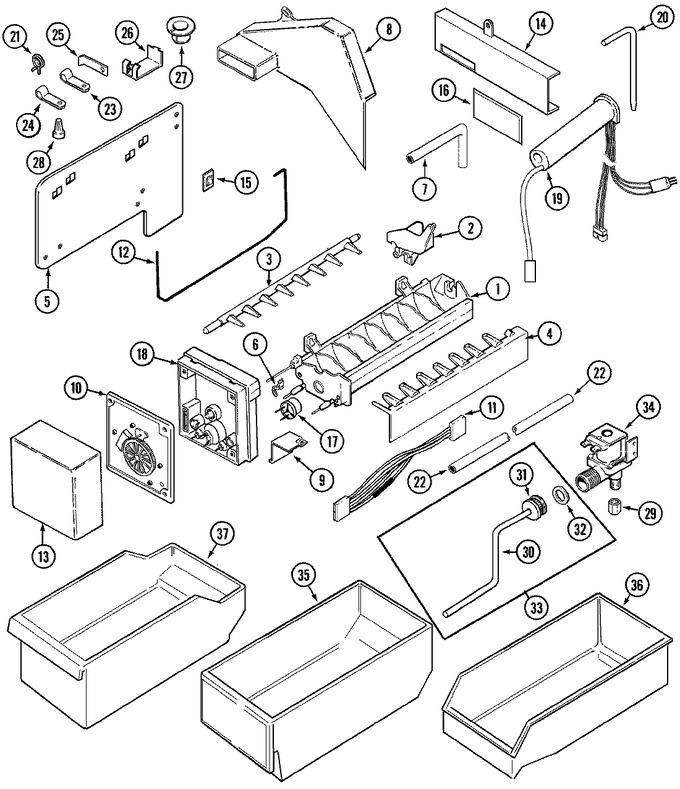

01 - Ice Maker Kit (side By Side)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7824706Q | Mold & Heater Assy. (Replaces: 95098-1) | 10 |
|
Immediately | $ 150.62 | |||
| 1 | 95099-1 | Grease, Silicone | 10 |
|
- | ||||
| 2 | WP628356 | Inlet, Water (Replaces: 95100-1) | 10 |
|
$ 46.07 | ||||
| 3 | WP627843 | Ejector, Ice (Replaces: 95101-1) | 10 |
|
$ 75.24 | ||||
| 4 | WP2182124 | Stripper, Ice (Replaces: 95102-1) | 10 |
|
$ 77.45 | ||||
| 5 | 61001600 | Tape, Double Back 3 X 3 | 10 |
|
- | ||||
| 5 | 61001596 | Mounting Plate, S.s. | 10 |
|
- | ||||
| 6 | WP2315522 | Retainer, Thermostat (Replaces: 95104-1) | 10 |
|
$ 9.95 | ||||
| 7 | 61001592 | Tube, Fill | 10 |
|
$ 26.52 | ||||
| 8 | 70198-3 | Duct, Air | 10 |
|
- | ||||
| 8 | WPW10253196 | Screw (Replaces: Y707113) | 10 |
|
$ 3.76 | ||||
| 9 | 61001594 | Bolt, 8/32 X 1/4 | 10 |
|
- | ||||
| 9 | WP489128 | Screw, Bracket (Replaces: 95108-1) | 10 |
|
$ 9.79 | ||||
| 9 | WP2256087 | Bracket, Module & Heater (Replaces: 95107-1) | 10 |
|
$ 83.70 | ||||
| 9 | 61001595 | Nut, 18-8 Hex Head | 10 |
|
$ 5.27 | ||||
| 10 | D7824706Q | Module, Ice Maker (Replaces: 95109-1) | 10 |
|
Immediately | $ 150.62 | |||
| 10 | WP3387230 | Screw, No.10 X .5 Tya (Replaces: 7101P274-60) | 10 |
|
Immediately | $ 7.69 | |||
| 11 | 61001593 | Wire Harness | 10 |
|
- | ||||
| 12 | W11807379 | Arm, Sensor (Replaces: 70142-1) | 10 |
|
Immediately | $ 54.18 | |||
| 13 | WPW10289690 | Cover Ice Maker (Replaces: 68113-1) | 10 |
|
Immediately | $ 7.56 | |||
| 14 | 61001597 | Baffle, Air | 10 |
|
- | ||||
| 15 | 67619-1 | Clip, Tube | 10 |
|
- | ||||
| 16 | 65706-1 | Insert | 10 |
|
$ 26.72 | ||||
| 17 | 95093-1 | Cement, Alumilastic (4 Oz.) | 10 |
|
$ 49.64 | ||||
| 17 | WP627985 | Thermostat (Replaces: 95092-1) | 10 |
|
Immediately | $ 98.26 | |||
| 18 | WP681249 | Screw (Replaces: 95106-1) | 10 |
|
Immediately | $ 7.07 | |||
| 18 | WP2195914 | Support, Module Housing (Replaces: 95103-1) | 10 |
|
$ 94.11 | ||||
| 19 | WP3196163 | Screw (Replaces: 402068-103) | 10 |
|
$ 6.26 | ||||
| 19 | 58397-3 | Wire Harness | 10 |
|
- | ||||
| 20 | 66759-1 | Tube | 10 |
|
- | ||||
| 21 | 60333-1 | Clamp, Spring | 10 |
|
- | ||||
| 22 | WPB5705307 | Tube (Replaces: 55602-14) | 10 |
|
$ 11.19 | ||||
| 23 | W10833902 | Clamp, Tubing (Replaces: 53516-8) | 10 |
|
$ 9.89 | ||||
| 23 | W11233072 | Screw (Replaces: 402019-103) | 10 |
|
Immediately | $ 12.62 | |||
| 24 | 405012-103 | Screw | 10 |
|
- | ||||
| 24 | WP488366 | Clamp, Feeder Tube (Replaces: 23197-8) | 10 |
|
$ 10.06 | ||||
| 25 | 58443-1 | Clamp | 10 |
|
- | ||||
| 25 | 405012-103 | Screw | 10 |
|
- | ||||
| 26 | 57112-1 | Clip | 10 |
|
- | ||||
| 27 | 53122-4 | Grommet | 10 |
|
- | ||||
| 28 | 1555240 | 1/4`` Wire Nut | 10 |
|
- | ||||
| 29 | 4318047 | Valve (Replaces: 55996-5) | 10 |
|
Immediately | $ 66.68 | |||
| 29 | WP250830 | Screw (Replaces: 401017-1) | 10 |
|
$ 7.16 | ||||
| 30 | 53855-4 | Inlet Tube Asm | 10 |
|
- | ||||
| 31 | 24685-1 | Nut, Inlet Tubing | 10 |
|
- | ||||
| 32 | Y013783 | Gasket, Inlet Hose | 10 |
|
$ 18.72 | ||||
| 33 | RA95046-1 | Tube Inlet Asm | 10 |
|
- | ||||
| 34 | WP627018 | Nut, Compression (1/4``) (Replaces: 69583-1) | 10 |
|
$ 9.87 | ||||
| 35 | 65065-2 | Pan | 10 |
|
- | ||||
| 36 | 65068-4 | Pan | 10 |
|
- | ||||
| 37 | 66592-1 | Pan | 10 |
|
- |
