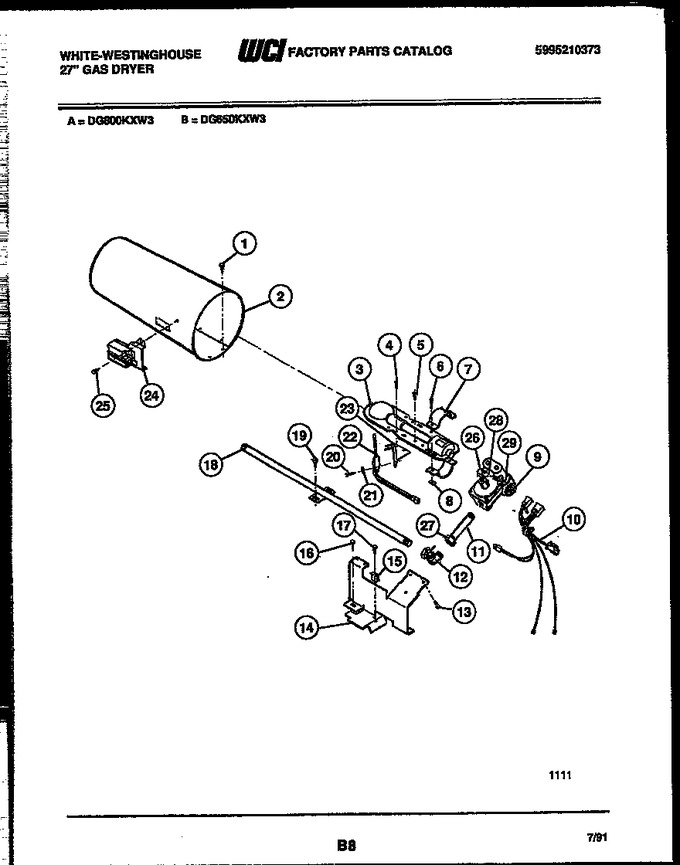

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3010202 | Screw (2) |
|
- | |||||
| 2 | 3201240 | Burner Tube Assy (1) |
|
- | |||||
| 3 | 3281136 | Burner Assy (1) |
|
- | |||||
| 4 | 3281132 | Screw (6) |
|
- | |||||
| 7 | 3281138 | Air Shutter (2) |
|
- | |||||
| 8 | 3281148 | Nut (2) |
|
- | |||||
| 9 | 3281147 | Valve (1) |
|
- | |||||
| 10 | 3281137 | Harness (1) |
|
- | |||||
| 11 | 08015421 | Union Male Connection (1) |
|
- | |||||
| 12 | 3281146 | Angle Valve (1) |
|
- | |||||
| 13 | 3281132 | Screw (3) |
|
- | |||||
| 14 | 3201353 | Bracket (1) |
|
- | |||||
| 15 | 3281126 | Clip (1) |
|
- | |||||
| 16 | 3010202 | Screw (1) |
|
- | |||||
| 17 | 3010202 | Screw (1) |
|
- | |||||
| 18 | 08015271 | Pipe (1) |
|
- | |||||
| 19 | 3010202 | Screw (2) |
|
- | |||||
| 20 | 3281150 | Screw (1) |
|
- | |||||
| 21 | 3201209 | Washer (1) |
|
- | |||||
| 22 | 3281151 | Ignitor (1) |
|
- | |||||
| 23 | 3281149 | Bracket-ignitor (1) |
|
- | |||||
| 24 | 3281135 | Sensor (1) |
|
- | |||||
| 25 | 3281035 | Screw (1) |
|
- | |||||
| 26 | 3201241 | Orifice-nat Gas (1) |
|
- | |||||
| 26 | 3201242 | Orifice (mfd Gas) (1) |
|
- | |||||
| 26 | 3201265 | Lp Gas Kit (1) |
|
- | |||||
| 27 | 08015194 | Union Hex Nut (1) |
|
- | |||||
| 28 | 3201243 | Coil-secondary (1) |
|
- | |||||
| 29 | 3201244 | Coil-booster (1) |
|
- |
