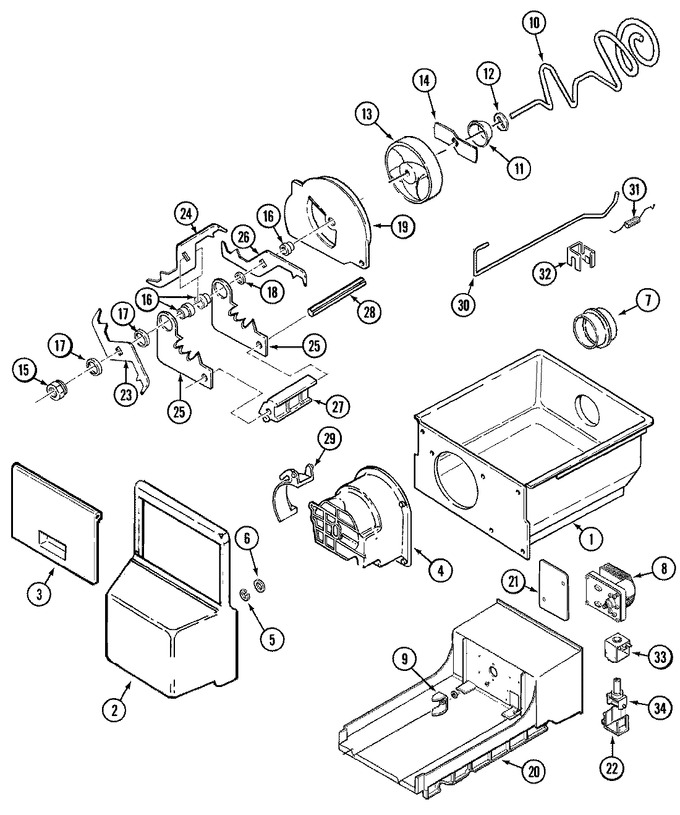

01 - Crusher Bin & Enclosure Assy. (115v)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12001685 | Crusher Bin/enclosure (23-25`) |
|
- | ||||||
| 1 | 61004802 | Bin, Ice | 10 |
|
- | ||||
| 2 | 61004803 | Front, Ice Bin | 10 |
|
$ 69.78 | ||||
| 2 | 489392 | Screw (Replaces: 415013-35) | 10 |
|
$ 12.02 | ||||
| 3 | 61004300 | Door, Ice Access | 10 |
|
- | ||||
| 4 | 489392 | Screw (Replaces: 415013-35) | 10 |
|
$ 12.02 | ||||
| 4 | 61004804 | Housing, Crusher | 10 |
|
- | ||||
| 4 | 61004869 | Seal | 10 |
|
- | ||||
| 5 | 69704-1 | Ring, Snap | 10 |
|
- | ||||
| 6 | 489234 | Washer, Retainer (Replaces: 69703-1) | 10 |
|
$ 12.03 | ||||
| 7 | 61003336 | Ring, Drive | 10 |
|
$ 24.08 | ||||
| 8 | 61004805 | Wire Harness, Auger Motor | 10 |
|
- | ||||
| 8 | 2006253 | Screw (Replaces: 61003324) | 10 |
|
$ 12.12 | ||||
| 8 | 12001773 | Assy., Auger Motor/yoke | 10 |
|
$ 312.61 | ||||
| 9 | WP63052-2 | Yoke, Ice Dispenser (Replaces: 63052-1) | 10 |
|
Immediately | $ 62.02 | |||
| 10 | 61003326 | Auger | 10 |
|
- | ||||
| 11 | 69699-1 | Cone, Ice Deflector | 10 |
|
- | ||||
| 12 | 69698-1 | Washer, Cone Stop | 10 |
|
- | ||||
| 13 | 70036-1 | Impeller | 10 |
|
- | ||||
| 14 | 69755-1 | Plate, Drive | 10 |
|
- | ||||
| 15 | 69709-1 | Nut, Auger | 10 |
|
- | ||||
| 16 | 69697-1 | Bearing, Spacer | 10 |
|
- | ||||
| 17 | 69696-1 | Spacer, Crusher Blade | 10 |
|
- | ||||
| 18 | 69696-2 | Spacer, Blade | 10 |
|
- | ||||
| 19 | 69701-1 | Plate, Impeller | 10 |
|
- | ||||
| 20 | 61005614 | Enclosure, Ice (Replaces: 61004846) | 10 |
|
$ 178.89 | ||||
| 21 | 61004850 | Shield, Wire | 10 |
|
- | ||||
| 22 | W11233072 | Screw (Replaces: 400026-12) | 10 |
|
Immediately | $ 12.62 | |||
| 22 | 69715-1 | Guide, Yoke | 10 |
|
$ 5.85 | ||||
| 23 | 69702-3 | Blade, Crusher | 10 |
|
- | ||||
| 24 | 69702-2 | Blade, Crusher | 10 |
|
- | ||||
| 25 | 69706-1 | Blade, Crusher | 10 |
|
- | ||||
| 26 | 69702-1 | Blade, Crusher | 10 |
|
- | ||||
| 27 | 69708-1 | Lock, Fixed Blade | 10 |
|
- | ||||
| 28 | 69705-1 | Pin, Blade Lock | 10 |
|
- | ||||
| 29 | 69718-1 | Door, Ice Crusher | 10 |
|
- | ||||
| 30 | 61004807 | Rod, Crusher Control | 10 |
|
- | ||||
| 31 | 61004808 | Spring, Control Rod | 10 |
|
- | ||||
| 32 | 61004809 | Bracket, Control Rod | 10 |
|
- | ||||
| 33 | 61003118 | Solenoid | 10 |
|
- | ||||
| 33 | 2006253 | Screw (Replaces: 61003324) | 10 |
|
$ 12.12 | ||||
| 34 | 61003539 | Yoke Assy. | 10 |
|
- |
