New Model Search:

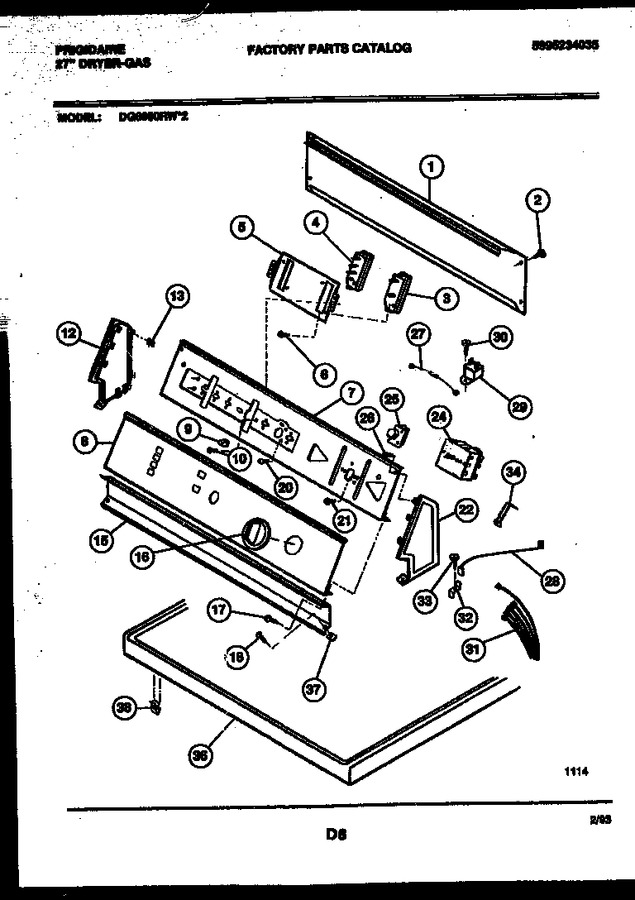

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303284440 | Back Cover |
|
- | |||||
| 2 | 5303281035 | Screw (4) |
|
- | |||||
| 3 | 5308010818 | Switch-2 Pushbutton |
|
- | |||||
| 4 | 5303201323 | Switch-4 Pushbutton |
|
- | |||||
| 5 | 3201324 | Bracket, Switch Support |
|
- | |||||
| 6 | 08010804 | Screw (4) |
|
- | |||||
| 7 | 131013300 | Control Mounting Bracket |
|
- | |||||
| 8 | 131098800 | Panel-control |
|
- | |||||
| 9 | 5303280417 | Pushbutton Switch (6) |
|
- | |||||
| 10 | 08004660 | Screw (3) |
|
- | |||||
| 12 | 5303270198 | End Cap-lh |
|
- | |||||
| 13 | 5308014350 | Clip-end Cap (8) |
|
- | |||||
| 15 | 131021500 | Trimplate Lower |
|
- | |||||
| 16 | 5303286644 | Timer Knob |
|
- | |||||
| 17 | 08010782 | Screw (3) |
|
- | |||||
| 18 | 5393279343 | Screw (2) |
|
- | |||||
| 20 | 08001544 | Screw |
|
- | |||||
| 21 | 218359202 | Screw (2) (Replaces: 5303283289) |
|
$ 10.63 | |||||
| 22 | 5303270200 | End Cap-rh |
|
- | |||||
| 24 | 131062700 | Timer |
|
- | |||||
| 25 | 5303210198 | Switch-start |
|
- | |||||
| 26 | 08010789 | Screw (2) |
|
- | |||||
| 27 | 5308015784 | Register |
|
- | |||||
| 28 | 3201385 | Ground Wire |
|
- | |||||
| 29 | 5308004087 | Buzzer |
|
- | |||||
| 30 | 08010804 | Screw |
|
- | |||||
| 31 | 131099100 | Harness |
|
- | |||||
| 32 | 5379171000 | Terminal |
|
- | |||||
| 33 | 08001689 | Screw |
|
- | |||||
| 34 | 08014349 | Ground Strap |
|
- | |||||
| 36 | 5303273261 | Panel-top-white |
|
- | |||||
| 37 | 5300503065 | Clip (2) |
|
$ 6.09 | |||||
| 38 | 3205821 | Spring Catch (2) |
|
Immediately | $ 35.44 | ||||
| 31A | 5303281103 | Wire Tie Harness (3) (non-illustrated) |
|
- |
