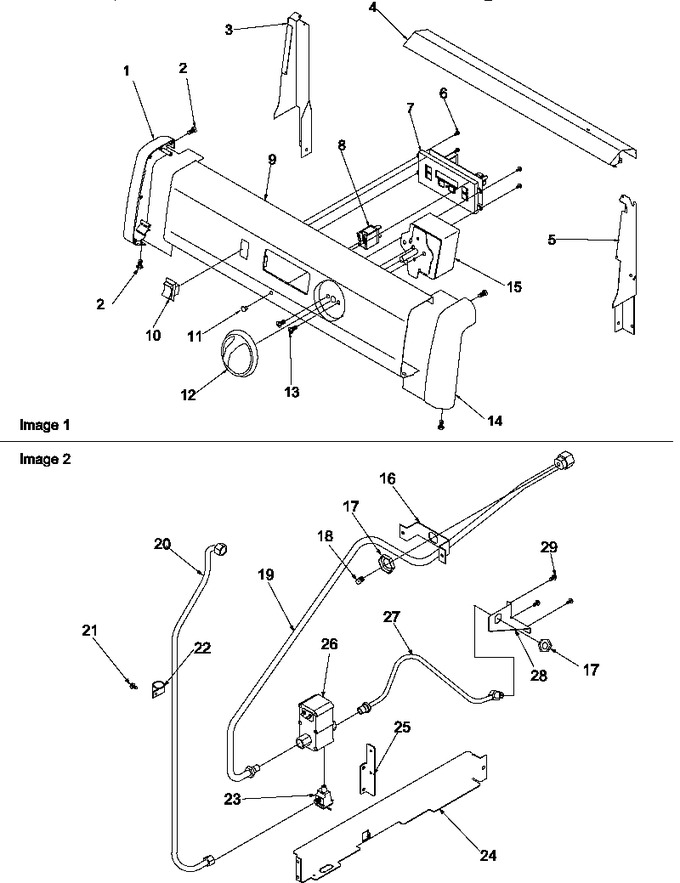

01 - Backguard And Gas Supply


02 - Cabinet


03 - Cavity


04 - Main Top


05 - Oven Door And Storage Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	315843W		End Cap Lh				$ 29.45
2	31750309		Screw, No.6-20 X .375 Pan Hd		Appelez-nous	-
3	315877W		Bkgd. Support-lh		Appelez-nous	-
4	31722702B		Shield, Bkgd Trim Heat		Appelez-nous	-
5	315876W		Bkgd. Support-rh		Appelez-nous	-
6	31750409		Screw, No.8-18 X 1/4 Ptrshd(blk)		Appelez-nous	-
7	315568W		Assy, Mylar & Clean Timer		Appelez-nous	-
8	31722801		Light, Indicator (125v)		Appelez-nous	-
9	315957W		Panel, Bkgrd (white)		Appelez-nous	-
10	301491W		Switch, Rocker		Appelez-nous	-
11	Y0316265		Lens, Indicator		Appelez-nous	-
12	315990W		Knob, Thermostat Select (wht)		Appelez-nous	-
13	31750714		Screw, No.8-32 X 1/4		Appelez-nous	-
14	315841W		End Cap Rh				$ 24.87
15	31770401		Thermostat, Gas		Appelez-nous	-
16	Y0315018		Brkt, Broil Orifice		Appelez-nous	-
17	31750116		Nut, Pal 3/4-16 X 1.062		Appelez-nous	-
18	Y0060043		Orifice, No.52 Nat		Appelez-nous	-
18	Y0063061		Orifice, No.58 Lp		Appelez-nous	-
19	Y0316210		Tubing, Valve To Broil		Appelez-nous	-
20	Y0316790		Tubing Assy		Appelez-nous	-
21	31750308		Screw, No.6-32 X .375 Panhd(blk)		Appelez-nous	-
22	Y0091587		Cable, Clip Esm		Appelez-nous	-
23	0306428		Valve, Shutoff		Appelez-nous	-
24	Y0316216		Brkt, Dual Valve		Appelez-nous	-
25	Y0316789		Brk`t, Gas Valve		Appelez-nous	-
26	Y0316220		Valve, Gas				$ 167.19
27	Y0316791		Tubing, Orifice Assy		Appelez-nous	-
28	Y0316251		Brkt, Bake Venturi		Appelez-nous	-
29	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
NI	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
NI	31750420		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
NI	M0282005		Nut, Hex .562   (Replaces: 31750113)				$ 7.07
