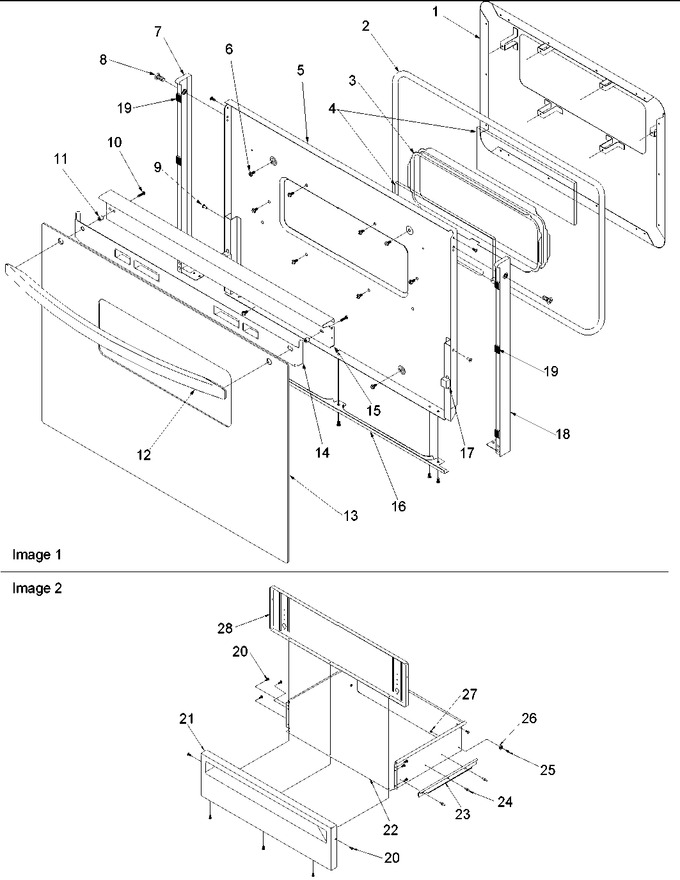

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316976CG		Pad, Door (enameled)		Appelez-nous	-
2	31715902		Gasket, Oven Door (67``)				$ 13.97
3	Y0316975		Frame, Window Pack		Appelez-nous	-
4	Y0316974		Glass, Double Coated		Appelez-nous	-
5	317011CG		Backer, Door (enameled)		Appelez-nous	-
6	31750706		Screw, No.8 X .375 Wafer Hd(blk)		Appelez-nous	-
7	309523L		End Cap, Door (lt-alm)		Appelez-nous	-
8	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
9	Y0302648		Rivet, Pop		Appelez-nous	-
10	31750525		Screw, 10-32 X 1.250`` Pan Hd		Appelez-nous	-
11	Y0309461		Bushing, Handle (nal)		Appelez-nous	-
12	31689502L		Handle, Oven Door (alm)		Appelez-nous	-
13	316227L		Glass, Oven Door (almond)		Appelez-nous	-
14	31833201		Assy, Glass Heat Shield		Appelez-nous	-
15	31782103L		Trim, Door Top		Appelez-nous	-
16	309460L		Support, Glass (alm)		Appelez-nous	-
17	Y0309627		Bumper, Rubber		Appelez-nous	-
18	309522L		End Cap, Door (rt-alm)		Appelez-nous	-
19	0043184		Tape, Foam		Appelez-nous	-
20	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
21	309176L		Panel, Drawer (alm)		Appelez-nous	-
22	31733502W		Drawer, Storage (wht)		Appelez-nous	-
23	31733301		Track, Storage Drawer		Appelez-nous	-
24	Y0097822		Rivet, Pop		Appelez-nous	-
25	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
26	31733401		Roller, Drawer				$ 5.75
27	WP3400029		Nut, Hex Keps No.10-32   (Replaces: 31750103)			Immediately	$ 6.98
28	309178B		Liner, Drawer Panel (blk)		Appelez-nous	-
