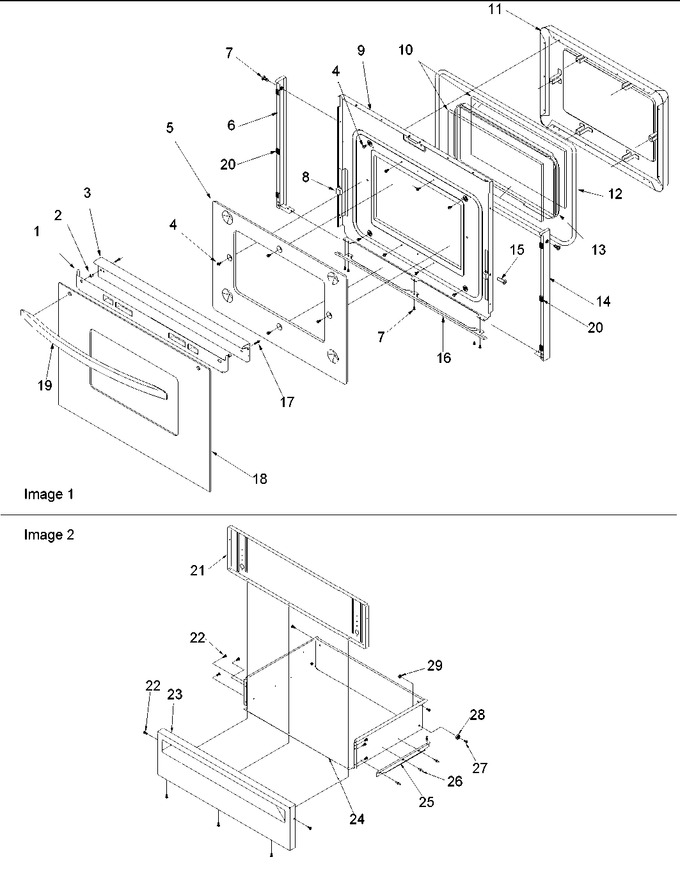

06 - Oven Door And Storage Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31833201		Assy, Glass Heat Shield		Appelez-nous	-
2	Y0309461		Bushing, Handle (nal)		Appelez-nous	-
3	31782105C		Trim,door Top(bisque)		Appelez-nous	-
5	Y0309068		Shield, Heat		Appelez-nous	-
8	Y0309627		Bumper, Rubber		Appelez-nous	-
9	317023CG		Backer, Oven Door		Appelez-nous	-
10	Y0317019		Glass, Door		Appelez-nous	-
11	317021CG		Pad, Oven Door		Appelez-nous	-
12	31715902		Gasket, Oven Door (67``)				$ 13.97
13	Y0317020		Frame, Window Pack		Appelez-nous	-
14	309522C		End Cap, Door (rt-bsq)		Appelez-nous	-
15	Y0302648		Rivet, Pop		Appelez-nous	-
16	309460C		Support, Glass (bsq)		Appelez-nous	-
17	31750525		Screw, 10-32 X 1.250`` Pan Hd		Appelez-nous	-
18	316238C		Glass, Oven Door (bsq)		Appelez-nous	-
19	31689505C		Handle, Oven Door (bsq)		Appelez-nous	-
20	0043184		Tape, Foam		Appelez-nous	-
21	31927401B		Liner, Drawer Panel (blk)		Appelez-nous	-
23	309176C		Panel, Drawer (bsq)		Appelez-nous	-
24	31733502W		Drawer, Storage (wht)		Appelez-nous	-
25	31733301		Track, Storage Drawer		Appelez-nous	-
26	Y0097822		Rivet, Pop		Appelez-nous	-
27	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
28	31733401		Roller, Drawer				$ 5.75
29	M0282009		Nut   (Replaces: 31750128)				$ 12.06
NI	Y0309434		Label, Cleaning Caution Fr/eng		Appelez-nous	-
NI	Y0309772		Insulation,oven Door		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
