01 - Backguard And Gas Supply


02 - Cabinet


03 - Cavity


04 - Main Top


05 - Miscellaeous Information


06 - Oven Door And Storage Door

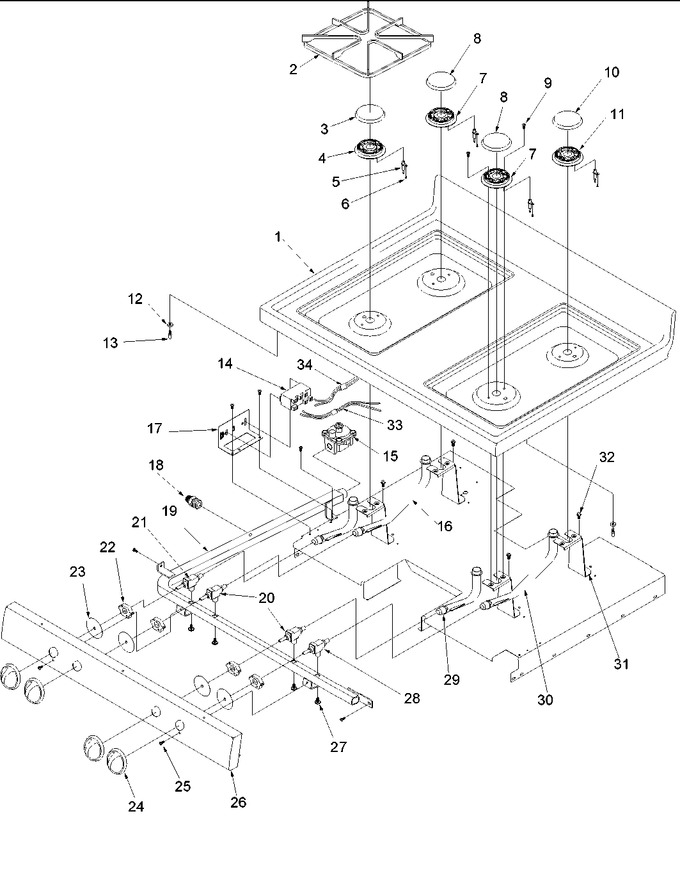

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	315102L		Main Top,gas,deep Sump		Appelez-nous	-
2	31719101MB		Grate, Single Cast-m.blk		Appelez-nous	-
3	WP8284669		Cap, Burner 5k (matte Blk)   (Replaces: 31782501MB)			Immediately	$ 64.79
4	Y0315769		Top Burner (small 5k)				$ 50.30
5	WPY0316773		Electrode, Spark Ignition   (Replaces: Y0316773)			Immediately	$ 37.13
6	Y0316775		Screw, Electrode		Appelez-nous	-
7	Y0315767		Top Burner (large 12/13k)		Appelez-nous	-
8	31782701MB		Cap, Burner 12/13k (matte Blk)				$ 35.43
10	31782601MB		Cap, Burner 9k (matte Blk)		Appelez-nous	-
11	WPY0315768		Top Burner (medium 9k)   (Replaces: Y0315768)				$ 128.48
12	Y0062445		Spacer, Nylon (.14``)		Appelez-nous	-
13	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
14	0315154		Spark Module, 4+0		Appelez-nous	-
15	Y0308866		Regulator, Pressure		Appelez-nous	-
16	Y0316291		Tube, Venturi-left Rear		Appelez-nous	-
17	Y0315097		Brkt, Spark Module		Appelez-nous	-
18	Y0301263		Fitting, 1/8``x 3/8``		Appelez-nous	-
19	Y0316219		Pipe, Manifold		Appelez-nous	-
20	Y0315962		Valve, Top 12k Btu		Appelez-nous	-
21	Y0315960		Valve, Gas 270 Deg (5k Btu)		Appelez-nous	-
22	WPY0316572		Switch, Spark 270` Mini Vlv   (Replaces: Y0316572)				$ 104.05
23	Y0316741		Shield, Switch		Appelez-nous	-
24	31760403L		Knob, Top Burner (alm)		Appelez-nous	-
26	315989L		Pnl, Manifold (almond)		Appelez-nous	-
27	31750712		Screw, Valve 2ax .415		Appelez-nous	-
28	Y0315961		Valve, Gas 270 Deg				$ 109.15
29	Y0316206		Tube, Venturi-front		Appelez-nous	-
30	0316207		Tube, Venturi-right Rear		Appelez-nous	-
31	Y0316218		Brkt, Venturi Mtg		Appelez-nous	-
33	Y0316743		Harness, Spark Module (20``)		Appelez-nous	-
34	Y0316742		Harness, Spark Module (31``)		Appelez-nous	-
NI	31750708		Screw, Shoulder		Appelez-nous	-
NI	31730101		Clip, Tinnerman		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
