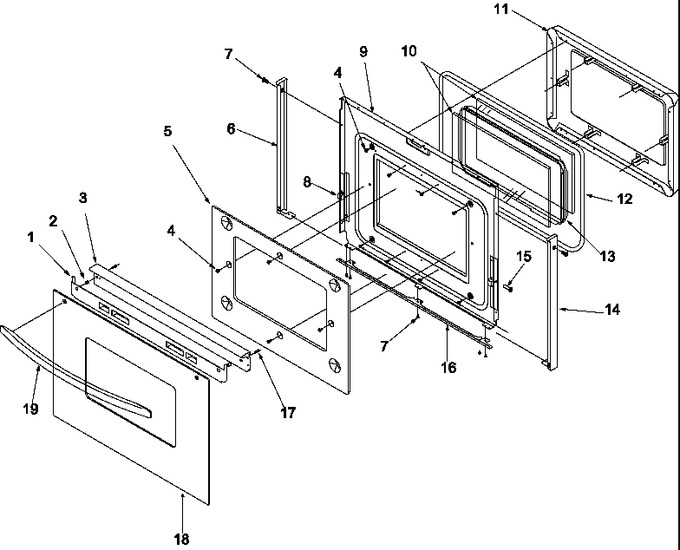

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316981B		Assy, Glass Heat Shield		Appelez-nous	-
2	309461B		Bushing, Handle (blk)		Appelez-nous	-
3	316980B		Trim, Door Top		Appelez-nous	-
4	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
5	Y0309068		Shield, Heat		Appelez-nous	-
6	309523B		End Cap, Door (lt-blk)		Appelez-nous	-
7	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
7	Y0303777		Screw No.8-18 X .375 (bl)		Appelez-nous	-
8	Y0309627		Bumper, Rubber		Appelez-nous	-
9	315983CG		Liner, Oven Door		Appelez-nous	-
10	Y0317019		Glass, Door		Appelez-nous	-
11	317021CG		Pad, Oven Door		Appelez-nous	-
12	31715902		Gasket, Oven Door (67``)				$ 13.97
13	Y0317020		Frame, Window Pack		Appelez-nous	-
14	309522B		End Cap, Door (rt-blk)		Appelez-nous	-
15	Y0302648		Rivet, Pop		Appelez-nous	-
16	309460B		Support, Glass (blk)		Appelez-nous	-
17	Y0316239		Screw, 10-32 X 1.250`` Pan Hd		Appelez-nous	-
18	316238B		Glass, Oven Door (blk)		Appelez-nous	-
19	316792B		Handle, Door (blk)		Appelez-nous	-
NI	Y0309434		Label, Cleaning Caution Fr/eng		Appelez-nous	-
NI	Y0309772		Insulation,oven Door		Appelez-nous	-
