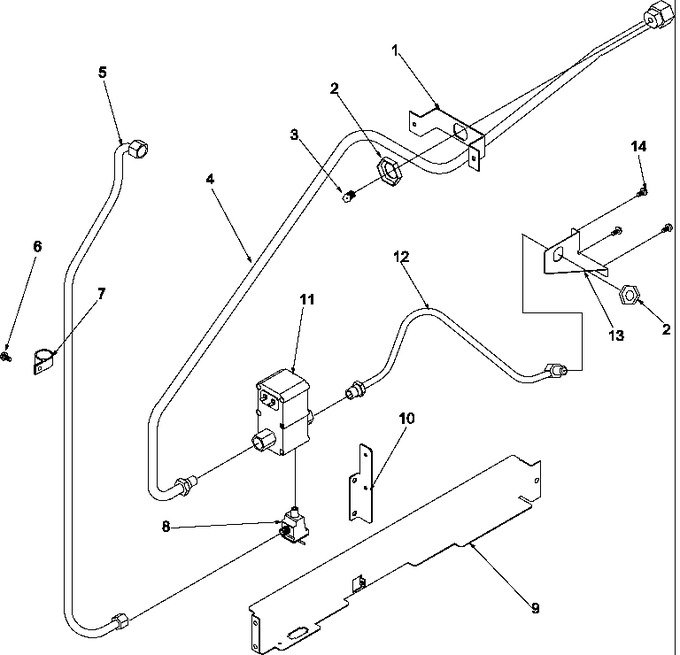

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0315018		Brkt, Broil Orifice		Appelez-nous	-
2	Y0097871		Nut, Pal 3/4-16 X 1.062		Appelez-nous	-
3	Y0063061		Orifice, No.58 Lp		Appelez-nous	-
3	Y0060043		Orifice, No.52 Nat		Appelez-nous	-
4	Y0316210		Tubing, Valve To Broil		Appelez-nous	-
5	Y0316790		Tubing Assy		Appelez-nous	-
6	Y0072230		Screw No.6-32 X 3/8		Appelez-nous	-
7	Y0068513		Clamp, Wire-insulate		Appelez-nous	-
8	0306428		Valve, Shutoff		Appelez-nous	-
9	Y0316216		Brkt, Dual Valve		Appelez-nous	-
10	Y0316789		Brk`t, Gas Valve		Appelez-nous	-
11	Y0316220		Valve, Gas				$ 167.19
12	Y0316791		Tubing, Orifice Assy		Appelez-nous	-
13	Y0316251		Brkt, Bake Venturi		Appelez-nous	-
14	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
NI	M0282005		Nut K   (Replaces: Y0078790)				$ 7.07
