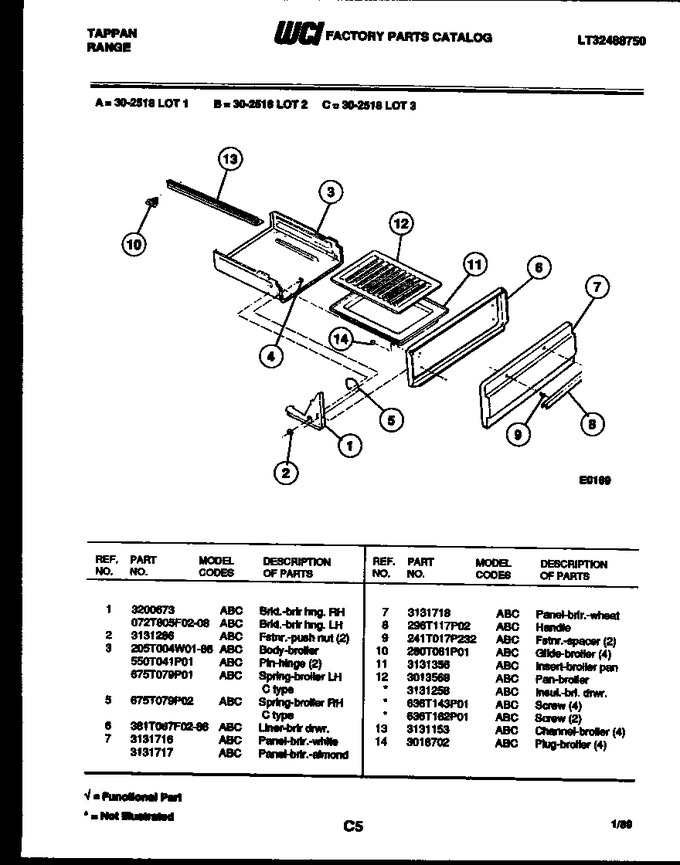

02 - Backguard And Control Parts
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3200673 | Brkt.-brlr Hng. Rh |
|
- | |||||
| 2 | 3131286 | Fstnr.-push Nut (2) |
|
- | |||||
| 3 | 205T004W01-86 | Body, Broiler |
|
- | |||||
| 5 | 675T079P02 | Spring, Broiler, Rh (c Type) |
|
- | |||||
| 6 | 381T087F02-86 | Liner-brlr Drwr |
|
- | |||||
| 7 | 3131718 | Panel-brlr.-wheat |
|
- | |||||
| 8 | 296T117P02 | Handle |
|
- | |||||
| 9 | 241T017P232 | Fstnr-spacer (2) |
|
- | |||||
| 10 | 280T061P01 | Glide-broiler (4) |
|
- | |||||
| 11 | 3131356 | Insert, Broiler Pan |
|
- | |||||
| 12 | 3013568 | Pan, Broiler |
|
- | |||||
| 13 | 3131153 | Channel, Broiler (4) |
|
- | |||||
| 14 | 3018702 | Plug - Broiler (4) |
|
- | |||||
| 12A | 3131258 | Insul, Brl, Drwr (non-illustrated) |
|
- | |||||
| 12B | 636T143P01 | Screw |
|
- | |||||
| 12C | 636T162P01 | Screw (2) (non-illustrated) |
|
- | |||||
| 1A | 072T805F02-08 | Bracket, Broiler Hinge |
|
- | |||||
| 3A | 550T041P01 | Pin, Hinge (2) |
|
- | |||||
| 3B | 675T079P01 | Spring, Broiler, Lh (c Type) |
|
- |
