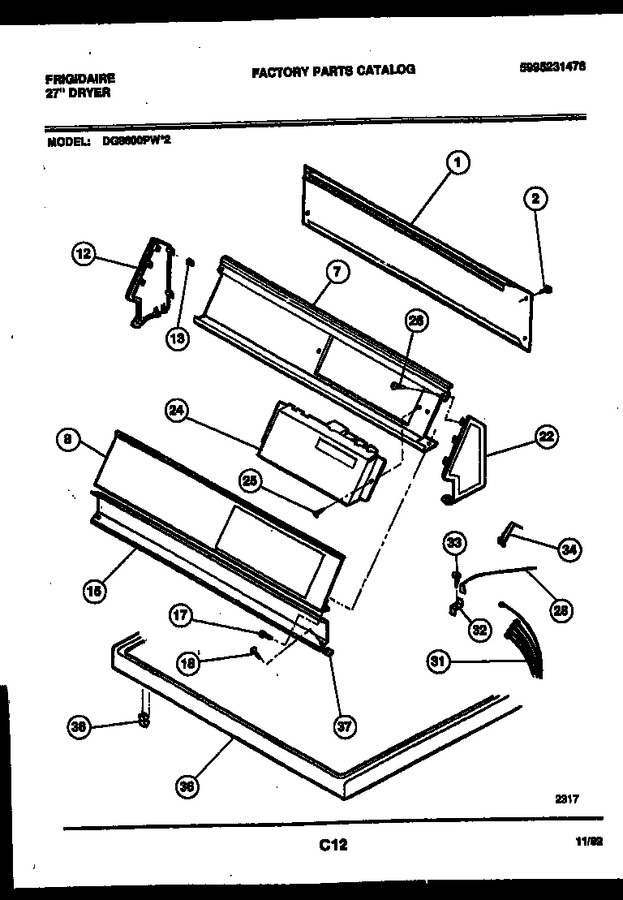

02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts
05 - Blower And Drive Parts
06 - Burner, Igniter And Valve
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201322 | Backsheet |
|
- | |||||
| 2 | 5303015671 | Screw (4) |
|
- | |||||
| 7 | 5303279279 | Bracket-control |
|
- | |||||
| 8 | 5303279276 | Panel-control |
|
- | |||||
| 12 | 5303270198 | End Cap-lh |
|
- | |||||
| 13 | 5308014350 | Clip-end Cap (8) |
|
- | |||||
| 15 | 5303279349 | Trimplate-lower |
|
- | |||||
| 17 | 5303279341 | Screw (3) |
|
- | |||||
| 18 | 5303279343 | Screw |
|
- | |||||
| 22 | 5303270200 | End Cap-rh |
|
- | |||||
| 24 | 5303279365 | Control-dryer |
|
- | |||||
| 25 | 5303161233 | Screw |
|
- | |||||
| 26 | 08010789 | Screw |
|
- | |||||
| 28 | 3201385 | Ground Wire |
|
- | |||||
| 31 | 5303279370 | Harness |
|
- | |||||
| 32 | 5379171000 | Terminal |
|
- | |||||
| 33 | 08001689 | Screw |
|
- | |||||
| 34 | 08014349 | Ground Strap |
|
- | |||||
| 36 | 5303273261 | Panel-top-white |
|
- | |||||
| 37 | 5300503065 | Nut |
|
$ 6.09 | |||||
| 38 | 3205821 | Spring Catch |
|
Immediately | $ 35.44 | ||||
| 31A | 5303281103 | Wire-tee (non-illustrated) |
|
- |
