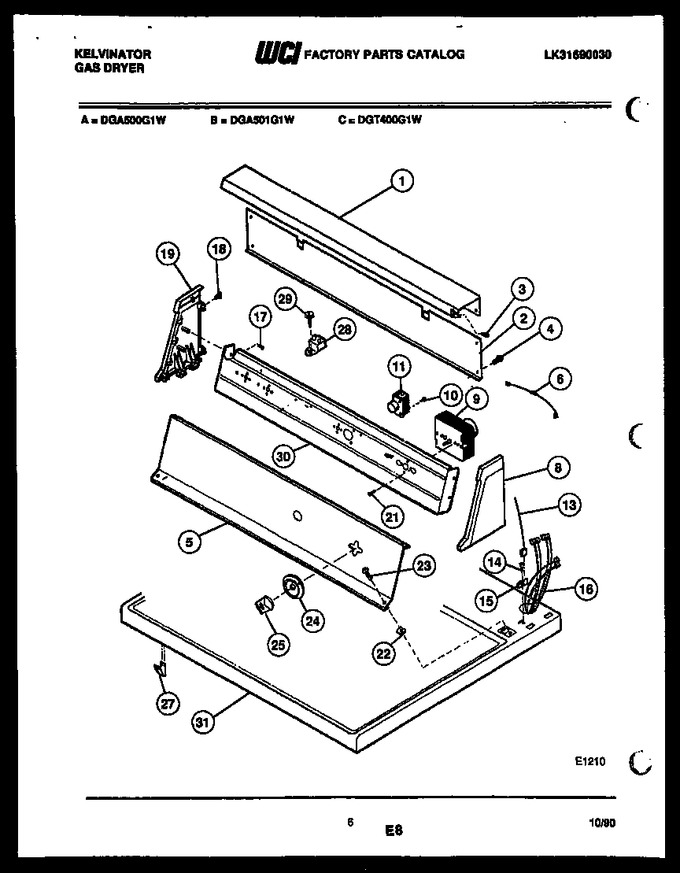

02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts
05 - Blower And Drive Parts
06 - Burner, Igniter And Valve
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201609 | Top Cover |
|
- | |||||
| 2 | 3201349 | Backsheet |
|
- | |||||
| 3 | 5308010825 | Clip (3) |
|
- | |||||
| 4 | 5303015671 | Screw (5) |
|
- | |||||
| 5 | 3206002 | Panel - Control |
|
- | |||||
| 6 | 5308015784 | Resistor |
|
- | |||||
| 8 | 3206005 | End Cap - Rh |
|
- | |||||
| 9 | 3201336 | Timer |
|
- | |||||
| 10 | 08010804 | Screw |
|
- | |||||
| 11 | 5303207383 | Switch - Push To Start |
|
- | |||||
| 13 | 3201385 | Ground Wire |
|
- | |||||
| 14 | 08001689 | Screw |
|
- | |||||
| 15 | 5379171000 | Terminal |
|
- | |||||
| 16 | 3206006 | Harness |
|
- | |||||
| 17 | 5303161244 | Screw (4) |
|
- | |||||
| 18 | 5303210923 | Clip (4) |
|
- | |||||
| 19 | 3206007 | End Cap - Lh |
|
- | |||||
| 21 | 3161188 | Screw |
|
- | |||||
| 22 | 5300503065 | Clip |
|
$ 6.09 | |||||
| 23 | 3205820 | Screw |
|
- | |||||
| 24 | 5308015702 | Pointer |
|
- | |||||
| 25 | 5303206987 | Knob Timer |
|
$ 52.66 | |||||
| 27 | 3205821 | Spring Clip |
|
Immediately | $ 35.44 | ||||
| 30 | 3205822 | Bracket-control |
|
- | |||||
| 31 | 5303210109 | Panel - Top - White |
|
- | |||||
| 13A | 5303212827 | Ground Clip (non-illustrated) |
|
- | |||||
| 16A | 5303281103 | Wire Tie (non-illustrated) |
|
- |
