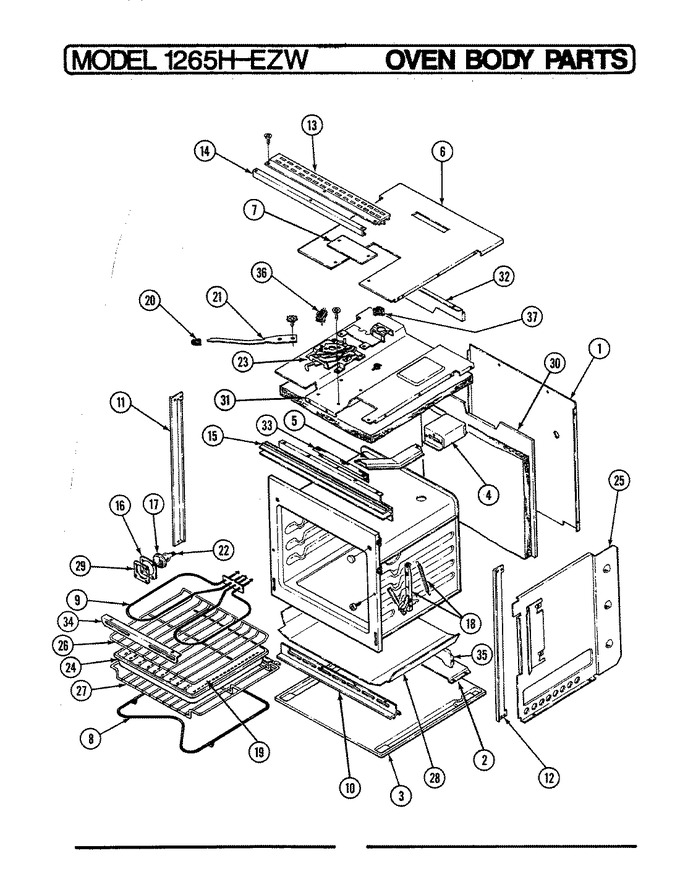

01 - Body
02 - Control Panel
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F039-51 | Back Main | 1 |
|
- | ||||
| 2 | 3601F005-80 | Baffle, Base | 1 |
|
- | ||||
| 3 | 4003F011-20 | Base, Wall Oven | 1 |
|
- | ||||
| 4 | 4006W046-15 | Box, Vent | 1 |
|
- | ||||
| 5 | 3818W002-15 | Channel, Vent Assembly | 1 |
|
- | ||||
| 6 | 4005F202-51 | Cover, Box | 1 |
|
- | ||||
| 7 | 4005F160-45 | Cover, Lock | 1 |
|
- | ||||
| 8 | WPY04000066 | Element Bake (Replaces: 7406P013-60) | 1 |
|
Immediately | $ 70.53 | |||
| 9 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 1 |
|
$ 160.58 | ||||
| 10 | 7706P153-60 | Extrusion, Bottom (blk) | 1 |
|
- | ||||
| 11 | 7750P016-60 | Extrusion, Side-l | 5 |
|
- | ||||
| 11 | 7706P117-60 | Extrusion, Side-l | 1-4 |
|
- | ||||
| 12 | 7750P017-60 | Extrusion, Side-r | 5 |
|
- | ||||
| 12 | 7706P118-60 | Extrusion, Side-r | 1-4 |
|
- | ||||
| 13 | 7706P114-60 | Extrusion, Top | 1 |
|
- | ||||
| 14 | 7756P013-60 | Extrusion, Top Front | 1 |
|
- | ||||
| 15 | 7756P023-60 | Extrusion, Vent | 5 |
|
- | ||||
| 15 | 7756P006-60 | Extrusion, Vent | 1-4 |
|
- | ||||
| 16 | 7201P014-60 | Gasket, Housing | 1 |
|
- | ||||
| 17 | 7902P057-60 | Glass, Lamp Guard | 1 |
|
- | ||||
| 18 | 7106A012-60 | Hinge, Upper Door | 1 |
|
- | ||||
| 18 | 7106A019-60 | Hinge, Upper | 2 |
|
- | ||||
| 19 | 3413F002-23 | Insert, Broil Pan | 1 |
|
- | ||||
| 20 | 7701P071-60 | Handle, Door----na | 1 |
|
- | ||||
| 21 | 8009P011-60 | Lever, Latch | 1 |
|
- | ||||
| 22 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 23 | 8002P072-60 | Latch Assy. (Replaces: 8002P016-60) | 1 |
|
$ 306.52 | ||||
| 24 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 1 |
|
Immediately | $ 52.04 | |||
| 25 | 2618F053-51 | Panel, Side (rt) | 1 |
|
- | ||||
| 25 | 2618F054-51 | Panel, Side (lt) | 1 |
|
- | ||||
| 26 | 7801P005-60 | Rack | 1 |
|
- | ||||
| 27 | 7801P007-60 | Rack, Offset | 1 |
|
- | ||||
| 28 | 3804W034-51 | Retainer, Bottom | 1 |
|
- | ||||
| 29 | 3804F011-45 | Retainer | 1 |
|
- | ||||
| 30 | 3804F007-51 | Retainer, Insul-r | 1 |
|
- | ||||
| 31 | 3804F053-51 | Retainer,top | 1 |
|
- | ||||
| 32 | 3604F101-80 | Shield, Air | 1 |
|
- | ||||
| 33 | 3604F048-80 | Shield, Terminal | 1 |
|
- | ||||
| 34 | 3807F176-15 | Support, Broil Element | 1 |
|
- | ||||
| 35 | 3807F137-80 | Support | 1 |
|
- | ||||
| 36 | 7403P007-60 | Switch, Door Lock | 1 |
|
- | ||||
| 37 | 7403P063-60 | Switch, High Limit | 1 |
|
$ 156.41 |
