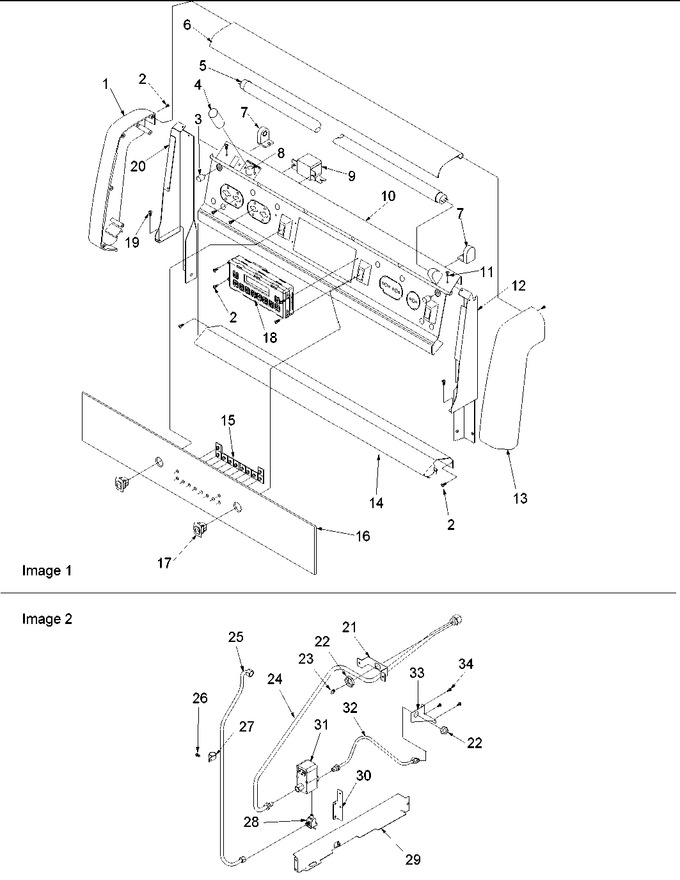

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	315844B		End Cap-glass Bkgd Lh		Appelez-nous	-
2	31750309		Screw, No.6-20 X .375 Pan Hd		Appelez-nous	-
3	Y0314643		Bumper, Rubber		Appelez-nous	-
4	0071920		Starter, Flourescent		Appelez-nous	-
5	WP95292		Lamp, Fluorescent   (Replaces: Y0315927)			Immediately	$ 121.45
6	31926801B		Cover, Light		Appelez-nous	-
7	Y0304559		Lamp Holder-floures		Appelez-nous	-
8	31785501		Socket, Starter (1 Piece)		Appelez-nous	-
9	Y0071869		Ballast		Appelez-nous	-
10	315839B		Mtg. Pnl, Bkgd Control		Appelez-nous	-
11	31750409		Screw, No.8-18 X 1/4 Ptrshd(blk)		Appelez-nous	-
12	315876B		Bkgd. Support-rh		Appelez-nous	-
13	315842B		End Cap-glass Bkgd Rh		Appelez-nous	-
14	31722704B		Shield, Bkgd Trim Heat		Appelez-nous	-
15	315850B		Button, Erc (10 Pack Strip)		Appelez-nous	-
16	31930901SS		Assy, Bkgd Glass/ovly		Appelez-nous	-
17	315858B		Switch, Spst		Appelez-nous	-
18	Y0315569		Erc3 (gas)		Appelez-nous	-
19	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
20	315877B		Bkgd. Support-lh		Appelez-nous	-
21	Y0315018		Brkt, Broil Orifice		Appelez-nous	-
22	31750116		Nut, Pal 3/4-16 X 1.062		Appelez-nous	-
23	31864901		Orifice, No.58 Lp				$ 25.98
23	31864801		Orifice, No.52 Nat		Appelez-nous	-
24	Y0316210		Tubing, Valve To Broil		Appelez-nous	-
25	31769901		Tubing Assy		Appelez-nous	-
26	31750308		Screw, No.6-32 X .375 Panhd(blk)		Appelez-nous	-
27	Y0091587		Cable, Clip Esm		Appelez-nous	-
28	0306428		Valve, Shutoff		Appelez-nous	-
29	Y0316216		Brkt, Dual Valve		Appelez-nous	-
30	Y0316789		Brk`t, Gas Valve		Appelez-nous	-
31	Y0316220		Valve, Gas				$ 167.19
32	Y0316791		Tubing, Orifice Assy		Appelez-nous	-
33	Y0316251		Brkt, Bake Venturi		Appelez-nous	-
34	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
NI	Y0316204		Harness, Bkgd Erc, Fllt		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
NI	M0282005		Nut, Hex .562   (Replaces: 31750113)				$ 7.07

    View Diagram in Separate Window       Print Part List
