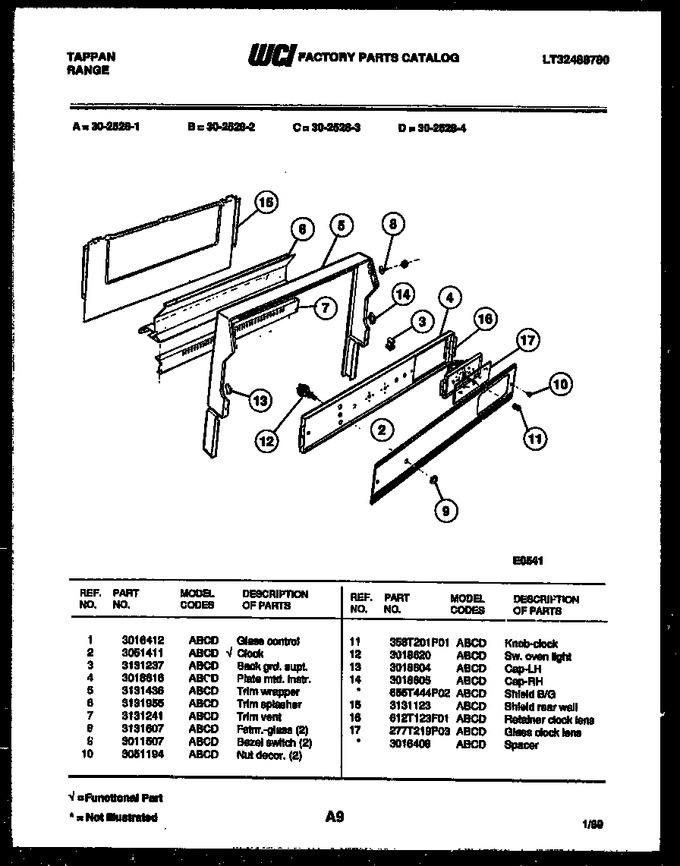

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016412 | Glass Control |
|
- | |||||
| 2 | 3051411 | Clock |
|
- | |||||
| 3 | 3131237 | Back Grd Supt |
|
- | |||||
| 4 | 3018616 | Plate-mtd Instr |
|
- | |||||
| 5 | 3131436 | Trim Wrapper |
|
- | |||||
| 6 | 3131955 | Trim-splasher |
|
- | |||||
| 7 | 3131241 | Trim-vent |
|
- | |||||
| 8 | 3131607 | Fstnr Glass (2) |
|
- | |||||
| 9 | 3011507 | Bezel - Switch (2) |
|
- | |||||
| 10 | 3051194 | Nut - Decor (2) |
|
- | |||||
| 11 | 358T201P01 | Knob, Clock |
|
- | |||||
| 12 | 3018620 | Sw. Oven Light |
|
- | |||||
| 13 | 3018604 | Cap-lh |
|
- | |||||
| 14 | 3018605 | Cap-rh |
|
- | |||||
| 15 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 16 | 612T123F01 | Retainer-clock Lens |
|
- | |||||
| 17 | 277T219P03 | Glass-clock Lens |
|
- | |||||
| *17797 | 3016408 | Spacer |
|
- | |||||
| 14A | 655T444P02 | Shield B/g (non-illustrated) |
|
- |
