SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Broiler Drawer Parts


06 - Burner, Manifold And Gas Control


07 - Body Parts

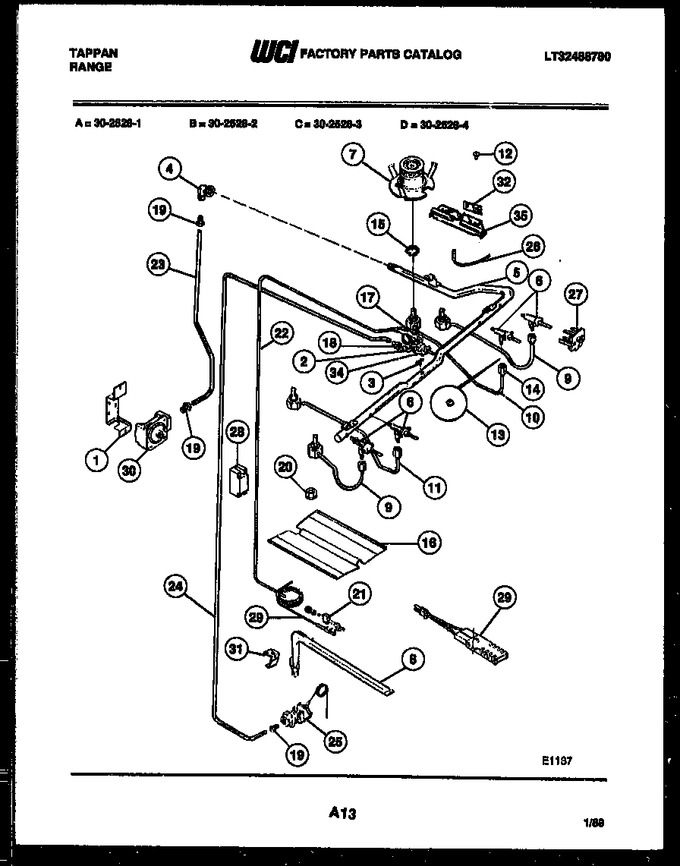

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131183		Brkt.-regul		Appelez-nous	-
2	722T073P01		Thermostat		Appelez-nous	-
3	3018601		Adapter-thermostat		Appelez-nous	-
4	215T013P01		Elbow		Appelez-nous	-
5	439T055P07		Elbow		Appelez-nous	-
6	3017542		Valve-3 Pos.		Appelez-nous	-
7	3011567		Burner Top Assy.		Appelez-nous	-
8	3131571		Burner, Oven		Appelez-nous	-
9	3131970		Burner-tube (lf Rf)		Appelez-nous	-
10	079T033H02		Burner, Tube		Appelez-nous	-
11	079T033H03		Burner Tube, Left Rear		Appelez-nous	-
12	3051420		Pop Rivet		Appelez-nous	-
13	3012358		Ferrule		Appelez-nous	-
14	3131148		Nut-compression		Appelez-nous	-
15	479T069P40		Nut Special		Appelez-nous	-
16	3131327		Baffle, Oven		Appelez-nous	-
17	3131404		Fitting, Loxit		Appelez-nous	-
18	3131403		Fitting, Loxit		Appelez-nous	-
19	3131261		Fitting, Loxit		Appelez-nous	-
20	479T069P03		Nut, Baffle		Appelez-nous	-
21	3018613		Pilot-oven		Appelez-nous	-
22	3018623		Tube-oven Pilot 3/16		Appelez-nous	-
23	3014477		Tube - Alum 3/8		Appelez-nous	-
24	3018624		Tube-alum. 3/8		Appelez-nous	-
25	3131405		Valve-safety		Appelez-nous	-
26	3012879		Igniter-top		Appelez-nous	-
27	695T225P02		Switch Igniter		Appelez-nous	-
28	3200332		Igniter-module		Appelez-nous	-
29	3934047		Igniter-oven		Appelez-nous	-
30	3018606		Control-regul		Appelez-nous	-
31	3018603		Brkt, Oven Burner Supt		Appelez-nous	-
32	3018617		Retainer, Igniter		Appelez-nous	-
34	695T220P01		Oven-igniter Switch		Appelez-nous	-
35	136T355W03		Channel Flush Tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
