02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts
05 - Blower And Drive Parts
06 - Burner, Igniter And Valve
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

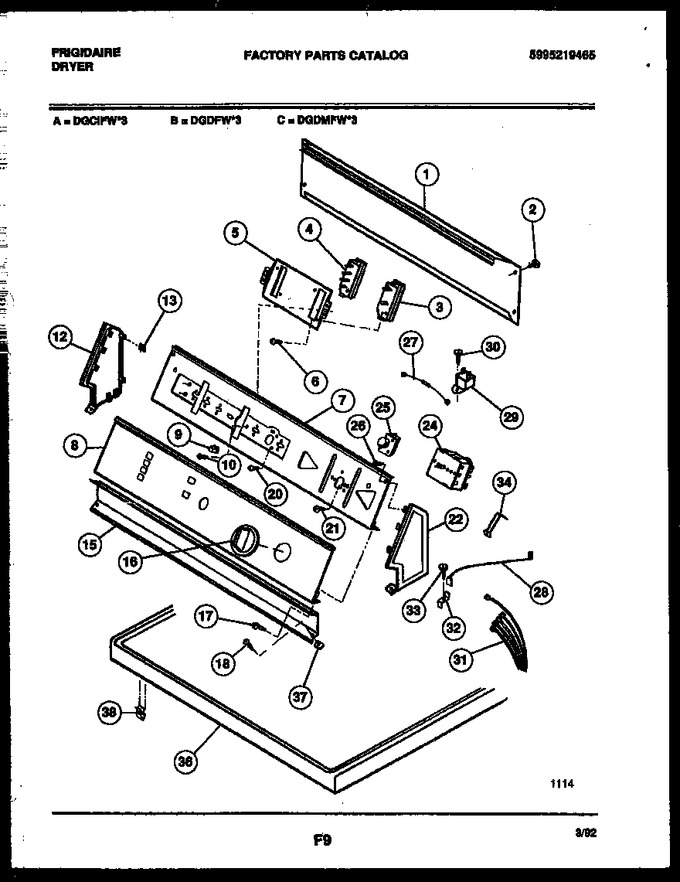

| 1 | 3201322 | Back Cover |
|
- | |||||
| 2 | 3015671 | Screw (4) |
|
- | |||||
| 3 | 08010818 | Switch-2 Pushbutton |
|
- | |||||
| 4 | 3201323 | Switch-4 Push Button |
|
- | |||||
| 5 | 3201324 | Bracket, Switch Support |
|
- | |||||
| 6 | 08010804 | Screw (4) |
|
- | |||||
| 7 | 3201325 | Control Mounting Bracket |
|
- | |||||
| 8 | 3201327 | Escutcheon |
|
- | |||||
| 9 | 08010807 | Pushbutton Switch (6) |
|
- | |||||
| 10 | 08004660 | Screw (3) |
|
- | |||||
| 12 | 3205874 | End Cap - L.h. |
|
- | |||||
| 13 | 08014350 | Clip, End Cap (8) |
|
- | |||||
| 15 | 3205875 | Trimplate, Lower |
|
- | |||||
| 16 | 08015693 | Timer Knob And Indicator Assy |
|
- | |||||
| 17 | 08010782 | Screw (3) |
|
- | |||||
| 18 | 3205820 | Screw (2) |
|
- | |||||
| 20 | 08001544 | Screw |
|
- | |||||
| 21 | 3161188 | Screw (2) |
|
- | |||||
| 22 | 3205876 | End Cap - R.h. |
|
- | |||||
| 24 | 3201335 | Timer |
|
- | |||||
| 25 | 5303212833 | Switch Start |
|
- | |||||
| 26 | 08010789 | Screw (2) |
|
- | |||||
| 28 | 3201385 | Ground Wire |
|
- | |||||
| 29 | 08004087 | Buzzer |
|
- | |||||
| 30 | 08010804 | Screw |
|
- | |||||
| 31 | 5303270877 | Harness |
|
- | |||||
| 32 | 5379171000 | Terminal |
|
- | |||||
| 33 | 08001689 | Screw |
|
- | |||||
| 34 | 08014349 | Ground Strap |
|
- | |||||
| 36 | 5303273261 | Panel-top-white |
|
- | |||||
| 37 | 3281192 | Clip (2) |
|
- | |||||
| 38 | 3205821 | Spring Catch (2) |
|
Immediately | $ 35.44 | ||||
| 31A | 3281103 | Wire, Tie Harness (3) (non-illustrated) |
|
- |
