02 - Cabinet And Component Parts


03 - Door Parts


04 - Console And Control Parts


05 - Motor And Blower Parts


06 - Burner, Igniter And Valve

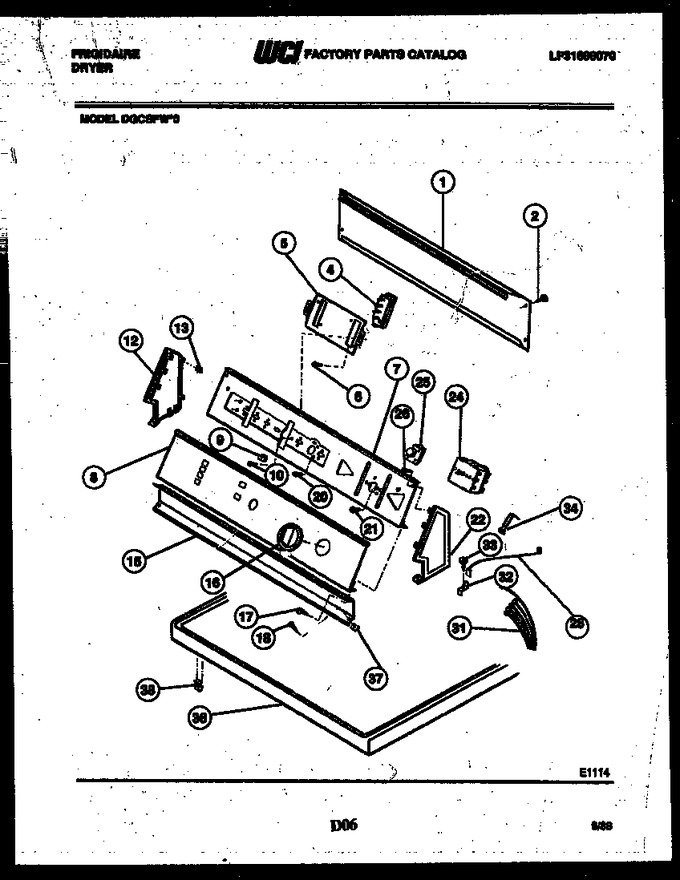

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3201322		Back Cover		Appelez-nous	-
2	3015671		Screw (4)		Appelez-nous	-
4	3201323		Switch Pushbutton (4)		Appelez-nous	-
5	3201324		Bracket, Switch Support		Appelez-nous	-
6	08010804		Screw (2)		Appelez-nous	-
7	3201326		Control Mounting Bracket		Appelez-nous	-
8	3201465		Escutcheon		Appelez-nous	-
9	08010807		Button Pushbutton Switch		Appelez-nous	-
10	08004660		Screw (4)		Appelez-nous	-
12	08010783		End Cap Rh		Appelez-nous	-
13	08014350		Clip, End Cap (8)		Appelez-nous	-
15	3201333		Trimplate Lower		Appelez-nous	-
16	08015693		Timer Knob & Indicator Assembly		Appelez-nous	-
17	08010782		Screw (3)		Appelez-nous	-
18	08011318		Screw (2)		Appelez-nous	-
20	08001544		Screw		Appelez-nous	-
21	08006636		Screw (2)		Appelez-nous	-
22	08010787		End-cap Rh		Appelez-nous	-
24	3201466		Timer		Appelez-nous	-
25	1132293		Push To Start Switch		Appelez-nous	-
26	08010789		Screw (2)		Appelez-nous	-
28	3201340		Ground Wire		Appelez-nous	-
31	3201467		Harness		Appelez-nous	-
32	08002341		Terminal		Appelez-nous	-
33	08001689		Screw		Appelez-nous	-
34	08014349		Ground Strap		Appelez-nous	-
36	3201345		Top Panel White		Appelez-nous	-
37	08001912		Clip (2)		Appelez-nous	-
38	3281170		Catch Spring (2)		Appelez-nous	-
*25152	3161259		Screw-switch To Mounting Bracket				$ 6.83
*25152	3201468		Switch Fabric Selector		Appelez-nous	-
*25152	08014340		Rotary Knob		Appelez-nous	-
31A	3281103		Wire, Tie Harness (3) (non-illustrated)		Appelez-nous	-
