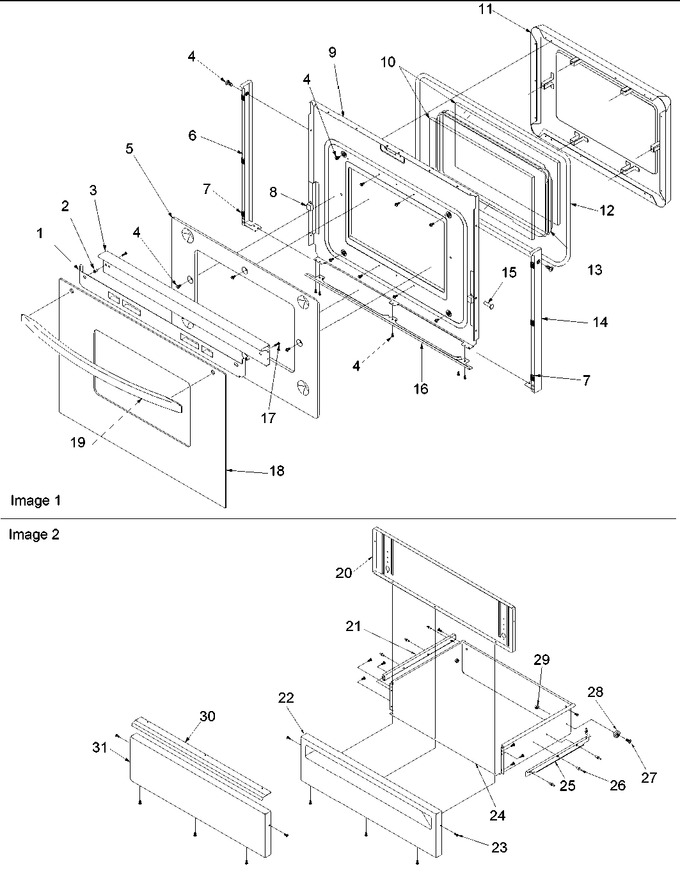

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31833201		Assy, Glass Heat Shield		Appelez-nous	-
2	Y0309461		Bushing, Handle (nal)		Appelez-nous	-
3	31782104W		Trim, Door Top		Appelez-nous	-
4	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
5	Y0309068		Shield, Heat		Appelez-nous	-
6	309523W		End Cap, Door (lt-wht)		Appelez-nous	-
7	0043184		Tape, Foam		Appelez-nous	-
8	Y0309627		Bumper, Rubber		Appelez-nous	-
9	317023CG		Backer, Oven Door		Appelez-nous	-
10	Y0317019		Glass, Door		Appelez-nous	-
11	317021CG		Pad, Oven Door		Appelez-nous	-
12	31715902		Gasket, Oven Door (67``)				$ 13.97
13	Y0317020		Frame, Window Pack		Appelez-nous	-
14	309522W		End Cap, Door (rt-wht)		Appelez-nous	-
15	Y0302648		Rivet, Pop		Appelez-nous	-
16	309460W		Support, Glass (wht)		Appelez-nous	-
17	31750525		Screw, 10-32 X 1.250`` Pan Hd		Appelez-nous	-
18	316238W		Glass, Oven Door (wht)		Appelez-nous	-
19	31689503W		Handle, Oven Door (wht)		Appelez-nous	-
20	31927401B		Liner, Drawer Panel (blk)		Appelez-nous	-
21	31746103		Track, Storage Drw L.h.		Appelez-nous	-
22	309176W		Panel, Drawer (wht)		Appelez-nous	-
24	31746202W		Wrapper, Storage Drw		Appelez-nous	-
25	31746104		Track, Storage Drawer R.h.		Appelez-nous	-
27	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
28	31733401		Roller, Drawer				$ 5.75
29	WP3400029		Nut, Hex Keps No.10-32   (Replaces: 31750103)			Immediately	$ 6.98
NI	Y0309772		Insulation,oven Door		Appelez-nous	-
NI	Y0309434		Label, Cleaning Caution Fr/eng		Appelez-nous	-
